Gree GMV6 DC Inverter VRF Units Service Manual
242
5.1.2 Removing the Cover of Electrical Appliance Box
(1) Use a screwdriver to remove the screw marked by 1 on ⑤⑥ electrical appliance box
(2) Remove ⑤⑥ electrical appliance box from the unit

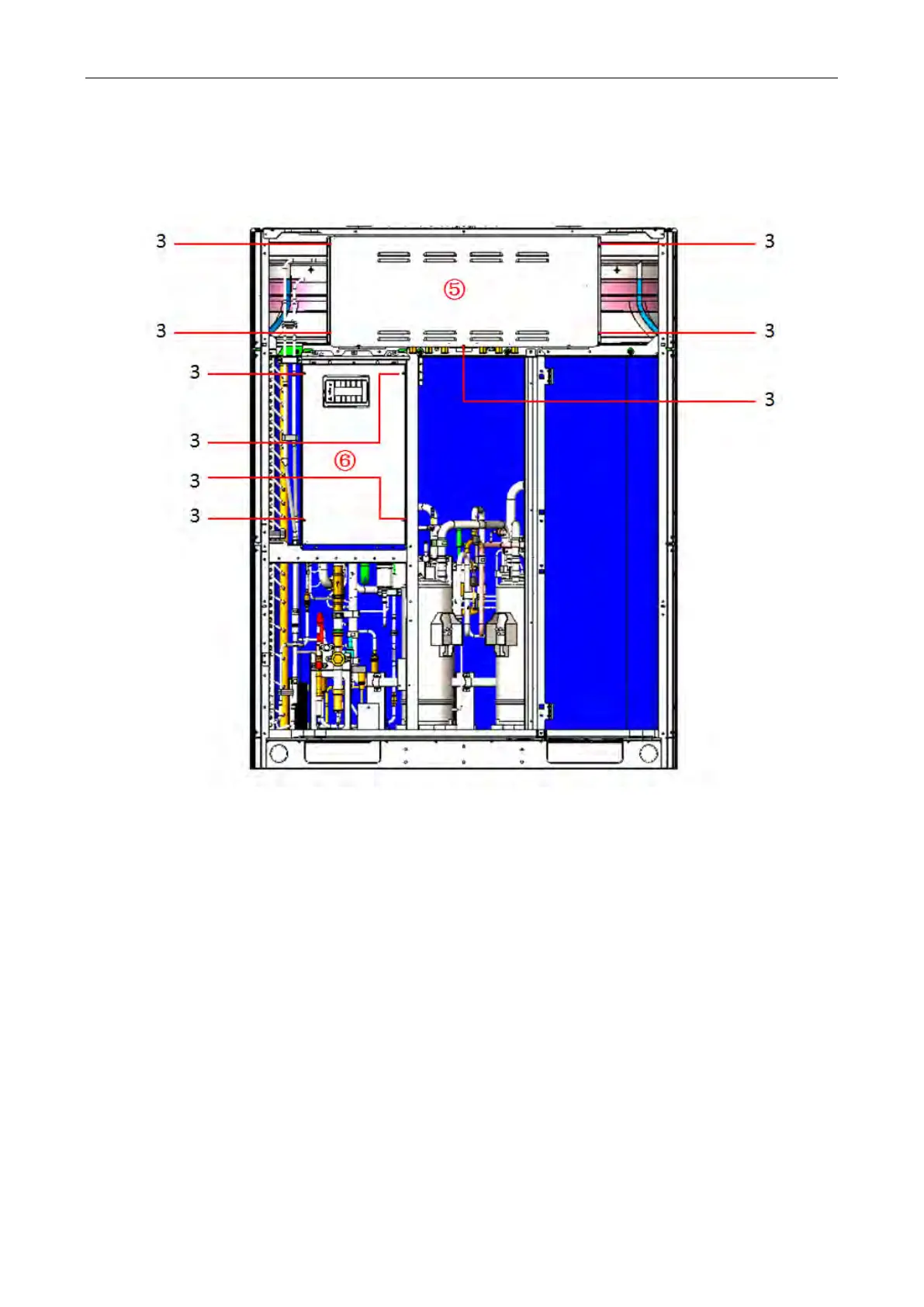

3 - Screw; ⑤ - Upper electrical appliance cover; ⑥ - Bottom electrical appliance cover.
5.2 Removing the ODU Main Board
Preparations
(1) Use the Power circuit breaker to switch off the Power of the GMV6 VRF system.
(2) Remove the unit’s upper and bottom panels by referring to 5.1.1 Removing the Unit Panel.
(3) Remove the cover of electrical appliance box by referring to 5.1.2 Removing the Cover of
Electrical Appliance Box.
To Next Page
