ascon Gammadue Series User Manual

5
1- Installation

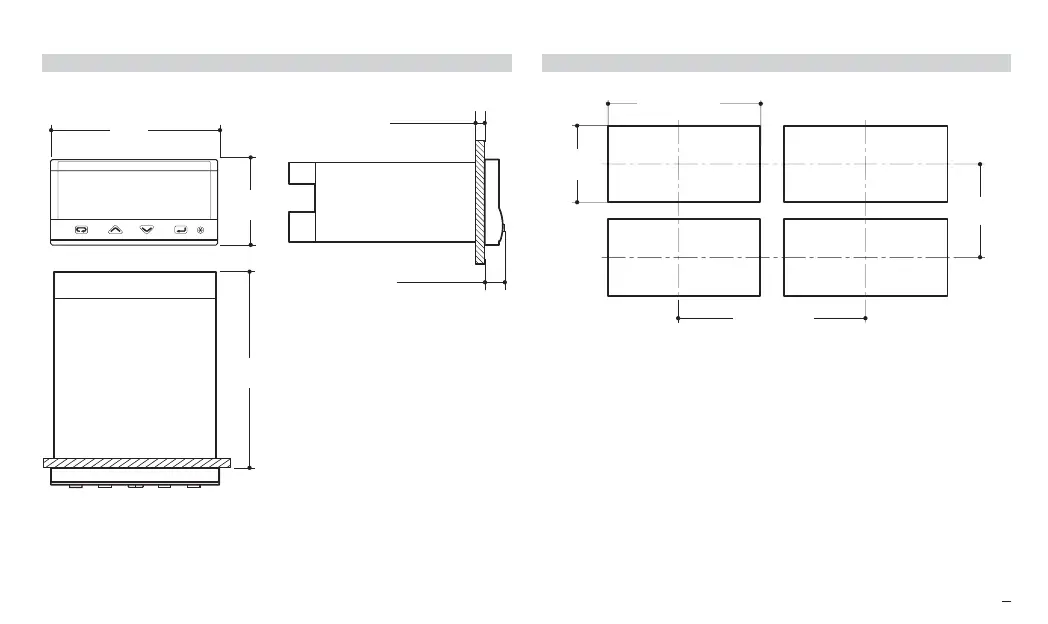

1.2 DIMENSIONAL DETAILS 1.3 PANEL CUT-OUT
48 mm
1.89 in
110 mm
4.33 in
10 mm max.
0.39 in max.
96 mm
3.78 in
10 mm max.
0.39 in max.
45
+0.6
mm
1.78
+0.023
in
65mm min.
2.56 in min.
92
+0.8
mm
3.62
+0.031
in
113 mm min.
4.45 in min.
