▶ Make sure that the supply voltage corresponds to the rated product voltage.
▶ The product must be installed by a qualified electrician in accordance with the National
Electrical Code and corresponding local codes.
▶ If the product is damaged, do not use it.
▶ All wiring connections should be capped with UL approved wire connectors.
▶ This fixture is intended to be connected to a properly installed and grounded UL listed
junction box with suitable strain relief means for power cord. The junction box is not
included, should be purchased separately.
IMPORTANT SAFETY INFORMATION:
INSTALLATION GUIDE
Please read all the instructions below before installation.

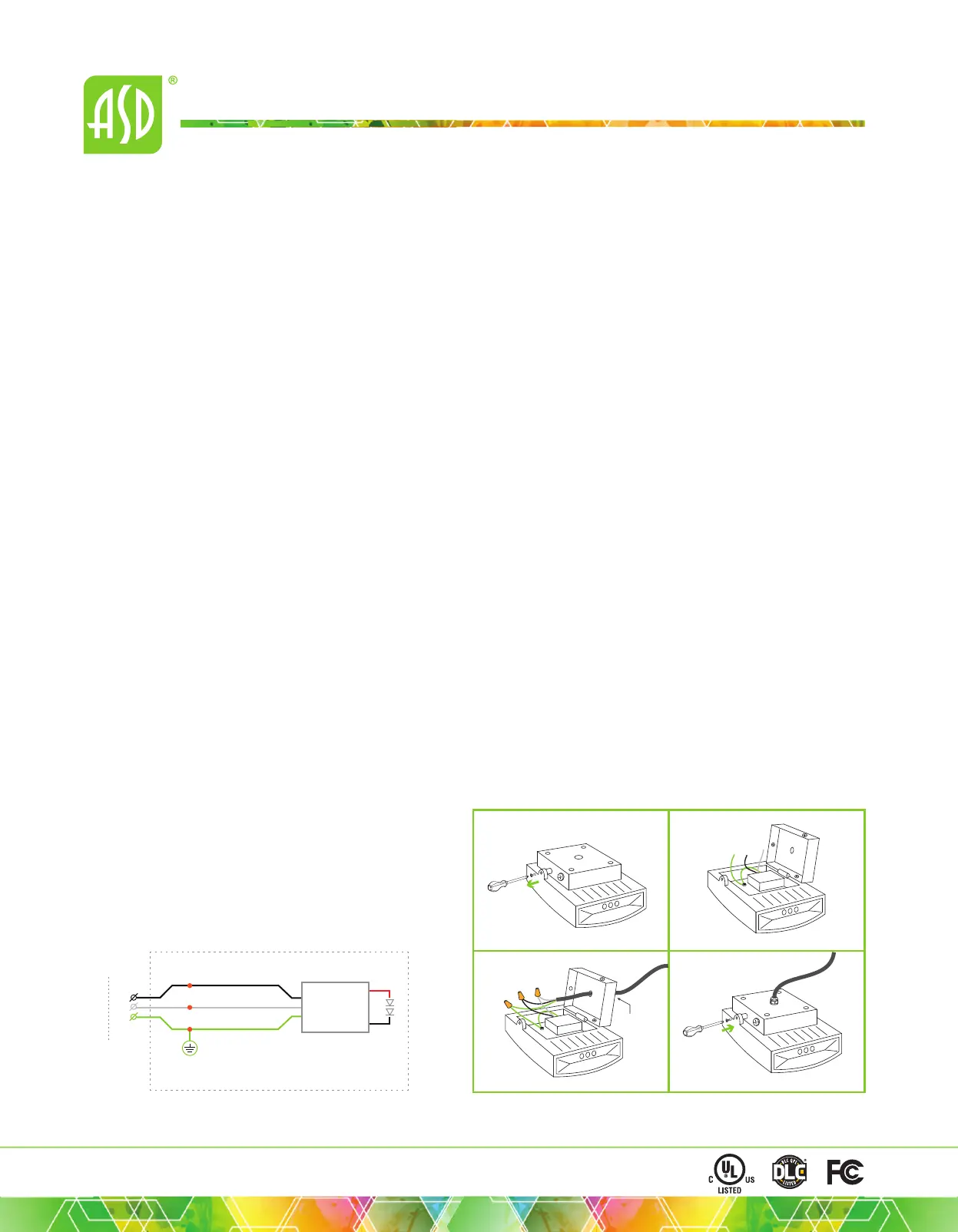

ELECTRICAL SCHEMATIC DIAGRAM
+
-
DRIVER
L
N
G
L
N
G
L (live/hot)
connect black
Ground
connect green
FIXTURE
N (neutral)
connect white
Power connector
120~277V 50/60 Hz
INSTALLATION STEPS
1. Remove screw.
2. Open the cover.
3. Affix gasket ¾ (gasket is not included
and should be purchased separately).
Insert power cord and connect wires
as in the picture below.
4. Close the cover and tighten screw.
2.1.
4.3.
gasket
WebSite: www.asd-lighting.com Fax: 339-502-8970
Phone: 781-739-3977E-mail: info@asd-lighting.com
LED COB Cut-Off Wallpack
Standard Series
