Ashly Protea 3.6SP - 10 Block Diagram; D Mute

Operating Manual - PROTEA 4.8SP and 3.6SP System Processors
ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103
Phone: (585) 872-0010 Fax: (585) 872-0739
Toll Free (800) 828-6308 www.ashly.com
Copyright 2012 by Ashly Audio Corporation. All rights reserved worldwide.
Protea 4.8SP and 3.6SP R3 0812 Printed in USA
A/D
A/D
Input
Mute
Input
EQ
Input
Meter
LEDs
Input Channels A - D
-40 to +12dB
Input
Gain
6 Bands of
Parametric,
1st Order LS,
2nd Order LS
1st Order HS,
or
2nd Order HS
Input
Clip
Indicator
Input
Delay
0-682ms
Output
EQ
4 Bands of
Parametric,
1st Order LS,
2nd Order LS
1st Order HS,
or
2nd Order HS
-40 to +12dB
Output
Clip
Indicator
0-21ms
Output
Source
- A -
- B -
- C -
- D -
Any
Input
Combination
Xover
HPF/LPF
12dB BWorth
12dB Bessel
12 dB Linkwitz
18dB Bessel
18dB Bworth
24dB Bworth
24dB Bessel
24dB Linkwitz
48dB Bworth
48dB Bessel
48dB Linkwitz
Output
Delay
Output
Gain/
Phase
Invert
Output
Limiter
Output
Mute
Limiter
Threshold
LED
Output
Meter
LEDs
D/A
Output Channels 1 - 8

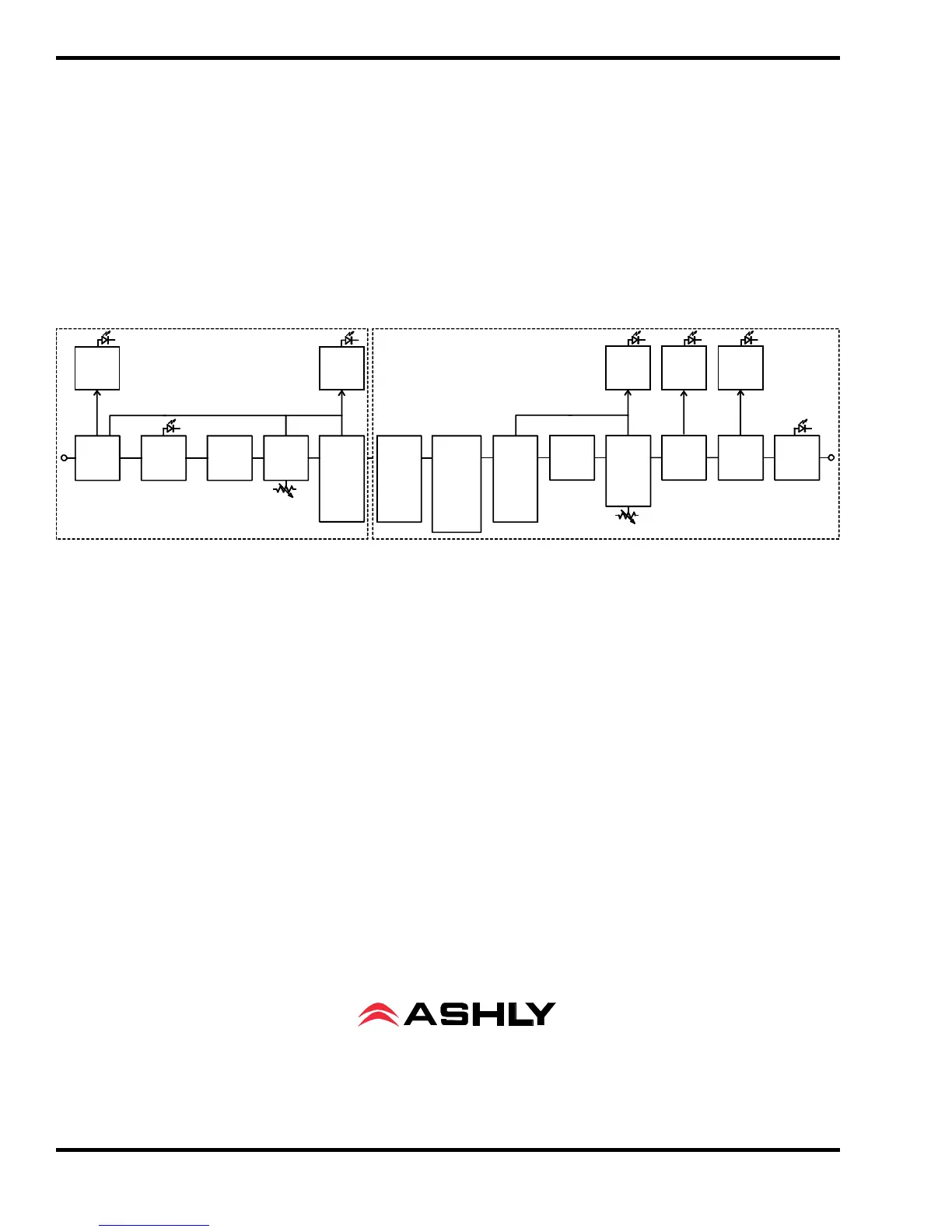

Block Diagram
