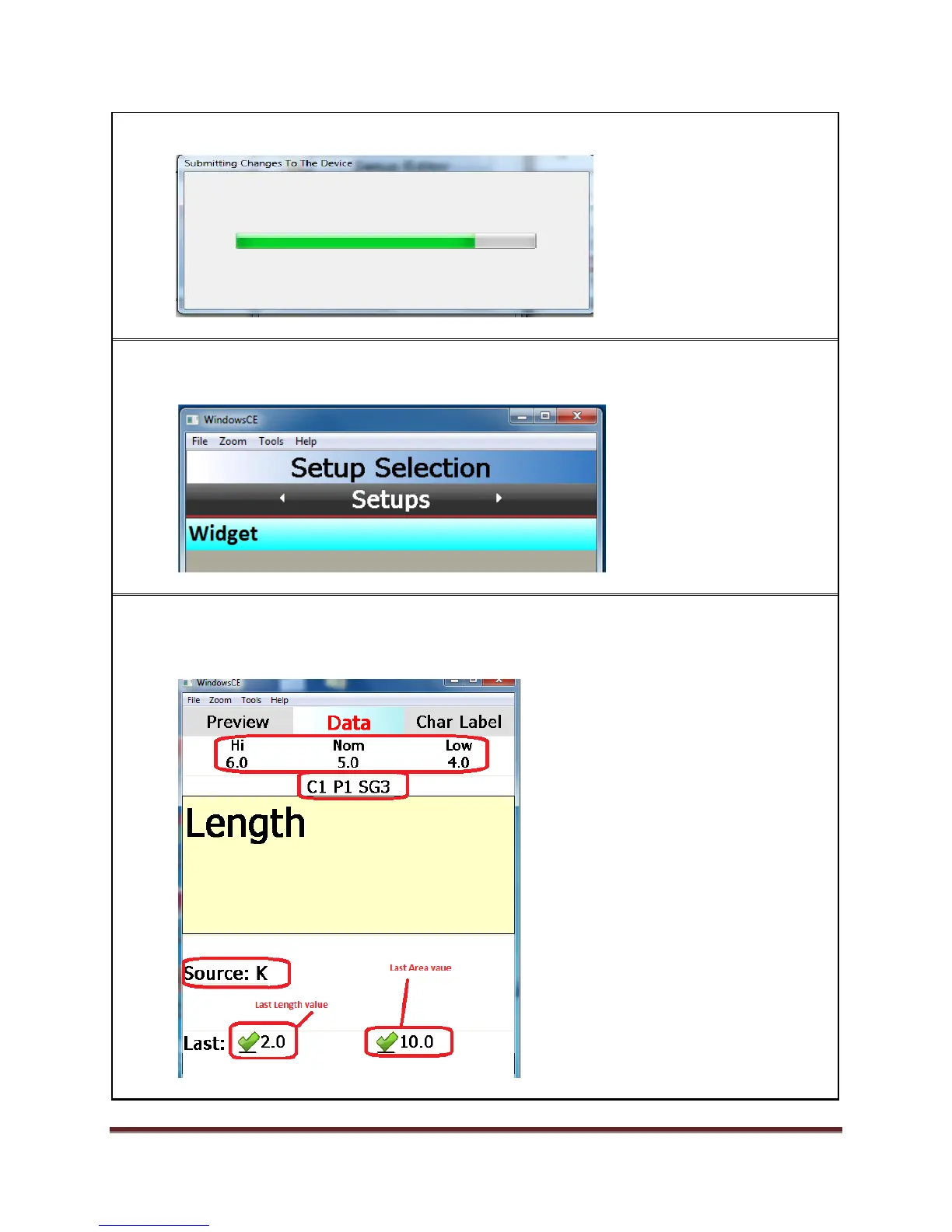

17. The setups and gage suites are uploaded to the 600. Unplug the 600.
18. On the 600, with Setup highlighted, press Enter. The Caliper setup now shows. Press Enter
to select it.
19. Note the specs. Put in a value between 4 and 6 for Length and press Enter. Enter a value
between 1 and 3 for Width and press Enter. Note that after typing in the width, it says
Wait! Autoscan while it calculates the Area. Then it brings you back to Length.
