Rev 3 Page 37

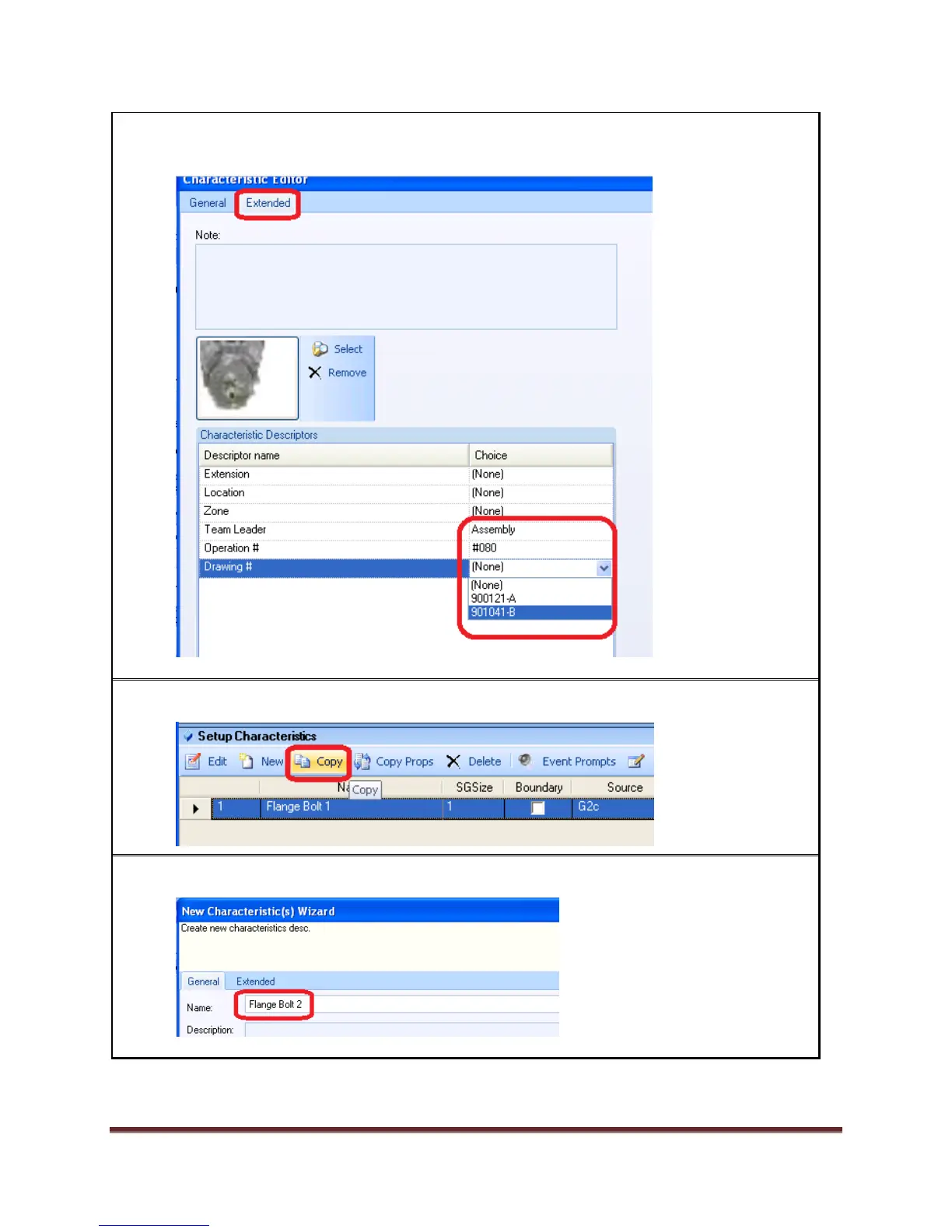

6. Once again, edit Flange Bolt 1 and open the Extended tab. Select the Characteristics
Descriptors for Team Leader, Operation # and Drawing # as shown and save the setup.
7. Select Flange Bolt 1 and click Copy. This will copy the characteristic.
8. Rename the copy Flange Bolt 2 and click OK, save the setup.
