Rev 3 Page 41

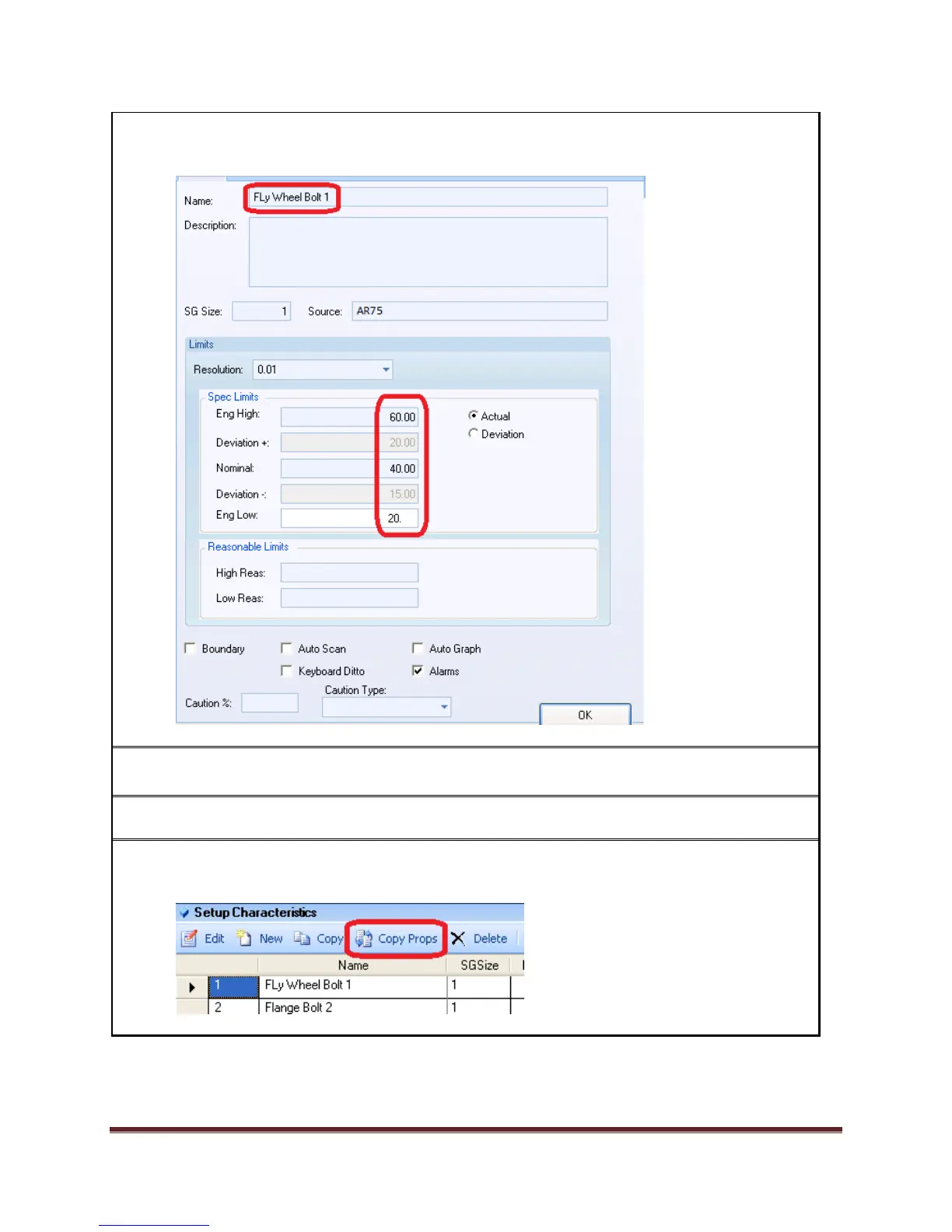

19. Edit Flange Bolt 1 and rename it to Fly Wheel Bolt 1. Change the spec limits as shown and
click OK. Save the Setup.
20. Edit Fly Wheel Bolt 1 and select an image (see Step 3). Save the setup.
21. Configure the characteristic descriptors as before (see Step 4). Save the setup.
22. Select Fly Wheel Bolt 1 and click Copy Props. See screen shot for selection .Click OK and
save the setup.
