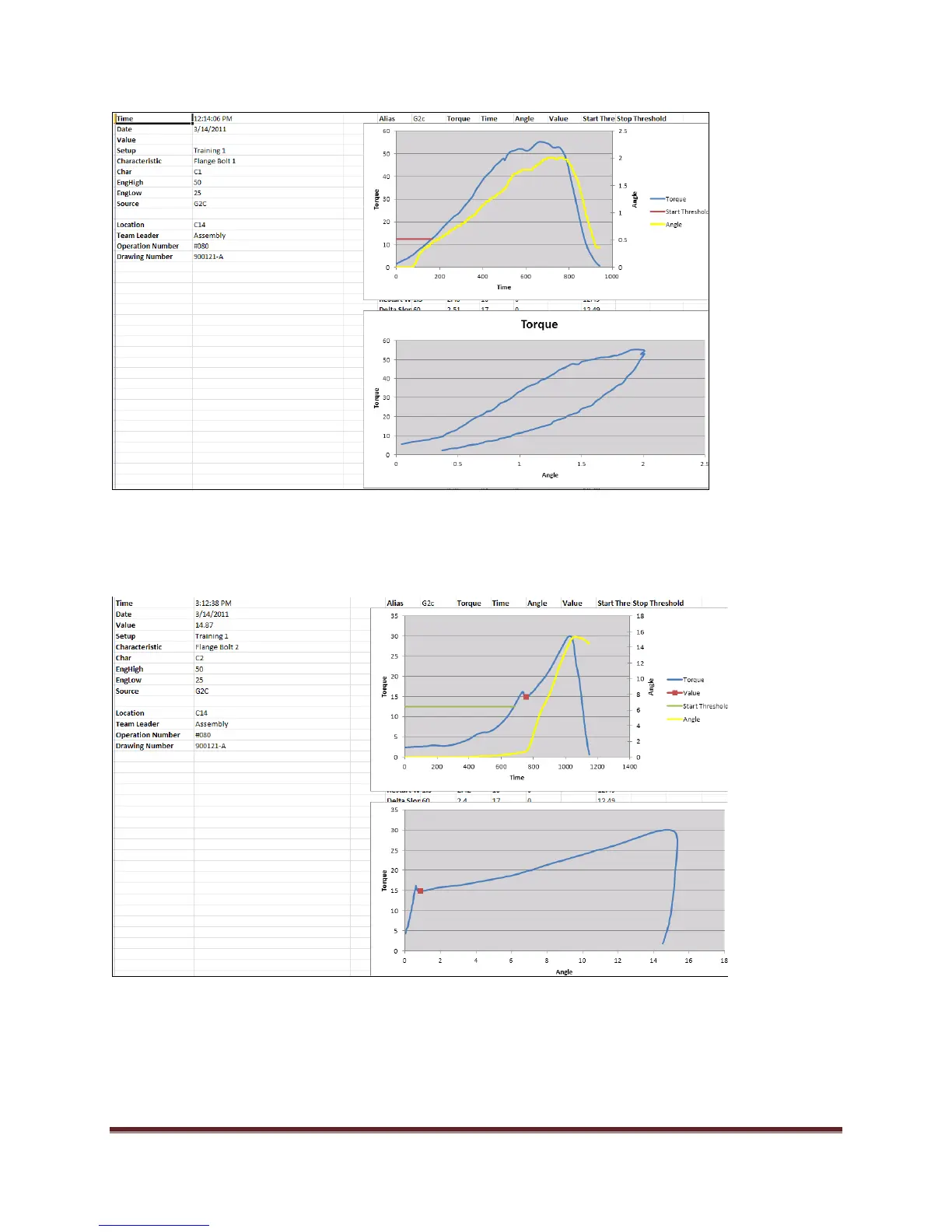

No reading was captured with this curve (the value column is blank). Because of the slight angular
rotation, the torque and the angle curves follow the same path. Notice how closely the flex release path
followed the path of the initial rise.
This curve should trigger a spec limit violation as the value is below the lower spec limit.
