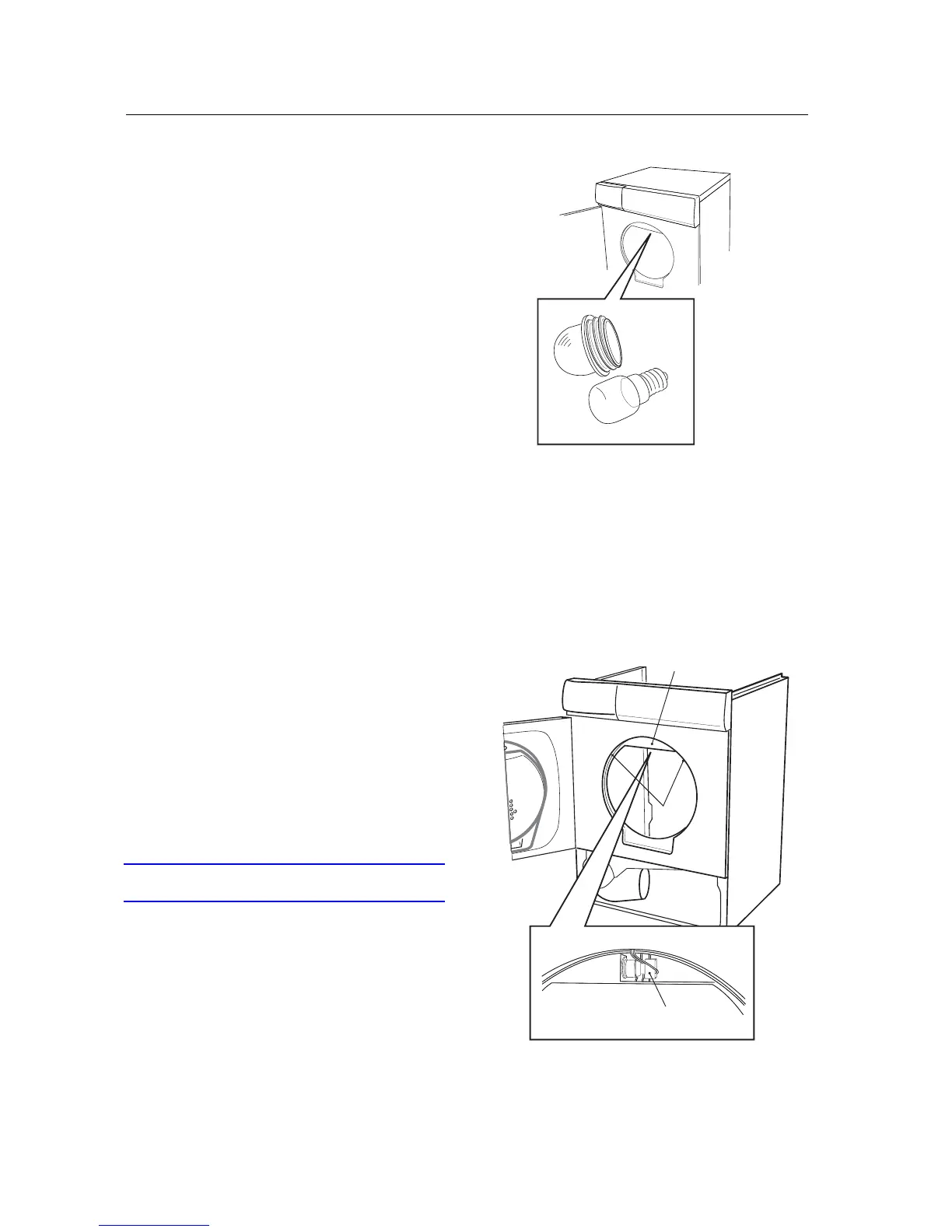

Changing the lamp/glass
1. Open the front door.
2. Unscrew the lamp glass.
3. Change the lamp.
4. Screw the lamp glass back on.
5. Close the front door.
Changing the lamp socket
1. Remove the drum in accordance with the sec-
tion "Drum - removing...".
2. Unscrew the two upper screws that secure the
front frame.
3. Remove the lamp housing cover.
4. Remove the lamp socket.
5. Remove the wiring from the old lamp socket
and connect it to the new socket.
IMPORTANT
Ensure the wiring connections are correct.
6. Install the lamp housing cover.
7. Secure the front frame.
8. Install the drum in accordance with the sec-
tion "Drum - installation...".
