Asko T711 - Exhaust Duct Connection; Rear Outlet Exhaust Duct; Side Outlet Exhaust Duct

Page 4
Height 33-1/2”–34-1/2 (850–876 mm)
Width 23-7/16” (595 mm)
Plus exhaust hose connection
Depth T761/T781: 23-7/16" (595 mm)
T711/T721/T731: 24-7/16” (620 mm)
Weight 86 lbs (39 kg)
Drum material Stainless Steel
Read these instructions carefully and completely before
you install the machine. The installation should be
carried out by a qualified person who is familiar with all
local codes and ordinances for electrical and plumbing
connections.
SPECIFICASPECIFICA
SPECIFICASPECIFICA
SPECIFICA
TIONSTIONS
TIONSTIONS
TIONS
INSTINST
INSTINST
INST
ALLAALLA
ALLAALLA
ALLA
TION INSTRTION INSTR
TION INSTRTION INSTR
TION INSTR
UCTIONSUCTIONS
UCTIONSUCTIONS
UCTIONS
Outer casing Stove-enamelled hot-dipped
galvanized steel
Power requirement 2800 watts (T711: 3300 watts)
For connection Single-phase, 230 V, 30 Amp
Internal fuse 15 amp. (T711: no fuses)
Heating element 2500 watts (T711: 3000 watts)
NOTE: Cosmetic damage must be reported to your
dealer within five days from the date of pur-
chase. After unpacking the dryer, thoroughly
check the unit for cosmetic damage.
NOTE: You will need to purchase a UL-CSA-approved
4-inch ridged metal exhaust duct.
The dryer is delivered with the stub pipe attached to the
rear exhaust outlet, but the exhaust duct can be attached
to either the right or left exhaust outlet.
CONNECTING CONNECTING
CONNECTING CONNECTING
CONNECTING
THE EXHATHE EXHA
THE EXHATHE EXHA
THE EXHA
UST DUCT UST DUCT
UST DUCT UST DUCT
UST DUCT
TT
TT
T
O O
O O
O
THE DRTHE DR
THE DRTHE DR
THE DR
YER YER
YER YER
YER
(T711/T731/T761)(T711/T731/T761)
(T711/T731/T761)(T711/T731/T761)
(T711/T731/T761)
CONNECTING THE EXHAUST DUCT TO
THE REAR OUTLET
To connect the exhaust duct to the rear outlet, follow the
steps below:
1. Push the duct onto the stub pipe and secure it with a
clamp.
2. With the duct attached, insert the stub pipe into the
hole. It should snap into place.
3. After you push the dryer into place, check for kinks
in the duct.
NOTE: Excessive duct length and too many bends can
impede drying performance. We recommend
that you cut off any excess exhaust duct and
run the duct with as few bends as possible. Make
any necessary bends as gentle as possible.

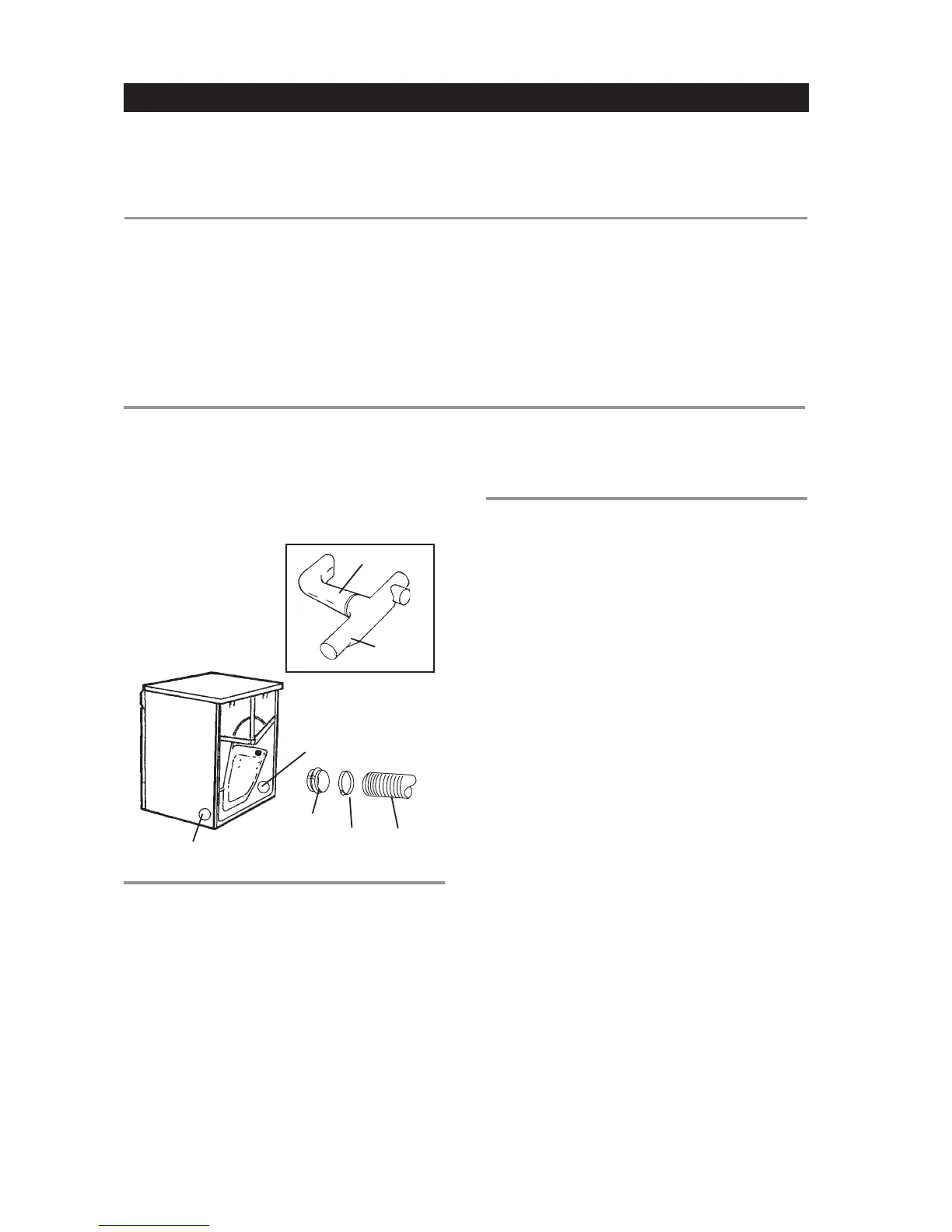

Side Exhaust Outlet
Rear Exhaust Outlet
Stub
Clamp Duct
NOTE: Maximum duct length of 22 feet is allowed.
Subtract 4 feet of duct for each 90° elbow.
CONNECTING THE EXHAUST DUCT TO
THE LEFT OR RIGHT SIDE OUTLET
To connect the exhaust duct to the left or right side outlet,
follow the steps below:
1. Using a flathead screw-driver, turn the exhaust outlet
cover you plan to use to the right or left to align the
tabs holding the cover in place.
2. Remove the exhaust outlet cover.
3. Remove the stub pipe from the rear exhaust outlet
and place it in the outlet you plan to use.
4. Push the duct onto the stub pipe and secure it with a
clamp.
5. With the duct attached, insert the stub pipe into the
hole. It should snap into place.
6. After you push the dryer into place, check for kinks
in the duct.
7. Use the exhaust outlet cover you removed from the
to cover the rear exhaust outlet.
WARNING!
To reduce the risk of fire, this appliance must be
exhausted OUTDOORS or the equivalent.
Never cover the end of the dryer stub or exhaust
duct with anything to catch lint, except for UL
approved vent basket.
Vent
T-Tube
ASKO dryers have a
“T-style” exhaust vent
that allows you to
connect the duct on the
rear or on the left or
right side.
(not supplied)
