REAR BRAKE DRUM (eS1 - eS2)

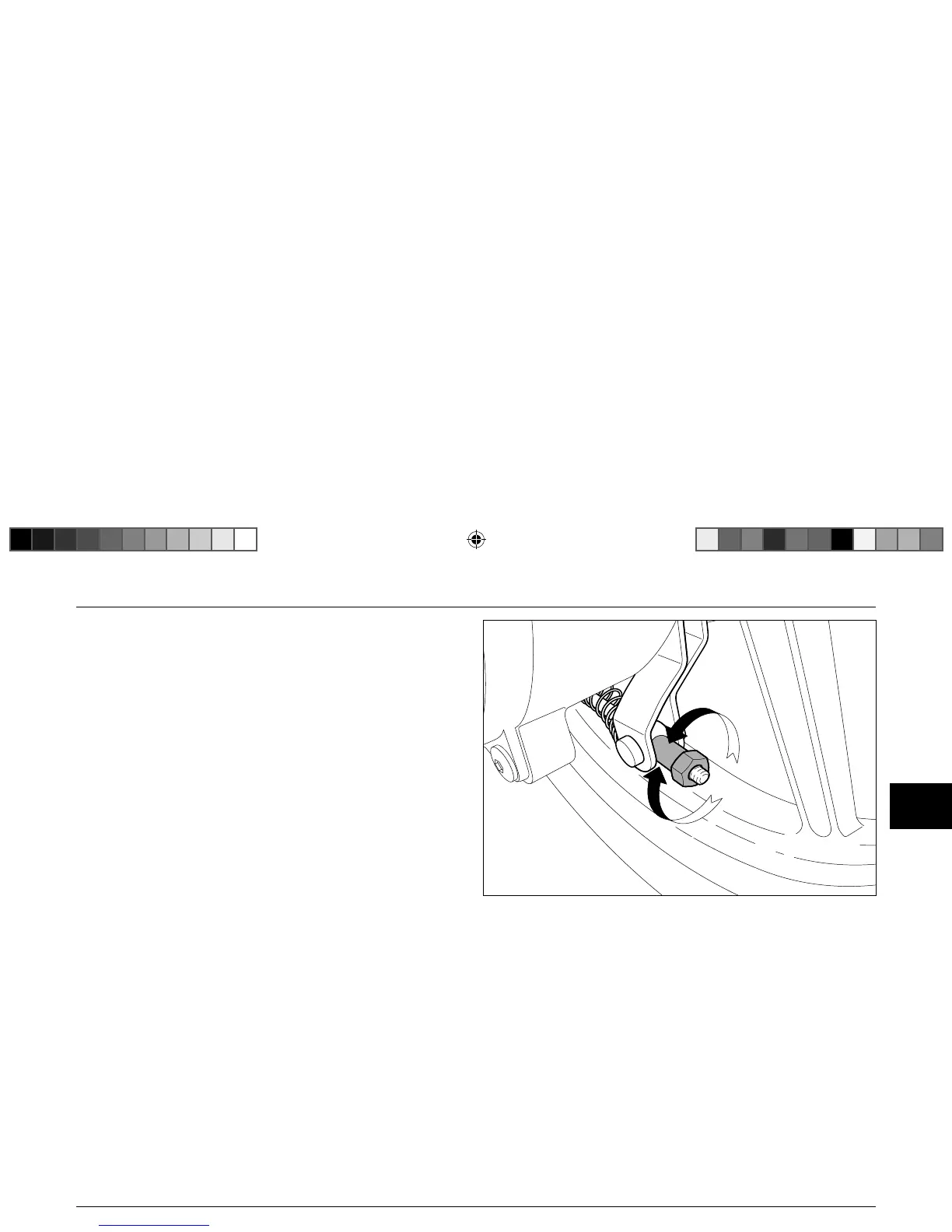

To adjust rear brake act on the nut as shown.
Tightening the nut, free play of the control lever
decreases and braking action increases.
Conversely, loosening the nut, free play of the control
lever increases and braking action decreases. After
adjustment, with the brake control lever in rest position,
check that the wheel turns freely.
Effective braking action should begin after
approximately 1/3 of the brake lever stroke.
REAR DRUM BRAKE WITH COMBINED FUNCTION
(eS3 only)
The scooter model eS3 uses the dual braking:
actuating the rear brake automatically also activates
the front brake.
The distribution has prevalence on the rear and the
adjustment of the rear adjusting nut affects both
wheels.
