V400 – Installation Guide
U-0398-0607.doc – Issue: 03 complete, approved
Page 3 of 24
1 Installation

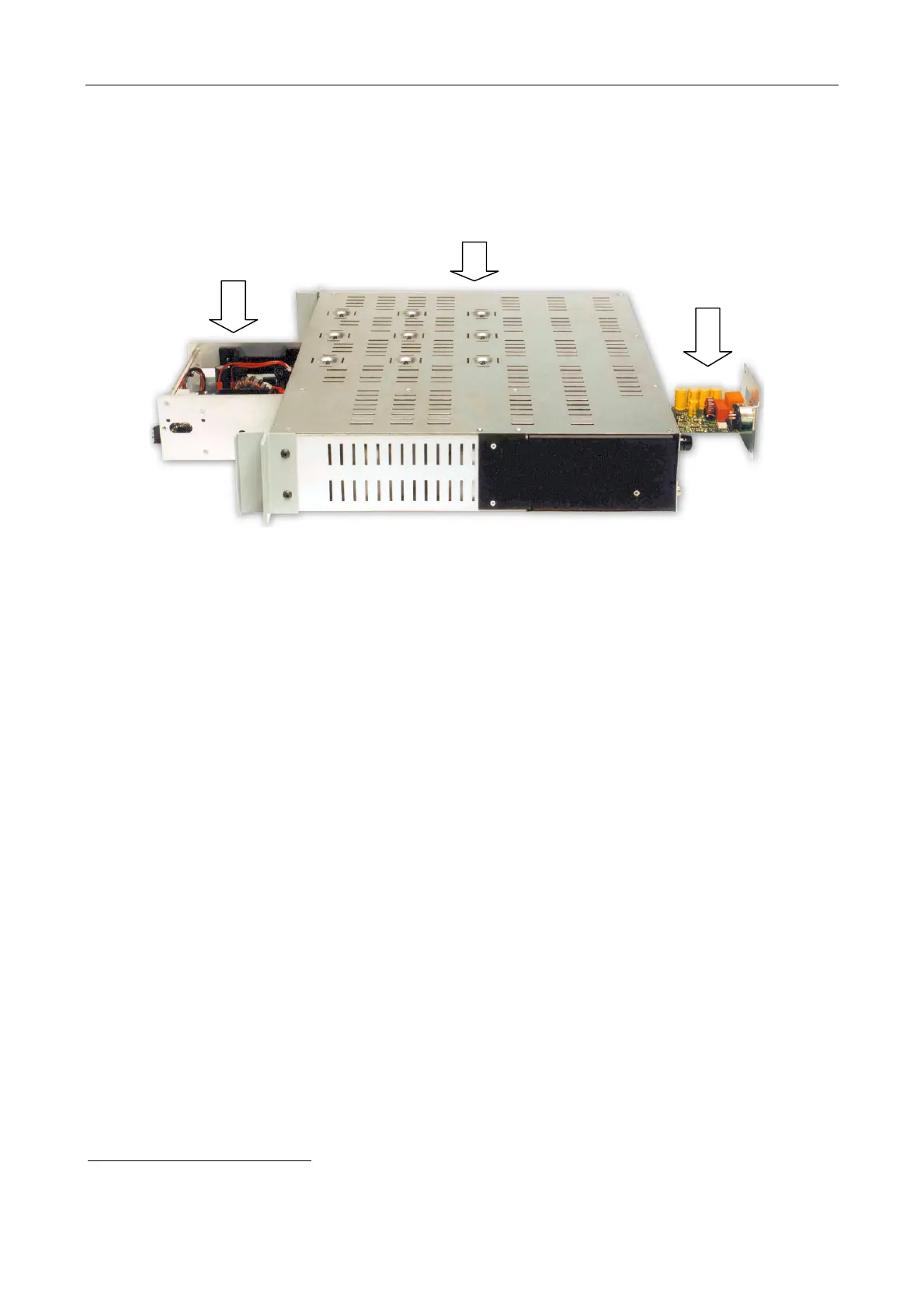

FRAME
AMPLIFIER MODULE
INTERFACE CARD
Technical Specification Summary
Supply Voltage (European standard) ............................................................ 230 V AC ±10% / 50-60Hz / T6.3A L 250 V fuse
See Note
1
regarding performance when on 230 V mains supply
Inrush Current (worst case)........................................................................................................................................ 24.2 A
Maximum AC Power Consumption...............................745 VA (V400 fully configured and all amplifier modules delivering
100 V 1 kHz sinewave into rated resistive loads)
DC Supply Voltage...........................................................21 to 28 V (from nominal 24 V lead acid battery pack) / T25A fuse
Quiescent DC Current (no amplifiers, @ 24 V supply) ................................................................................................. 55 mA
Maximum DC Current Consumption ............................................................... 6.25 A per 1 x M100 100 W Amplifier Module
12.5 A per 1 x M200 200 W Amplifier Module
25 A per 1 x M400 400 W Amplifier Module
(21 V supply, modules delivering 100 V 1 kHz sinewave into rated resistive loads)
Audio Input.............................................................................................. up to four 0 dBu sensitivity balanced audio inputs
Audio Output .................................................................................................... up to four 100 V RMS relay isolated outputs
Auxiliary DC Supply Output ..........................21 V to 38 V depending on AC or DC supply, and battery conditions / T1A fuse
Audio-CAN Bus .....................................................................................................................up to 63 amplifier mainframes
Temperature....................................................................................−20°C to +55°C (storage) / −10°C to +55°C (operation)
Humidity Range / Ingress Protection...............................................................................0% to 95% non-condensing / IP20
Dimensions (H x W x D) ............................87 mm x 437 mm x 410 mm (excluding handles) / 2U height, 19” rack mounting
87 mm x 485 mm x 445 mm (including handles)
Weight..............................................................................................................................................12 kg (V400 frame only)
18.4 kg (max, frame fitted with 4 x M100)
1
ASL amplifiers are specified to deliver their rated power at the lowest battery voltage (21 V). However, on 230 V mains power they
can produce full output, with normal programme material, into loads 25% greater than those specified. In these conditions a fully
populated V400 can deliver full output with 500 W of load connected.
