Aspect DVR-2M-4-2 User Manual

DIGITAL VIDEO RECORDER QUICK START GUIDE
1
920x1080 display resolution).
5
ALARM IN
Alarm input terminals (AI1~A16
,
GND).
6
RS
-
485
Communications port for connecting
PTZ camera with
RS
-
485 support
7
ALARM OUT
Alarm relay output port (AO1~8,
COM).
8
POWER INPUT
Power input for the NVR.
9
AUDIO IN/OUT
RCA connectors for the connection of
microphones and speakers
10
USB
For connecting USB devices such as a
mouse or back up device

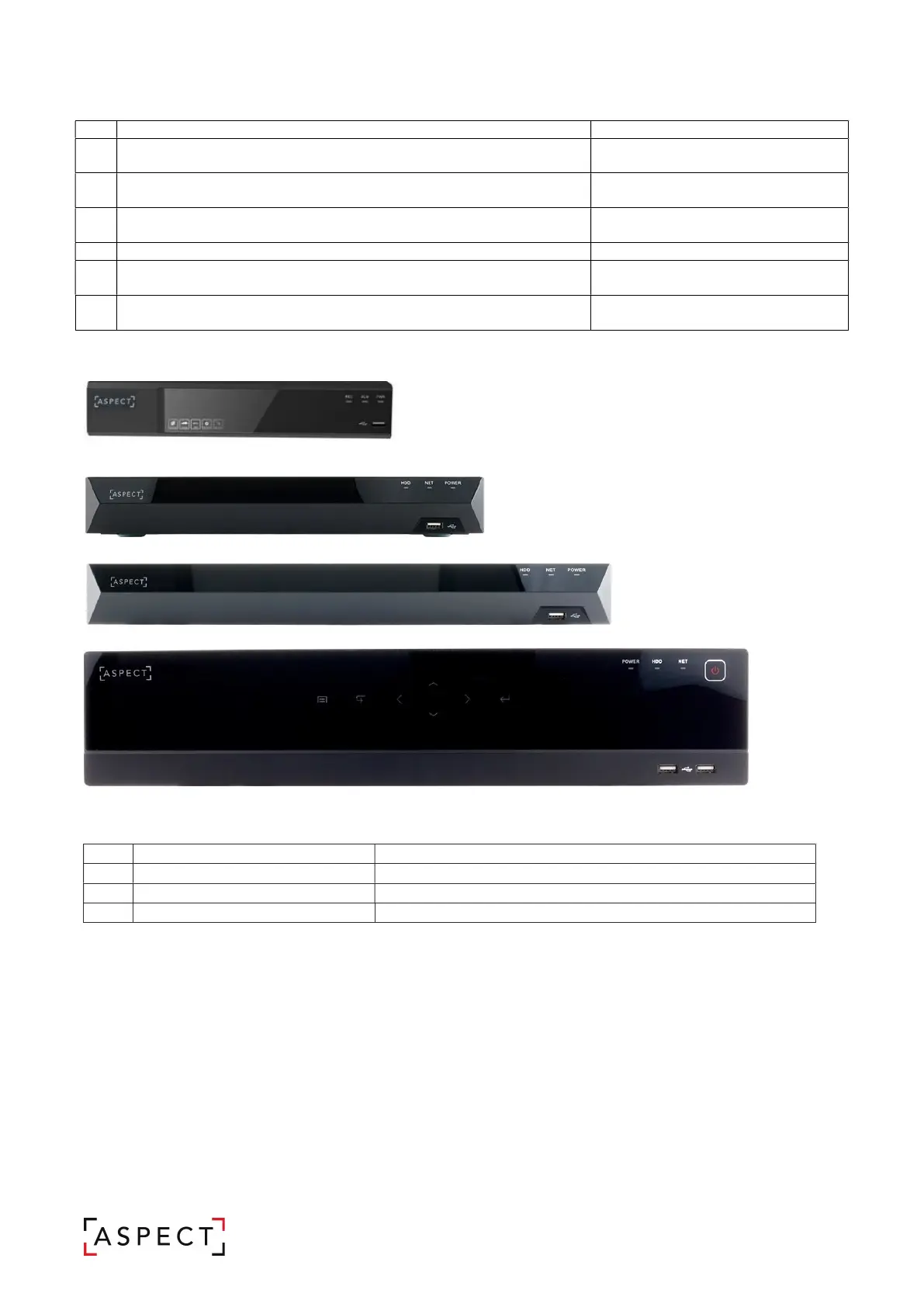

Front Panel
1 – DVR-2M-4-2
2 - DVR-2M-8-2, DVR-8M-4, DVR-8M-8
3 – DVR-2M-16-2, DVR-8M-16
4 – DVR-2M-32
No.
Name
Description
1
IR REMOTE CONTROL RECEIVER
Receives the control signal from included remote control.
2
USB
For connecting USB devices
such as a mouse or back up device
3
STATUS LED
Displays the status of power, network and hard drive

Aspect DVR-2M-4-2 Specifications

General

Brand	Aspect
Model	DVR-2M-4-2
Category	DVR
Language	English
