3B. Closet and Alcove Installation
These units are designed to be installed in a closet or an alcove.
If installing the electric furnace into a closet or an alcove, the unit
must leave front clearance to service the unit. The bottom of the unit
should also rest on a sturdy platform or oor.
Airow must be made available to the electric furnace’s return. Not
doing so may cause improper heating as well as premature heating
element failure.
Ensure that the unit is adequately sized.
The tonnage of the outdoor unit should
never exceed the tonnage of this unit.
CAUTION
!

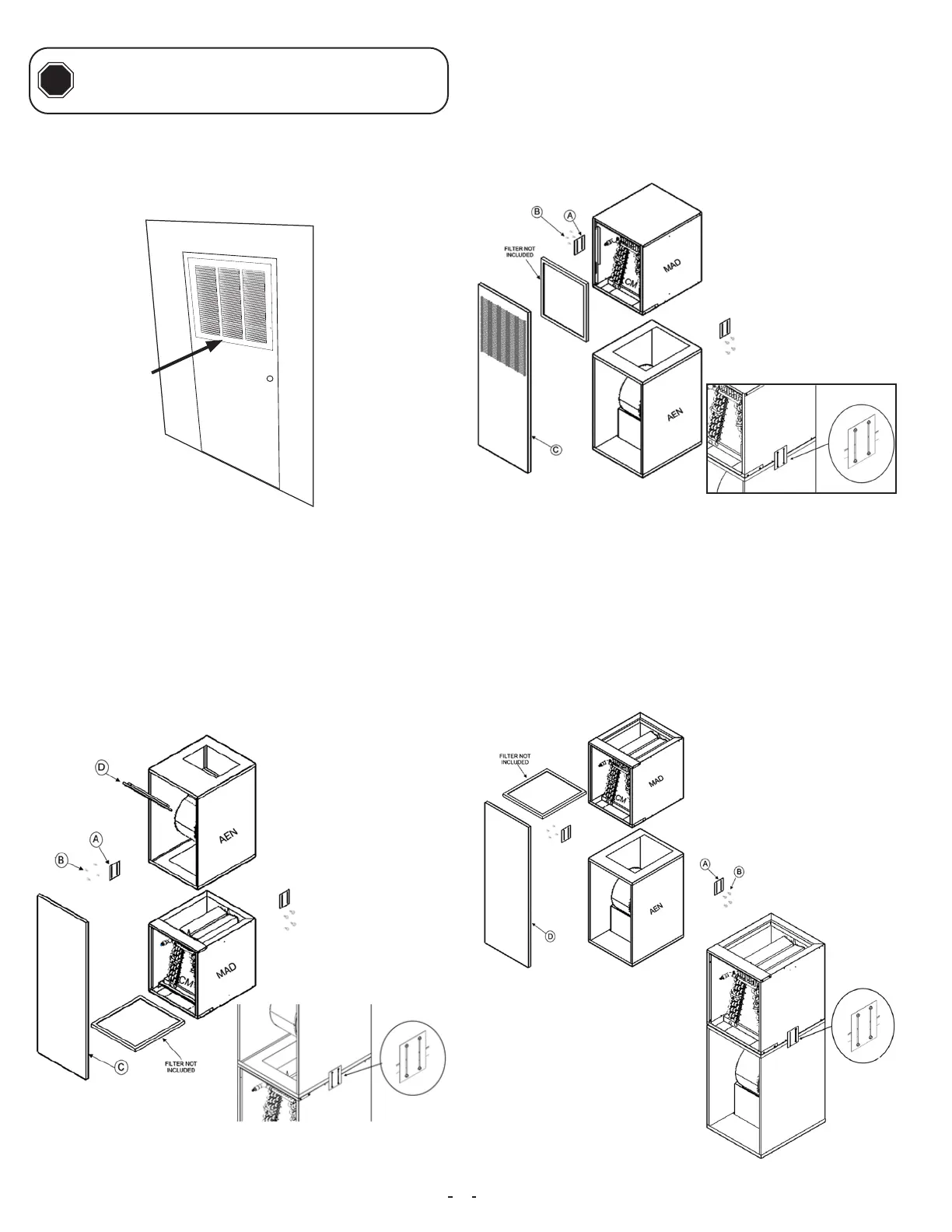

Fig 3B. Closet Installation
Wall Mount
Return Air Grille
3B-1. AEU-000 Conguration
Mount electric furnace onto the coil cabinet (if shipped in downow
conguration, refer to section 4 for cabinet reconguration) and
secure with Alignment Plates on each side (see Figure 3B-1). See
section 5 for more information on easily aligning the single door onto
the nal assembly.
Figure 3B-1 (Filter Size: 18x20x1)
3B-2. AED-001 (Front Return Only) Conguration
Mount coil cabinet on top of electric furnace and secure both unit
with the Alignment Plates (Figure 3B-2). There are pre-holes on
coil cabinet but you will need to self-drill onto the electric furnace to
secure plates. Mount the Louver Single Door to nalize assembling.
See section 5 for more information on easily aligning the single door
onto the nal assembly. Unit is not eld-congurable into upow
orientation without separate solid door and convertible coil cabinet.
Figure 3B-2 (Filter Size: 18x20x1)
3B-3. AED-000 Downow (Top Return) &
AED-002 Downow (Top/Front):
Mount coil cabinet on top of electric furnace. Secure both units
with the Alignment Plates (Figure 3B-3). There are pre-holes on
coil cabinet but you will need to self-drill onto the electric furnace
to secure plates. Mount the louvered door to nalize assembling for
top/front return; for the AED-000, a separate solid door is required.
See section 5 for more information on easily aligning the single door
onto the nal assembly.
Figure 3B-3 (Filter Size: 18x20x1)
