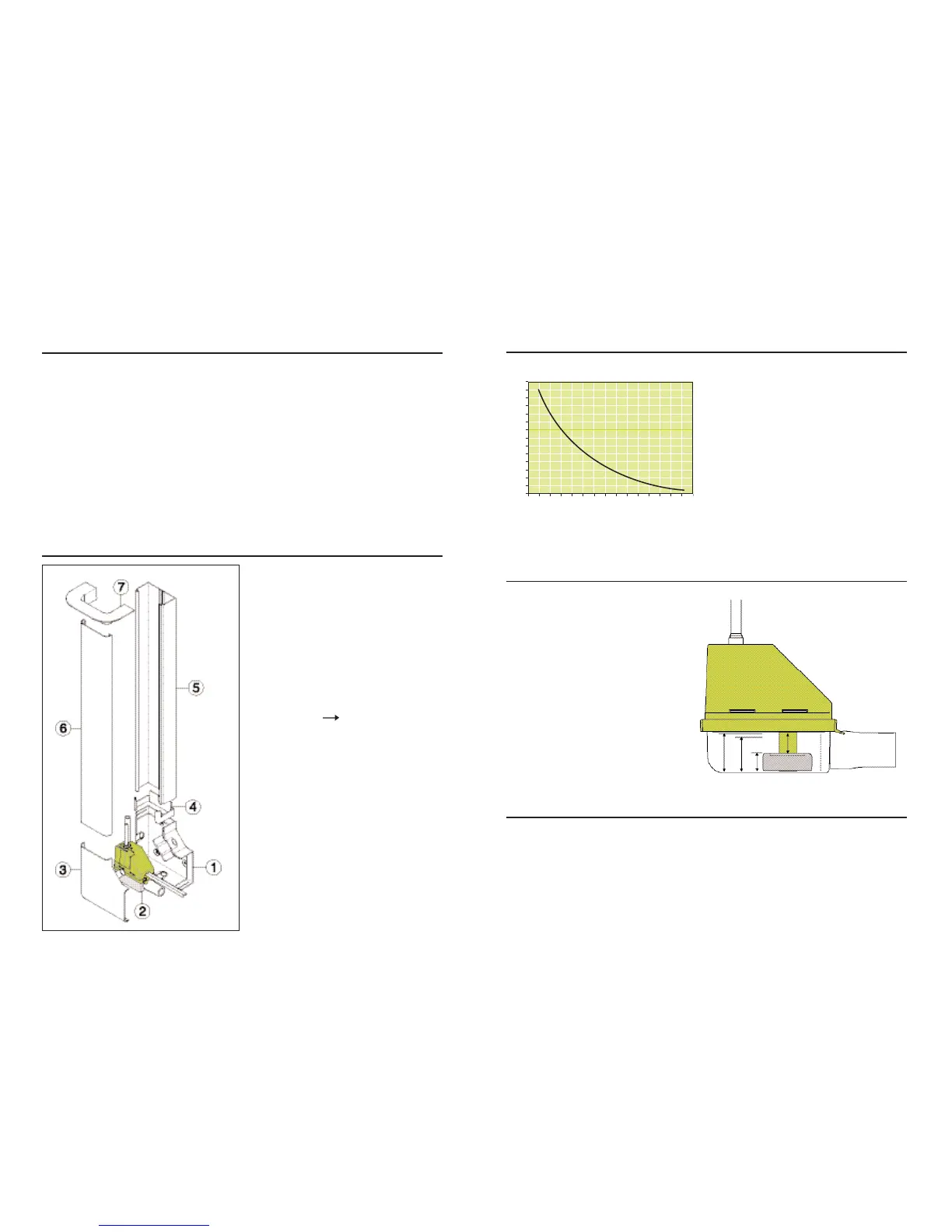

1. 1 x Elbow back
2. 1 x Assembled Mini Lime pump,
including:
a. Vinyl breather tube (15cm x 9mm o/d)
b. lime silicone rubber tube
3. 1 x Elbow front
4. 1 x Internal conduit sleeve
(slim-line system only)
5. 1 x Conduit back (800mm)
6. 1 x Conduit front (800mm)
7. 1 x Ceiling plate
8. 1 x 6mm 4mm reducer
9. 6 x rawl plugs and screws
10. 4 x cable ties
Please note:
You will also need several metres
of 9mm o/d x 6mm i/d vinyl tube
Please note:
Additional Internal conduit sleeves and
800mm lengths of Conduit are available
on request (for slim-line system only)
Technical Data:
•
Power supply 230V AC
±10%~20W
Alternative voltages available
•
1PH 50/60 Hz
•
Volt-free N.O., N.C. 8A Resistive
(5A INDUCTIVE)
•
Hall effect semi conductor level
sensors
•
Water flow rate: 14 litres at zero head
•
Maximum recommended head:
8 metres
•
23dB(A) @ 1 metre & 8 metre head
•
Gravity inlet
•
Thermally protected pump
•
Max pipe size:
5
/
8
”
and
3
/
8
”
(including insulation)
•
CE marked
In the box:
Typical Performance:
Operating Levels:
Product Safety:
The float inside the reservoir operates at
three different heights. These approximate
heights are shown in this diagram.
Note - the float must rest in the lowest
position (on the floor of the reservoir) to
stop the pump running:
9mm - Off
20mm - On
25mm - Safety
•
The Mini Lime Pump has been evaluated for use with water only.
•
For correct and safe electrical installation please refer to the instruction manual.
•
Ensure the Pump is disconnected from the Mains supply before carrying out
any adjustments or servicing.
•
The Pump is ideal for most working and living environments. It is not recommended
where the environment is oily or particularly dusty.
012 3 45 678 91011 12 13 14 15
LITRES PER HOUR
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
HEAD IN METRES
WE RECOMMEND USING THIS PUMP
FOR NO GREATER THAN 8 METRES HEAD
25
20
9
