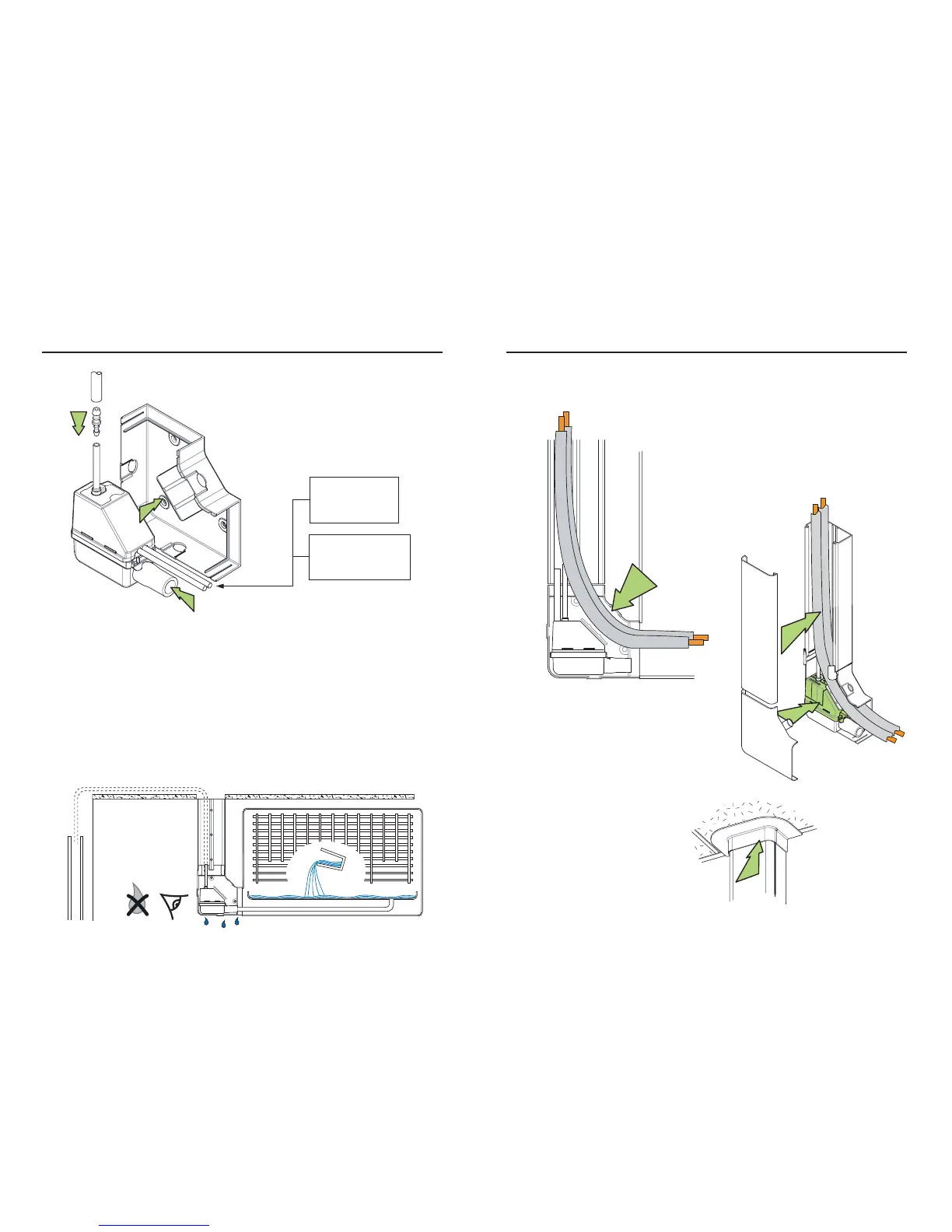

Installation:
• Remove internal sleeve (slim-line system only)
• Locate pump in ‘Elbow back’
• Push drain tray hose firmly into lime tube
• Connect pump outlet to 9mm o/d tube using
reducer. Then channel this tube to an
appropriate drain
4
5
Wire the Mini Lime Pump to the permanent Live, Neutral and Earth terminals of the
Evaporator. Install a 1.0 amp in-line fuse between the Mini Lime Pump and the
Evaporator.
A high-level alarm switch should be wired into the cooling signal wire, to prevent the
continued operation of the Air-conditioning unit in the event of the pump failing.
These are volt-free contacts and operate as follows:
COMMON AND NORMALLY CLOSED when the water rises to the alarm level
the circuit opens.
COMMON AND NORMALLY OPEN when the water rises to the alarm level
the circuit closes.
Test pump operation
6
FALSE CEILING
POWER:
EARTH: Green/Yellow
LIVE: Brown
NEUTRAL: Blue
ALARM/VOLT FREE
COMMON: Grey
NORMALLY CLOSED: Purple
NORMALLY OPEN: Orange
Installation:
7
9
8
Locate pipes and cables in 'Elbow back' and 'Conduit back'.
Ensure breather tube is channelled up inside conduit.
Remove backing and push
'Ceiling plate' into position.
Slide ‘Internal sleeve’ (slim-line system
only) into place and clip 'Elbow front'
and 'Conduit front' into position.
