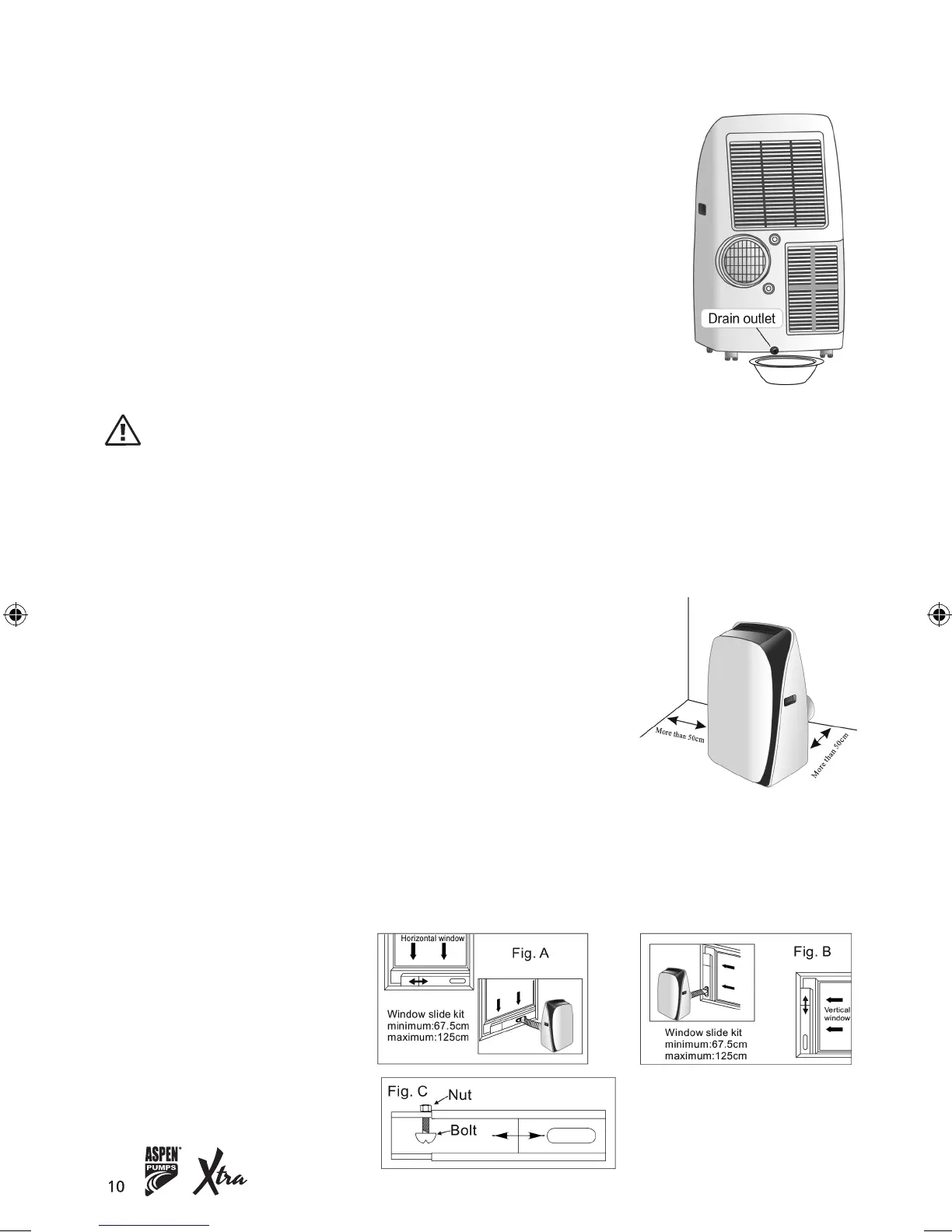

Removal of condensate water
When the internal water tank is full, the control panel display indicates “P1”.
1. Open the drain cover and extract it upwards.
2. Put a container under the drain pipe, take out the plug on the drain pipe
and let out the condensate water.
3. After all the water has been emptied, replace the plug back onto the
drainage outlet, and replace the cover.
IMPORTANT This water is not suitable for drinking.
Installation
Select a best location
1. Install the mobile air conditioner in a flat and spacious location
where the air outlets will not be obstructed.
2. A minimum clearance of 50cm from walls or other obstacles should
be kept.
3. The gradient can’t be more than 10 degrees in the horizontal plane
while using the unit & fitting kit.
Note: 1. The air conditioner shall not be used in the laundry.
2.The plug shall be accessible after the unit is positioned.
Window kit installation
Your window kit has been designed to fit most standard vertical and horizontal window applications.
However, it may be necessary for you to improve or modify some aspects of the installation procedure
for certain types of window. Please refer to fig. A & fig. B for minimum and maximum window
openings.
Note: The bolt and nut are used
to fix window fixing board.
