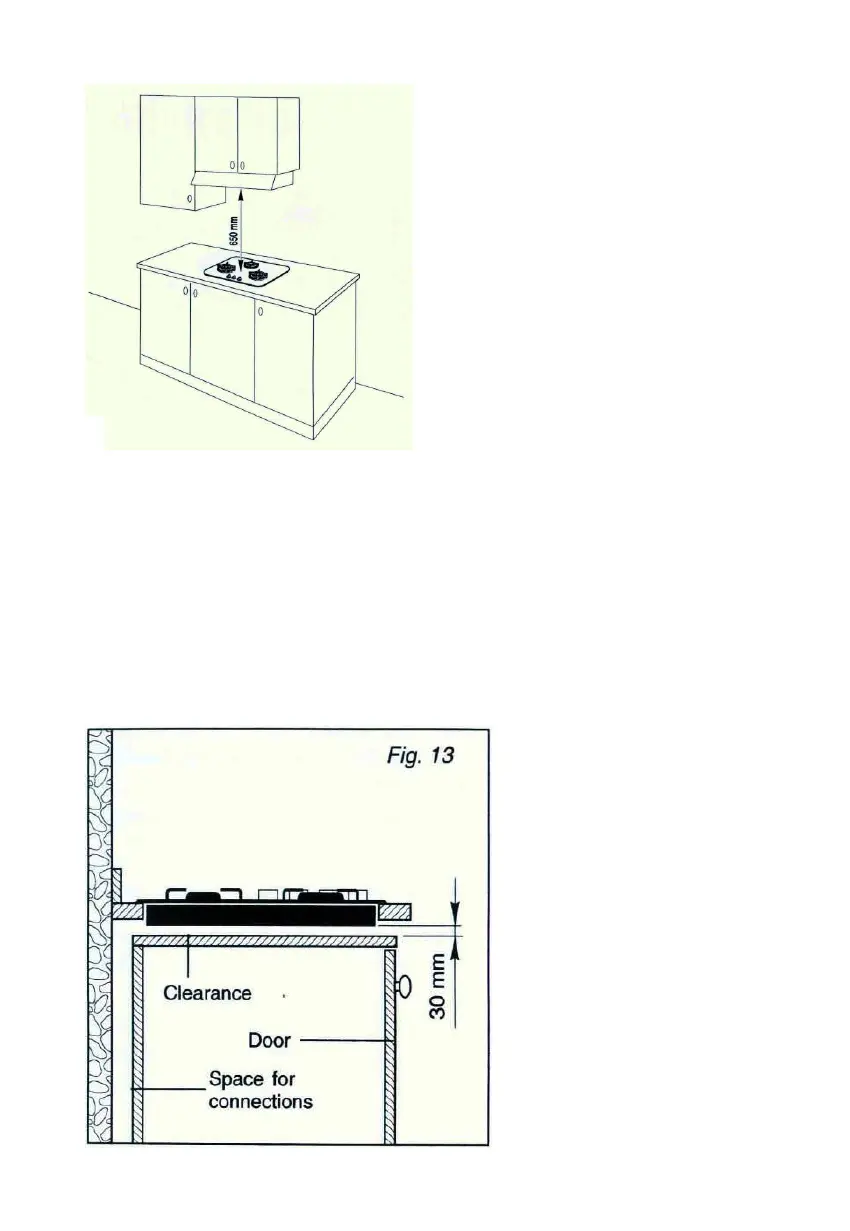

INSTALLATION IN KITCHEN CABINET WITH DOOR (fig.13)
The fixture has to be made according to specific requirements in
order to prevent the gas burners from going out,even when the
flame is turned down to minimum, due to pressure changes while
opening or closing the cupboard doors.
It is recommended that a 30 mm clearance be left between the
cooker top and the fixture surface (fig.13).
