ASROCK Rack X570D4U-2L2T User Manual

30 31
English

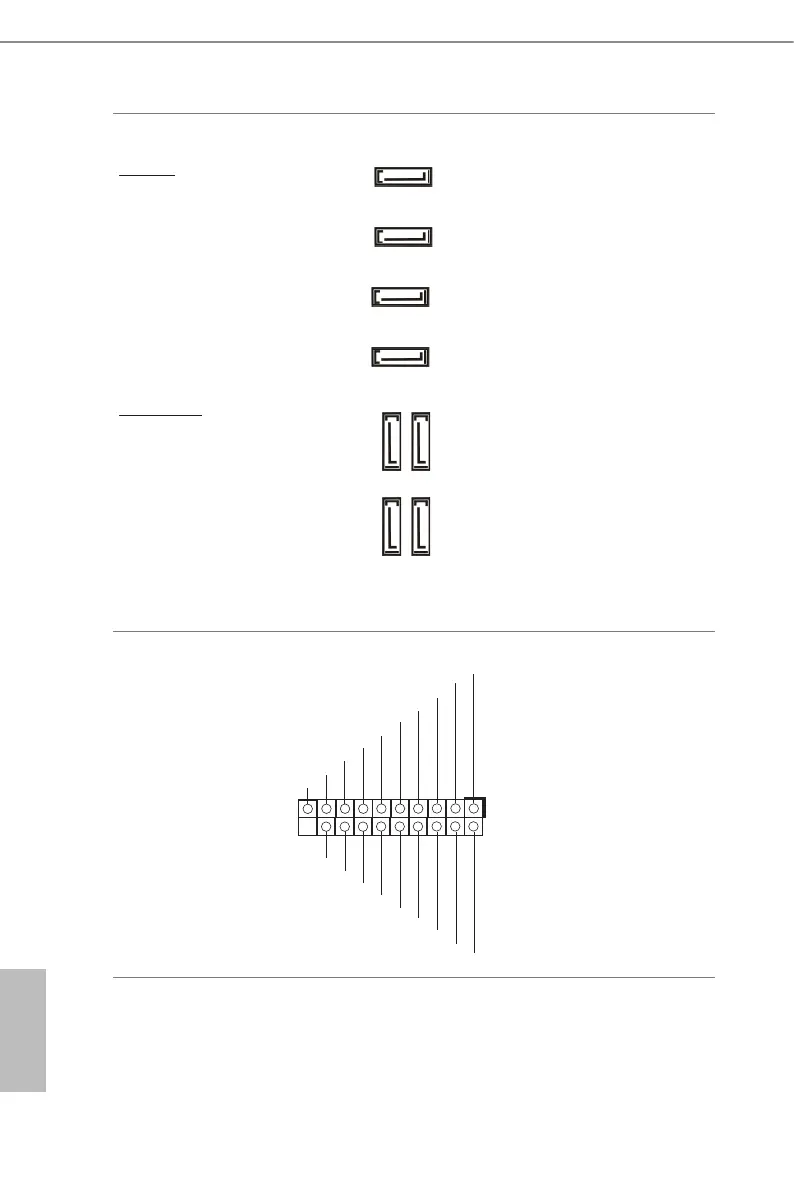

Serial ATA3 Connectors
Vertical:
(SATA_0:
see p.7, No. 13)
(SATA_1:
see p.7, No. 15)
(SATA_6:
see p.7, No. 21)
(SATA_7:
see p.7, No. 20)
Right Angle:
(SATA_2:
see p.7, No. 17)(Lower)
(SATA_3:
see p.7, No. 17)(Upper)
(SATA_4:
see p.7, No. 19)(Lower)
(SATA_5:
see p.7, No. 19)(Upper)
ese connectors
support SATA data
cables for internal
storage devices with up
to 6.0 Gb/s data transfer
rate.
USB 3.2 Gen1 Header
(19-pin USB3_3_4)
(see p.7, No. 14)
ere is one USB 3.2 Gen1
header on this motherboard.
is USB 3.2 Gen1 header
can support two USB 3.2 Gen1
ports.
1
ID
IntA_P_D +
IntA_P_D -
GN D
IntA_P_SSTX+
IntA_P_SSTX-
GN D
IntA_P_SSRX +
Vbu s
IntA_P_D +
IntA_P_D -
GN D
IntA_P_SSTX+
IntA_P_SSTX-
GN D
IntA_P_SSRX +
IntA_P_SSRX -
Vbu s
IntA_P_SSRX -
SATA_5 SATA_4
SATA_3 SATA_2
SATA_0
SATA_1
SATA_6
SATA_7
