ASRock 775XFire-eSATA2+ Motherboard

EnglishEnglish

English

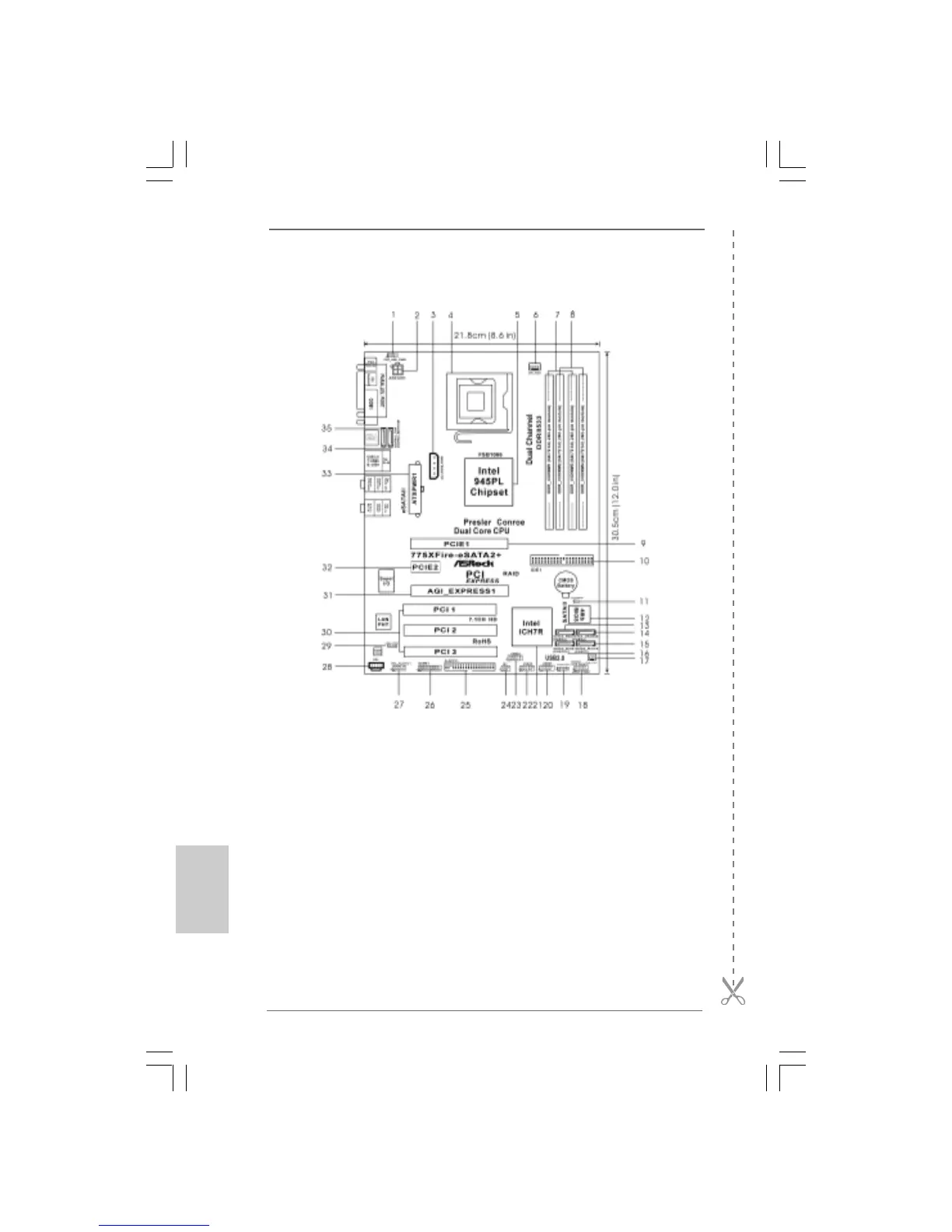

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 18 System Panel Header (PANEL1)

2 ATX 12V Connector (ATX12V1) 19 Chassis Speaker Header (SPEAKER 1)

3 SLI / XFIRE Power Connector 20 USB 2.0 Header (USB67, Blue)

4 775-Pin CPU Socket 21 South Bridge Controller

5 North Bridge Controller 22 USB 2.0 Header (USB45, Blue)

6 CPU Fan Connector (CPU_FAN1) 23 USB 2.0 Header (USB23, Blue)

7 2 x 240-pin DDRII DIMM Slots 24 Infrared Module Connector (IR1)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 25 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDRII DIMM Slots 26 Game Port Header (GAME1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 27 Front Panel Audio Header (HD_AUDIO1)

9 PCI Express x16 Slot (PCIE1) 28 Internal Audio Connector: CD1 (Black)

10 IDE1 Connector (IDE1, Blue) 29 HDMI_SPDIF Header (HDMI_SPDIF1)

11 Clear CMOS Jumper (CLRCMOS1) 30 PCI Slots (PCI1- 3)

12 BIOS FWH Chip 31 AGI Express Slot (PCI Express x4)

13 Serial ATAII Connector (SATAII_RED (PORT2)) 32 PCI Express x1 Slot (PCIE2)

14 Serial ATAII Connector (SATAII_ORANGE (PORT3)) 33 ATX Power Connector (ATXPWR1)

15 Serial ATAII Connector (SATAII_BLACK (PORT1)) 34 eSATAII Connector (eSATAII_BOTTOM)

16 Serial ATAII Connector (SATAII_BLUE (PORT0)) 35 eSATAII Connector (eSATAII_TOP)

17 Chassis Fan Connector (CHA_FAN1)
