19
English
970M Pro3

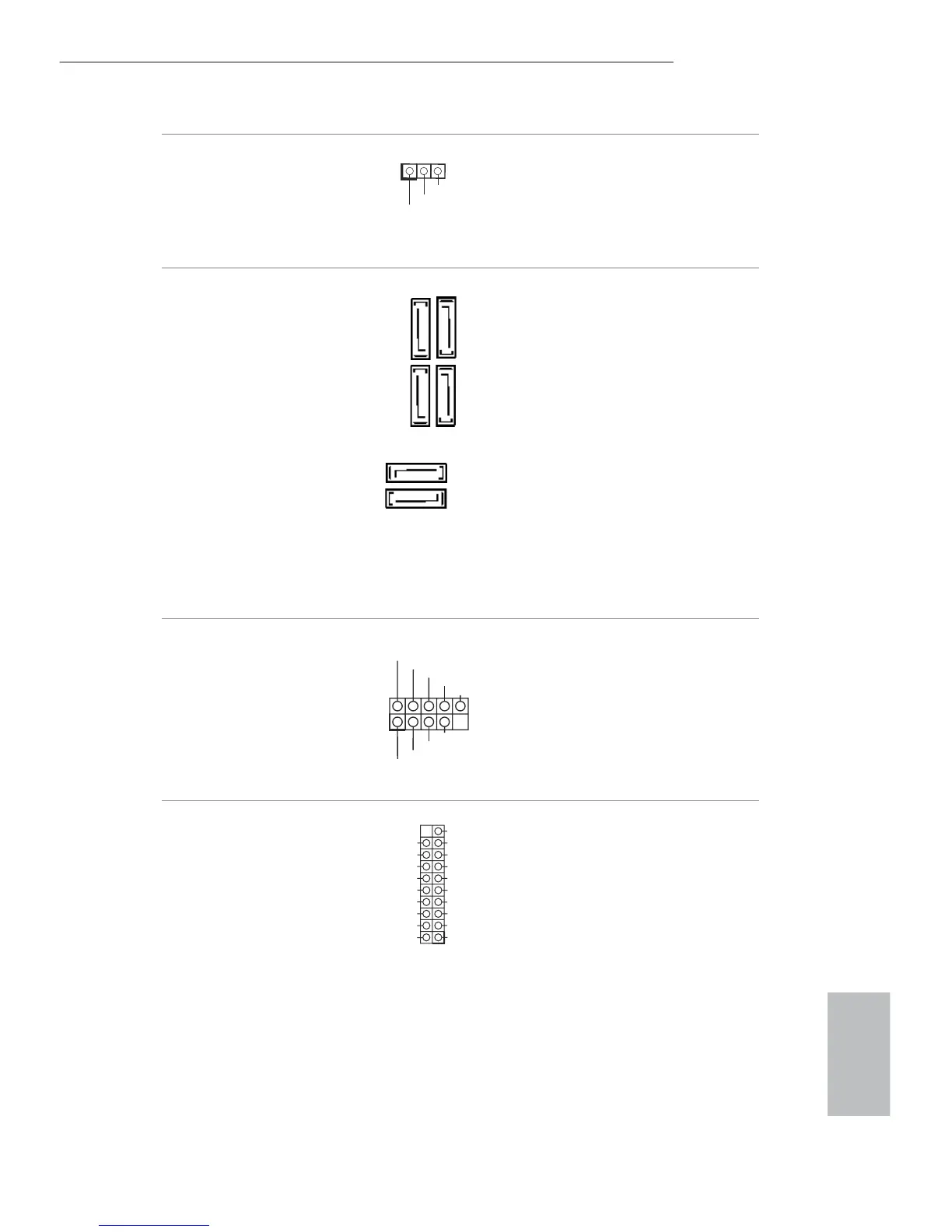

Power LED Header
(3-pin PLED1)
(see p.1, No. 15)
Please connect the chassis
power LED to this header
to
indicate the systemโ€™s
power status.
Serial ATA3 Connectors
(SATA3_1:
see p.1, No. 11)
(SATA3_2:
see p.1, No. 12)
(SATA3_3:
see p.1, No. 10)
(SATA3_4:
see p.1, No. 9)
(SATA3_5:
see p.1, No. 7)
(SATA3_6:
see p.1, No. 8)
๎˜ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_8_9)
(see p.1, No. 16)
(9-pin USB_10_11)
(see p.1, No. 17)
Besides six USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_2_3)
(see p.1, No. 22)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. ๎˜is USB
3.0 header can support
two ports.
1
PLED+
PLED+
PLED-
SATA3_1
SATA3_3 SATA3_5
SATA3_4 SATA3_6
SATA3_2
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
