142
ASRock 980DE3/U3S3 Motherboard
繁體中文

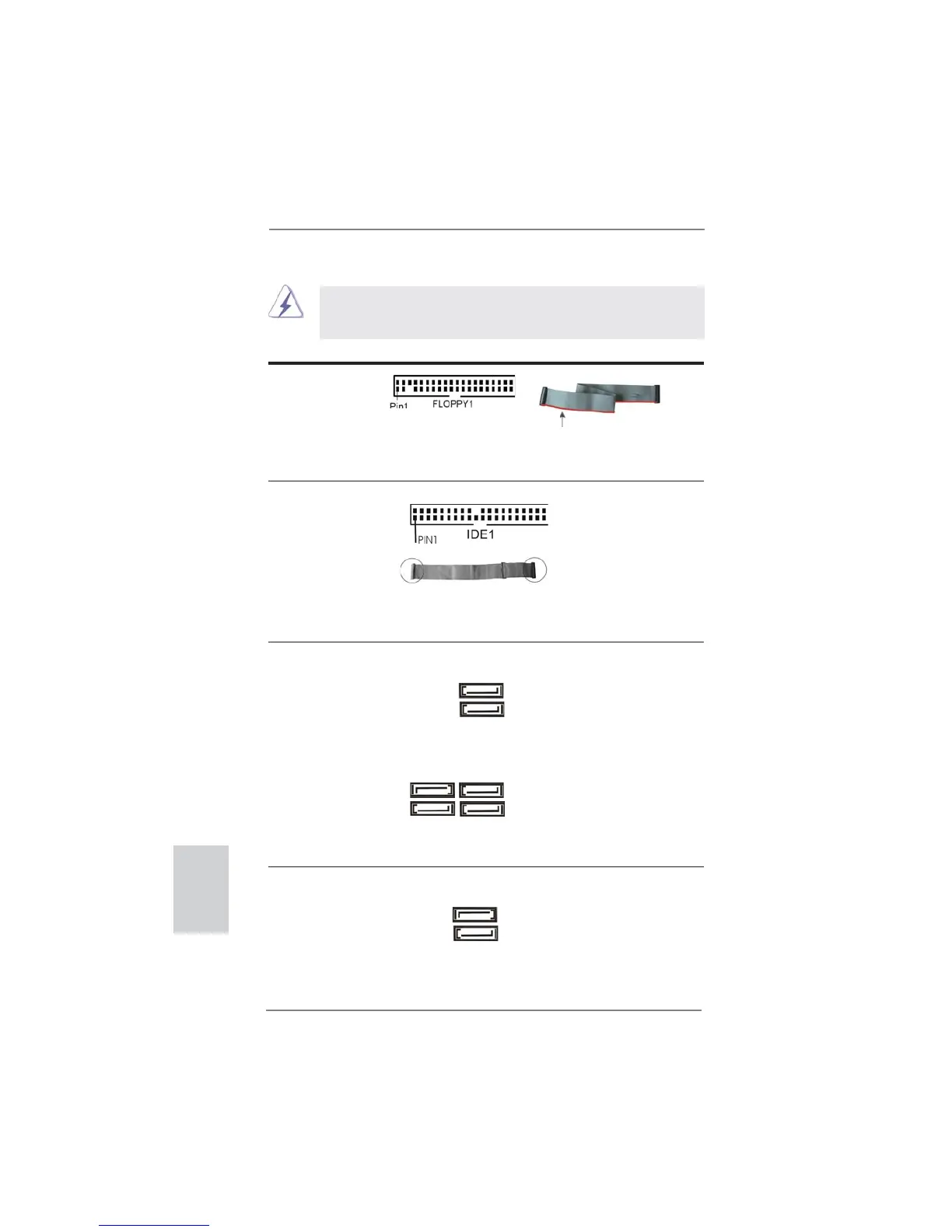

Serial ATAII 接口 這裡有六組 Serial ATAII
(SATAII_1 (PORT 0):
(SATAII) 接口支援 SATA 數據
第2頁第20項)
線作為內部儲存設置。
(SATAII_2 (PORT 1):
目前 SATAII 界面理論上
第2頁第19項)
可提供高達 3.0Gb/s 的數據
(SATAII_3 (PORT 2):
傳輸速率。
第2頁第18項)
(SATAII_4 (PORT 3):
第2頁第17項)
(SATAII_5 (PORT 4):
第2頁第16項)
(SATAII_6 (PORT 5):
第2頁第15項)
Serial ATA3 接口 這裡有兩組 Serial ATA3
(SATA3_1 (PORT 6): 見第 2 頁第 11 )
(SATA3) 接口支援 SATA 數據
(SATA3_2 (PORT 7): 見第 2 第9項)
線作為內部儲存設置。
目前 SATA3 界面理論上
可提供高達 6.0Gb/s 的數據
傳輸速率。
1.4 接頭
此類接頭是不用跳線帽連接的,請不要用跳線帽短接這些接頭。
跳線帽不正確的放置將會導致主機板的永久性損壞 !
接頭 圖示 說明
磁碟機接頭
(33 針 FLOPPY1)
(見第2頁第27項)
注意 : 請確保數據線標紅色的一邊插入接頭第 1 針腳 (Pin1) 的位置。
將標示紅色的一邊插入第 1 針腳 (Pin1)
主IDE接頭(黑色)
(39 針 IDE1,見第 2 頁第 36 )
注意 : 請查閱您的 IDE 驅動器供應商提供的說明書了解詳細資料。
藍色端接到主機板上 黑色端接到硬碟驅動器上
80 針的 ATA 66/100/133 排線
SATAII_1 SATAII_3
(PORT 0) (PORT 2)
SATAII_2 SATAII_4
(PORT 1) (PORT 3)
SATAII_5
(PORT 4)
SATAII_6
(PORT 5)
SATA3_1
(PORT 6)
SATA3_2
(PORT 7)
