ASRock A75M Motherboard
English

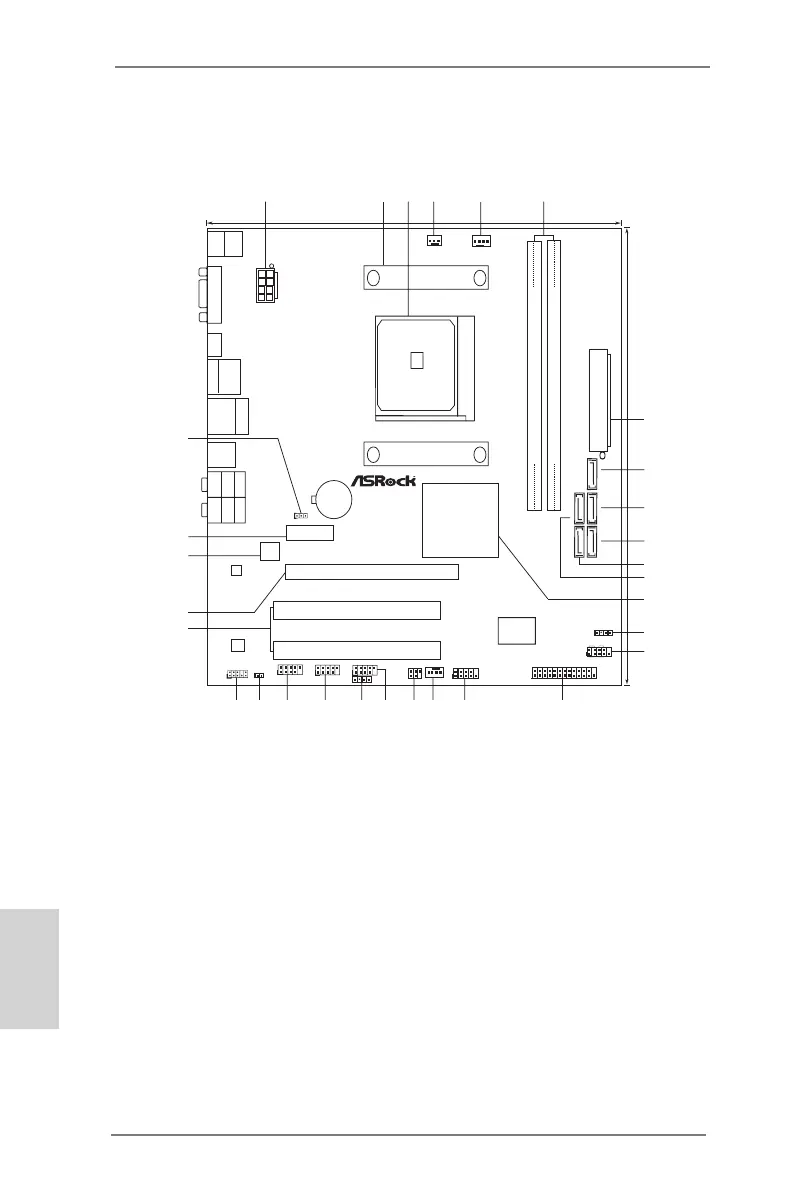

Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 16 Print Port Header (LPT1, White)
2 CPU Heatsink Retention Module 17 COM Port Header (COM1)
3 CPU Socket 18 Chassis Fan Connector (CHA_FAN1)
4 Power Fan Connector (PWR_FAN1) 19 Infrared Module Header (IR1)
5 CPU Fan Connector (CPU_FAN1) 20 USB 2.0 Header (USB10_11, Blue)
6 2 x 240-pin DDR3 DIMM Slots 21 Consumer Infrared Module Header (CIR1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 22 USB 2.0 Header (USB8_9, Blue)
7 ATX Power Connector (ATXPWR1) 23 USB 2.0 Header (USB6_7, Blue)
8 SATA3 Connector (SATA_5, White) 24 HDMI_SPDIF Header (HDMI_SPDIF1, White)
9 SATA3 Connector (SATA_3, White) 25 Front Panel Audio Header (HD_AUDIO1, White)
10 SATA3 Connector (SATA_1, White) 26 PCI Slots (PCI1-2)
11 SATA3 Connector (SATA_2, White) 27 PCI Express 2.0 x16 Slot (PCIE2; Blue)
12 SATA3 Connector (SATA_4, White) 28 SPI Flash Memory (32Mb)
13 Southbridge Controller 29 PCI Express 2.0 x1 Slot (PCIE1; White)
14 Chassis Speaker Header (SPEAKER 1, White) 30 Clear CMOS Jumper (CLRCMOS1)
15 System Panel Header (PANEL1, White)
Super
I/O
CM OS
BA TT ER Y
ATXPWR1
AMD
A75 FCH
(Hudson-D3)
Chipset
