ASRock A75M Motherboard
English

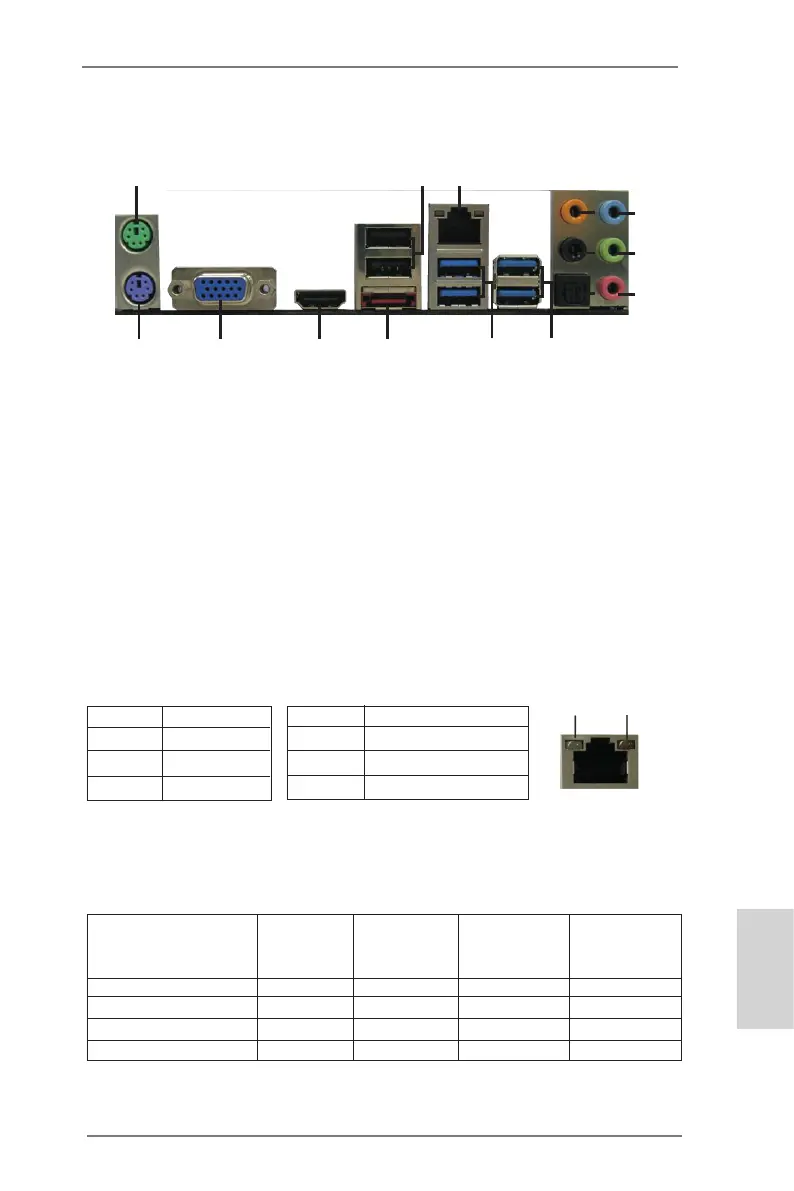

I/O Panel
** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 PS/2 Mouse Port (Green) 9 Microphone (Pink)
* 2 USB 2.0 Ports (USB23) 10 USB 3.0 Ports (USB45)
** 3 LAN RJ-45 Port 11 USB 3.0 Ports (USB01)
4 Central / Bass (Orange) **** 12 eSATA3 Connector
5 Rear Speaker (Black) 13 HDMI Port
6 Optical SPDIF Out Port 14 D-Sub Port
7 Line In (Light Blue) 15 PS/2 Keyboard Port (Purple)
*** 8 Front Speaker (Lime)
LAN Port
ACT/LINK
LED
SPEED
LED
***
If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or
(No. 8) (No. 5) (No. 4) Side Speaker
(No. 7)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB23)
instead of USB 3.0 ports.
6
7
9
10
11
12
13
14
15
1
2
4
3
5
8

ASROCK A75M Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866, 2400 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
Processor socket	Socket FM1
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	5
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL, ErP, EuP
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A75
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7/Vista/XP
PCI Express slots version	2.0
Maximum graphics card memory	512 MB
RAID levels	0, 1, 10
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	216 mm
Width	244 mm
