ASROCK A75M User Manual

12

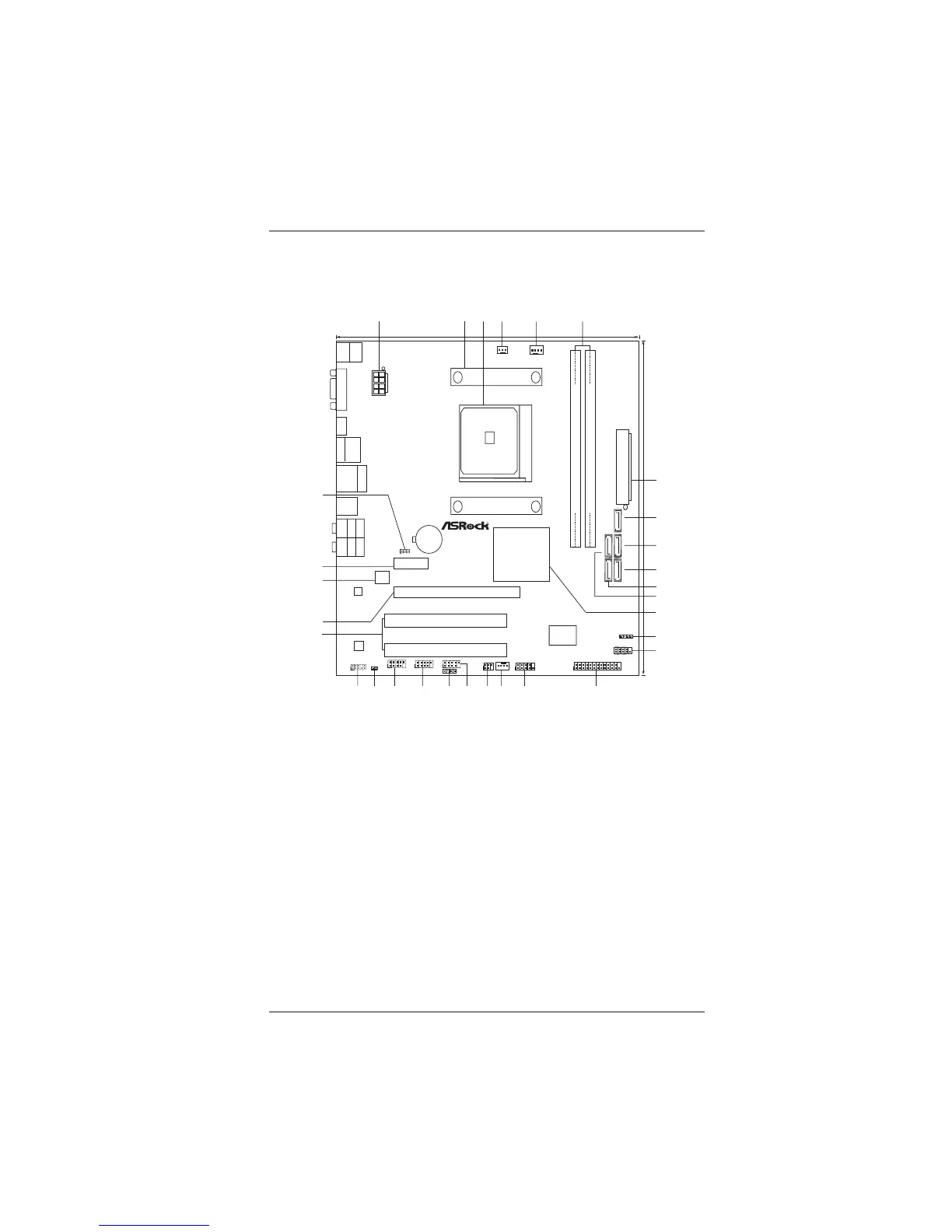

1.3 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 16 Print Port Header (LPT1, White)
2 CPU Heatsink Retention Module 17 COM Port Header (COM1)
3 CPU Socket 18 Chassis Fan Connector (CHA_FAN1)
4 Power Fan Connector (PWR_FAN1) 19 Infrared Module Header (IR1)
5 CPU Fan Connector (CPU_FAN1) 20 USB 2.0 Header (USB10_11, Blue)
6 2 x 240-pin DDR3 DIMM Slots 21 Consumer Infrared Module Header (CIR1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 22 USB 2.0 Header (USB8_9, Blue)
7 ATX Power Connector (ATXPWR1) 23 USB 2.0 Header (USB6_7, Blue)
8 SATA3 Connector (SATA_5, White) 24 HDMI_SPDIF Header (HDMI_SPDIF1, White)
9 SATA3 Connector (SATA_3, White) 25 Front Panel Audio Header (HD_AUDIO1, White)
10 SATA3 Connector (SATA_1, White) 26 PCI Slots (PCI1-2)
11 SATA3 Connector (SATA_2, White) 27 PCI Express 2.0 x16 Slot (PCIE2; Blue)
12 SATA3 Connector (SATA_4, White) 28 SPI Flash Memory (32Mb)
13 Southbridge Controller 29 PCI Express 2.0 x1 Slot (PCIE1; White)
14 Chassis Speaker Header (SPEAKER 1, White) 30 Clear CMOS Jumper (CLRCMOS1)
15 System Panel Header (PANEL1, White)
Super
I/O
CMOS
BATTERY
ATXPWR1
AMD
A75 FCH
(Hudson-D3)
Chipset
COM1
PCIE1
PCI1
PCI2
LAN
AUDIO
CODEC
1
CLRCMOS1
1
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
1
24.4cm (9.6-in)
21.6cm (8.5-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
2122
23
24
25
26
27
28
29
32Mb
BIOS
IR1
1
PCIE2
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
SATA_1
HDMI1
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
eSATA
USB 2.0
T: U SB 2
B: USB3
1
1
1
USB10_11
USB8_9
USB6_7
PWR_FAN1
Dx11
USB 3.0
A75M
ErP/EuP Ready
Designed in Taipei
RoHS
DDR3 2400+
USB 3.0
T: USB0
B: USB1
CIR1
1
SATA3 6Gb/s
SOCKET FM1
SATA_2
SATA_3
SATA_4
SATA_5
1
LPT1
ATX12V1
Gigabit LAN
HDMI 1.4a
PS2
Mouse
PS2
Keyboard
VGA1
USB 3.0
T: USB4
B: USB5
1
HDMI_SPDIF1
30
X Fast USB

ASROCK A75M Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866, 2400 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
Processor socket	Socket FM1
Processor manufacturer	AMD
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	5
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL, ErP, EuP
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A75
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7/Vista/XP
PCI Express slots version	2.0
Maximum graphics card memory	512 MB
RAID levels	0, 1, 10
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	216 mm
Width	244 mm
