ASRock AD525PV3 / AD425PV3 Motherboard
EnglishEnglish
EnglishEnglish
English

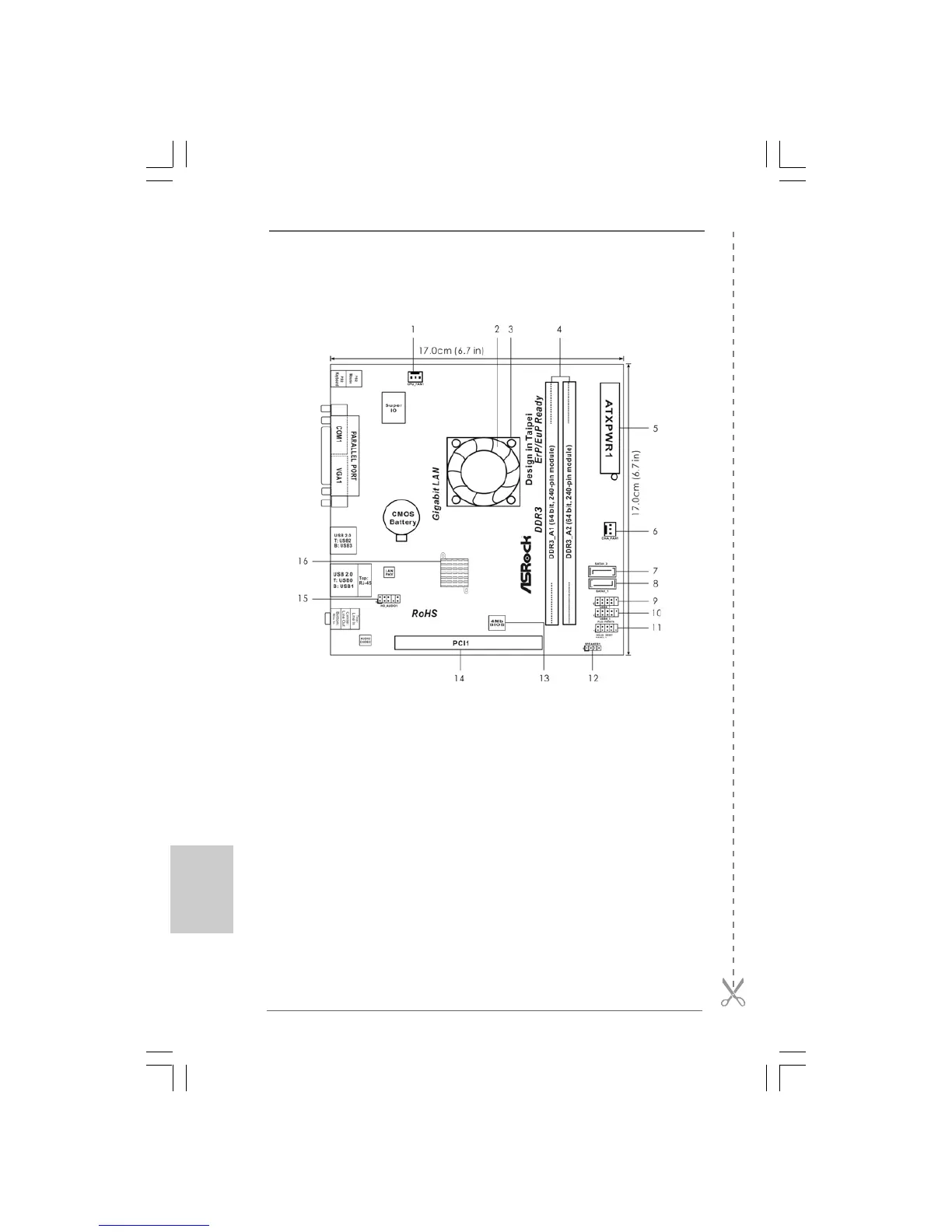

Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
1 CPU Fan Connector (CPU_FAN1) 9 USB 2.0 Header (USB6_7, Blue)
2 CPU Fan 10 USB 2.0 Header (USB4_5, Blue)
3 CPU Heatsink 11 System Panel Header (PANEL1, White)
4 2 x 240-pin DDR3 DIMM Slots 12 Chassis Speaker Header (SPEAKER 1, White)
(DDR3_A1, DDR3_A2; Blue) 13 BIOS SPI Chip
5 ATX Power Connector (ATXPWR1) 14 PCI Slot (PCI1)
6 Chassis Fan Connector (CHA_FAN1) 15 Front Panel Audio Header
7 Secondary SATAII Connector (SATAII_2; Blue) (HD_AUDIO1, White)
8 Primary SATAII Connector (SATAII_1; Blue) 16 South Bridge Controller
