1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout1.4 Motherboard Layout

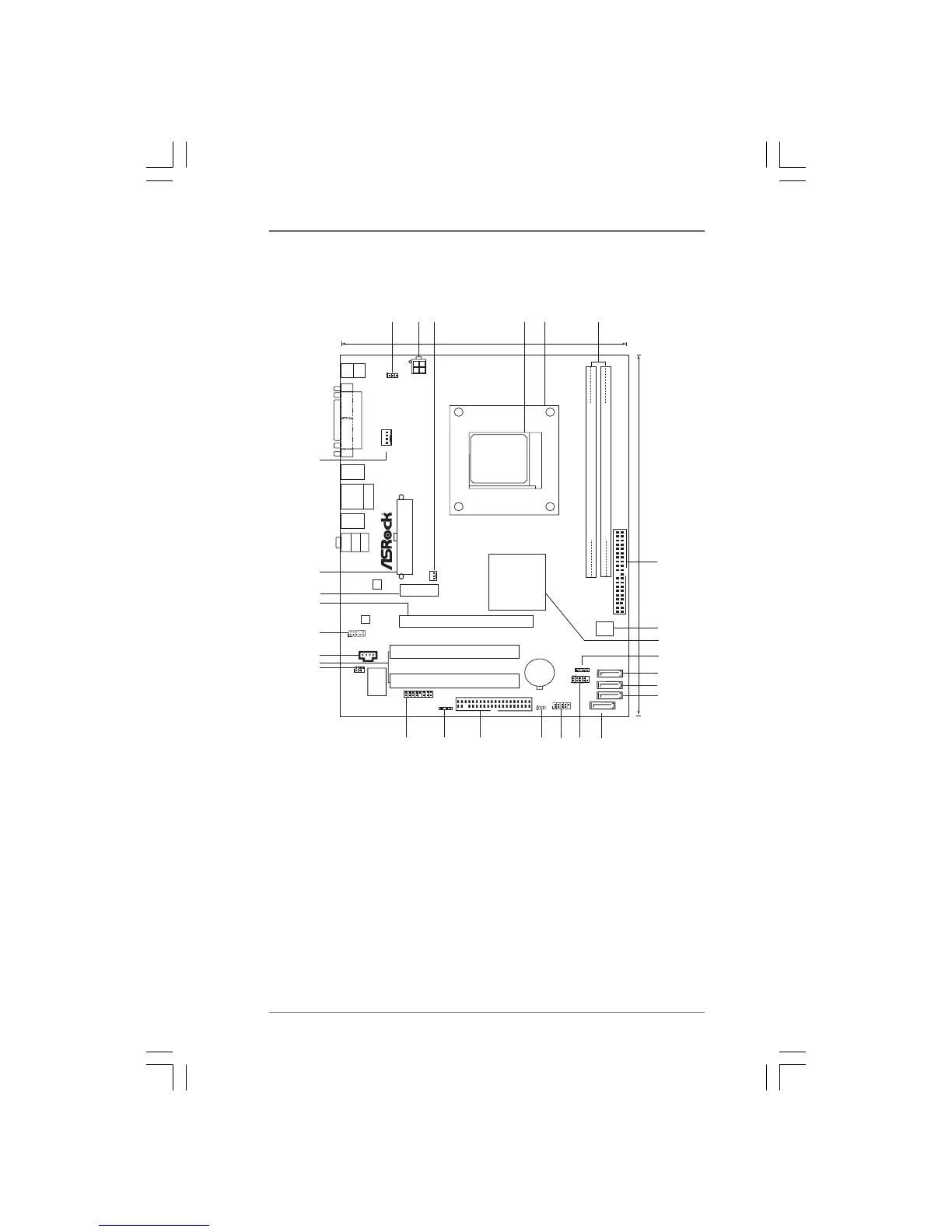

1.4 Motherboard Layout
SOCKET AM2
ATXPWR1
NVIDIA
GeForce 6150SE
/ nForce 430
Chipset
Super
I/O
IDE1
FLOPPY1
RoHS
RAID
PCI
EXPRESS
SATAII_2(PORT1)
SATAII_3(PORT2)
SATAII_4(PORT3)
SATAII_1(PORT0)
CHA_FAN1
USB2.0
USB6_7
1
HDLED RESET
PLED PWRBTN
1
PANEL1
SPEAKER1
1
IR1
1
CMOS
BATTERY
1
CLRCMOS1
CD1
LAN
PHY
1
HDMI_SPDIF1
AUDIO
CODEC
HD_AUDIO1
1
CPU_FAN1
FSB800
DDRII_1 (64/72 bit, 240-pin module)
DDRII_2 (64/72 bit, 240-pin module)
DDRII800
Dual Core CPU
FSB1GHz
Dual Channel
ALiveNF6P-VSTA
ATA133
SATAII
5.1CH HD
PCIE1
PCIE2
PCI1
PCI2
ATX12V1
PS2_USB_PW1
1
USB 2.0
T: USB2
B: USB3
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
PARALLEL PORT
COM1
PS2
Mouse
PS2
Keyboard
VGA1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
USB 2.0
T: USB4
B: USB5
19.6cm (7.7-in)
24.4cm (9.6-in)
WIFI/E
1
4Mb
BIOS
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1 PS2_USB_PW1 Jumper 15 System Panel Header (PANEL1)
2 ATX 12V Power Connector (ATX12V1) 16 USB 2.0 Header (USB6_7, Blue)
3 Chassis Fan Connector (CHA_FAN1) 17 Clear CMOS Jumper (CLRCMOS1)
4 AM2 940-Pin CPU Socket 18 Floppy Connector (FLOPPY1)
5 CPU Heatsink Retention Module 19 HDMI_SPDIF Header (HDMI_SPDIF1)
6 2 x 240-pin DDRII DIMM Slots 20 WiFi/E Header (WIFI/E)
(Dual Channe: DDRII_1, DDRII_2; Yellow) 21 DeskExpress Hot Plug Detection Header
7 Primary IDE Connector (IDE1, Blue) (IR1)
8 BIOS SPI Chip 22 PCI Slots (PCI1- 2)
9 NVIDIA GeForce 6150SE / nForce 430 Chipset 23 Internal Audio Connector: CD1 (Black)
10 Chassis Speaker Header (SPEAKER 1) 24 Front Panel Audio Header (HD_AUDIO1)
11 SATAII Connector (SATAII_1 (PORT0), Red) 25 PCI Express x16 Slot (PCIE2)
12 SATAII Connector (SATAII_2 (PORT1), Red) 26 PCI Express x1 Slot (PCIE1)
13 SATAII Connector (SATAII_3 (PORT2), Red) 27 ATX Power Connector (ATXPWR1)
14 SATAII Connector (SATAII_4 (PORT3), Red) 28 CPU Fan Connector (CPU_FAN1)
