3
English
AM1B-ITX

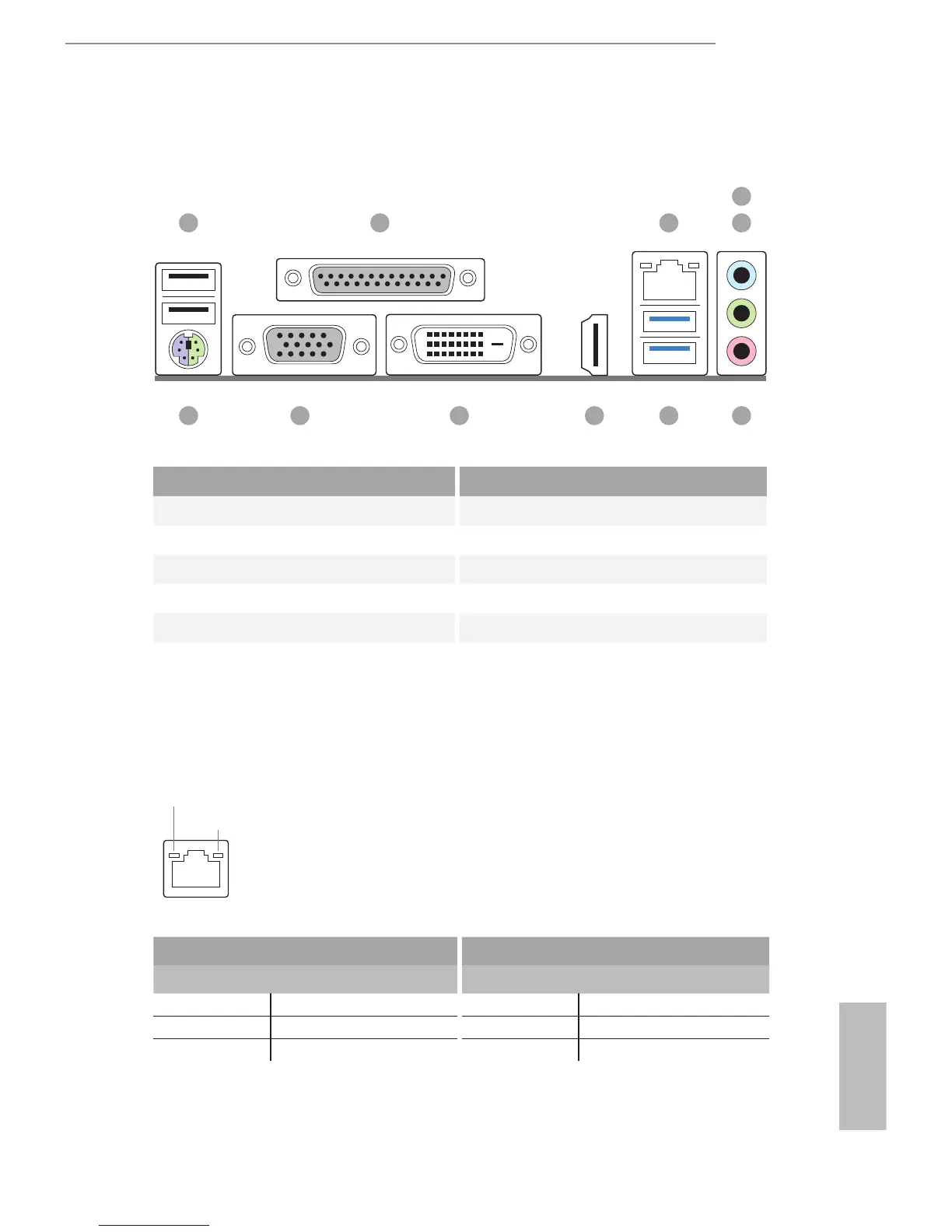

I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB01) 7 USB 3.0 Ports (USB3_0_1)
2 Parallel Port 8 HDMI Port
3 LAN RJ-45 Port* 9 DVI-D Port
4 Line In (Light Blue) 10 D-Sub Port
5 Front Speaker (Lime) 11 PS/2 Mouse/Keyboard Port
6 Microphone (Pink)
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 3 5
679
10
11
4
2
8
