ASRock AM2NF6G-VSTA Motherboard
EnglishEnglish
EnglishEnglish
English

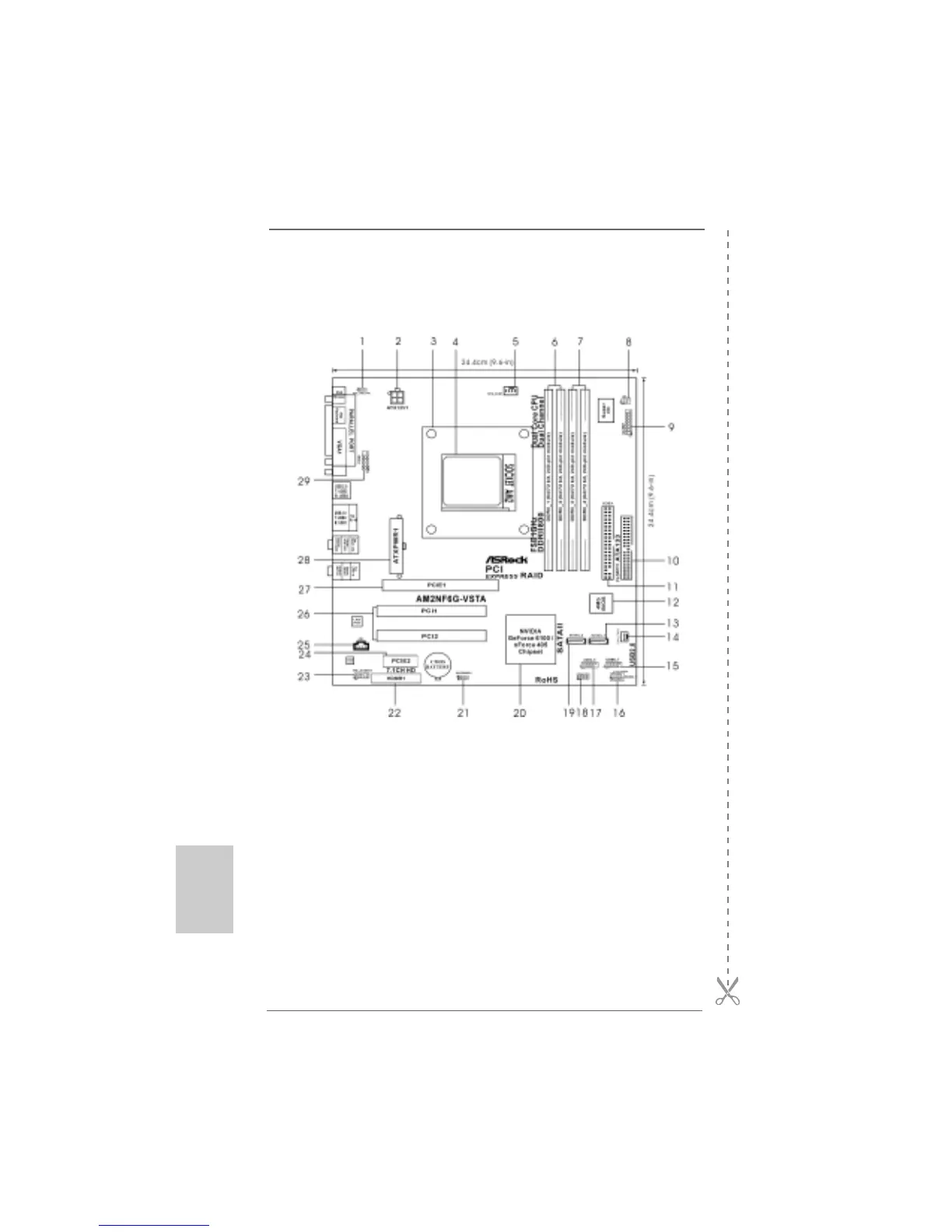

Motherboard LMotherboard L
Motherboard LMotherboard L
Motherboard L
ayoutayout
ayoutayout
ayout
1 PS2_USB_PW1 Jumper 15 USB 2.0 Header (USB6_7, Blue)
2 ATX 12V Power Connector (ATX12V1) 16 System Panel Header (PANEL1)
3 CPU Heatsink Retention Module 17 USB 2.0 Header (USB4_5, Blue)
4 AM2 940-Pin CPU Socket 18 Chassis Speaker Header (SPEAKER 1)
5 CPU Fan Connector (CPU_FAN1) 19 Secondary SATAII Connector (SATAII_2, Red)
6 2 x 240-pin DDRII DIMM Slots 20 NVIDIA Single Chip
(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 Clear CMOS Jumper (CLRCMOS1)
7 2 x 240-pin DDRII DIMM Slots 22 HDMR Slot (HDMR1)
(Dual Channel B: DDRII_3, DDRII_4; Orange) 23 Front Panel Audio Header (HD_AUDIO1)
8 Infrared Module Header (IR1) 24 PCI Express x1 Slot (PCIE2)
9 Game Port Header (GAME1) 25 Internal Audio Connector: CD1 (Black)
10 Floppy Connector (FLOPPY1) 26 PCI Slots (PCI1- 2)
11 Primary IDE Connector (IDE1, Blue) 27 PCI Express Graphics Slot (PCIE1)
12 Flash Memory 28 ATX Power Connector (ATXPWR1)
13 Primary SATAII Connector (SATAII_1, Red) 29 Serial Port Connector (COM1)
14 Chassis Fan Connector (CHA_FAN1)
