ASROCK B360 Pro4 User Manual

3
English
B360 Pro4
I/O Panel
1
12
8
911
4
3
7
6
5
2
10
13

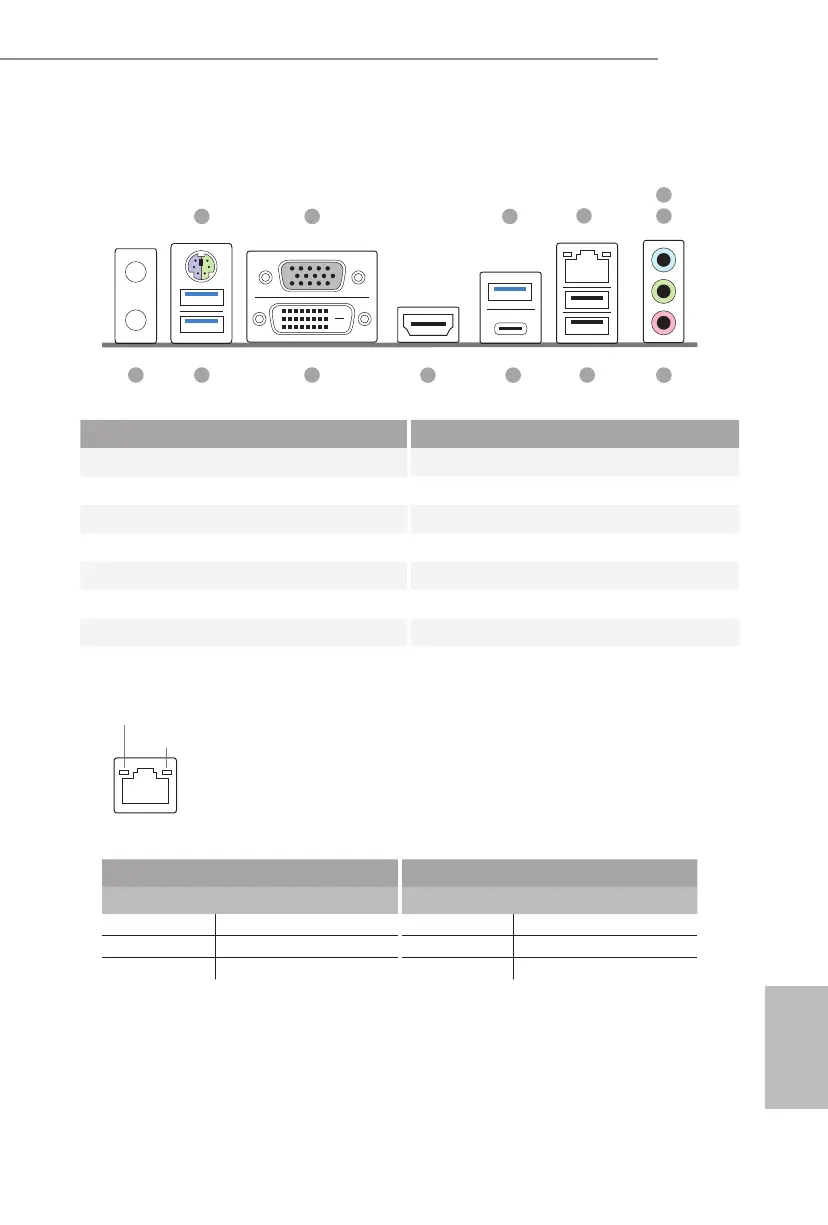

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 8 USB 2.0 Ports (USB_1_2)
2 D-Sub Port 9 USB 3.1 Gen2 Type-C Port (USB31_TC_1)
3 USB 3.1 Gen2 Type-A Port (USB31_TA_1) 10 HDMI Port
4 LAN RJ-45 Port* 11 DVI-D Port
5 Line In (Light Blue)** 12 USB 3.1 Gen1 Ports (USB3_1_2)
6 Front Speaker (Lime)** 13 Antenna Ports
7 Microphone (Pink)**

ASROCK B360 Pro4 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	M.2, SATA III
PCI Express x1 (Gen 3.x) slots	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC892
Certification	FCC, CE, ErP/EuP
Component for	PC
Motherboard chipset	Intel® B360
PC health monitoring	CPU, FAN, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	4-Way CrossFireX, CrossFireX
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	224 mm
Width	305 mm
