English
B460 Pro4

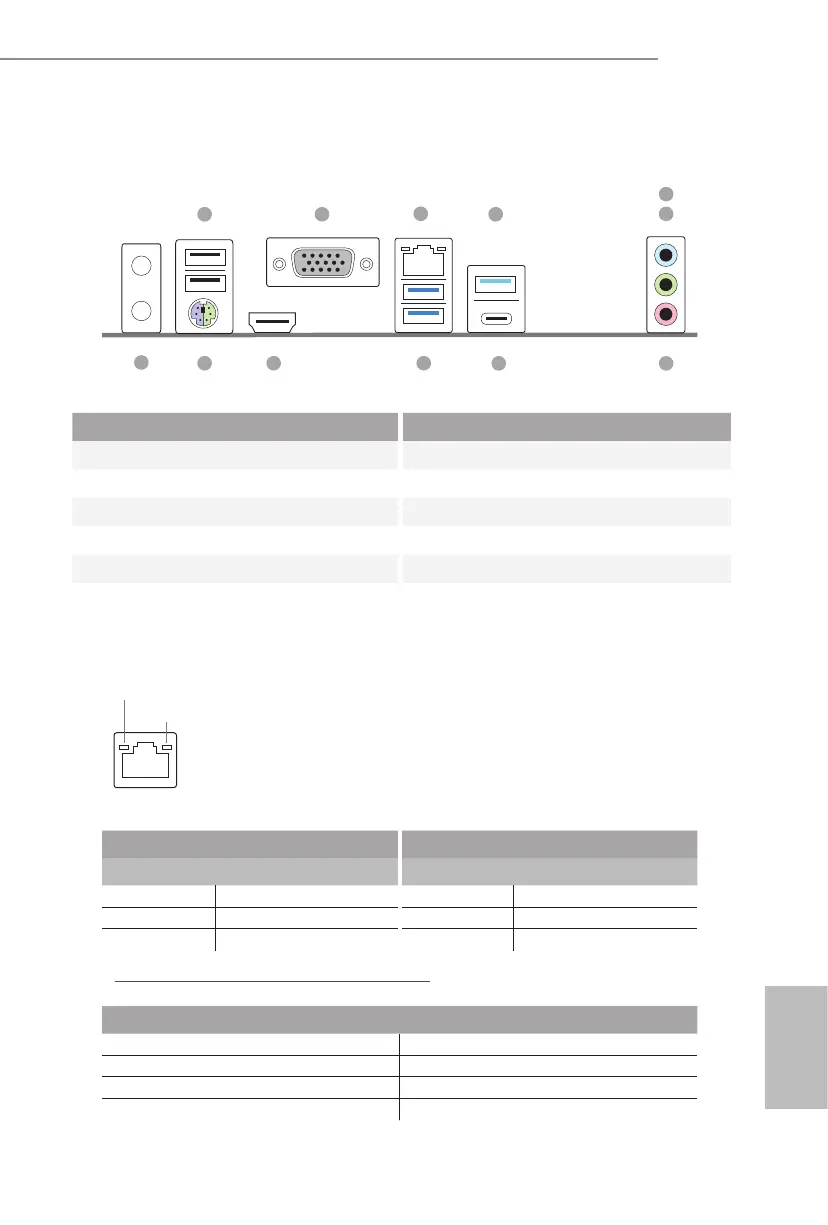

I/O Panel
1
11
9
810
3
4
7
6
5
2
12
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
ACT/LINK LED
SPEED LED
LAN Port
No. Description No. Description
1 USB 2.0 Ports (USB1_2) 7 Microphone (Pink)**
2 D-Sub Port 8 USB 3.2 Gen1 Type-C Port (USB3_TC_1)
3 LAN RJ-45 Port* 9 USB 3.2 Gen1 Ports (USB3_1_2)
4 USB 3.2 Gen1 Type-A Port (USB3_TA_1) 10 HDMI Port
5 Line In (Light Blue)** 11 PS/2 Mouse/Keyboard Port
6 Front Speaker (Lime)** 12 Antenna Bracket
