ASROCK B560 PRO4 - Page 28

20
English

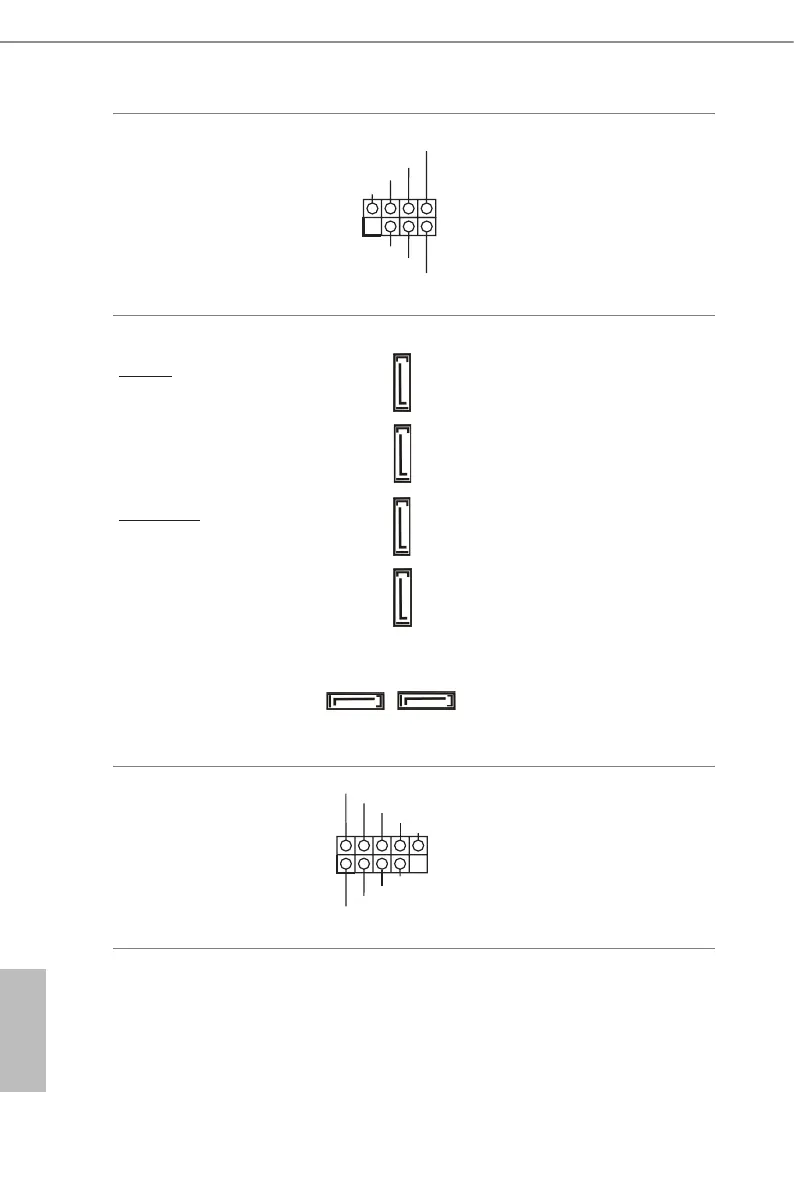

Chassis Intrusion and
Speaker Header
(7-pin SPK _CI1)
(see p.7, No. 25)
Please connect the
chassis intrusion and the
chassis speaker to this
header.
Serial ATA3 Connectors
Vertical:
(SATA3_0:
see p.7, No. 21)
(SATA3_1:
see p.7, No. 20)
Right-Angle:
(SATA3_2:
see p.7, No. 13)
(SATA3_3:
see p.7, No. 14)
(SATA3_4:
see p.7, No. 15)
(SATA3_5:
see p.7, No. 16)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* If M2_3 is occupied by
a SATA-type M.2 device,
SATA3_1 will be disabled.
USB 2.0 Header
(9-pin USB3_4)
(see p.7, No. 24)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
ere is one USB 2.0 header
on this motherboard.
is USB 2.0 header can
support two ports.
1
+5V
DUMMY
SIGNAL
GND
DUMMY
SPEAKER
DUMMY
SATA3_1
SATA3_0
SATA3_4
SATA3_5
SATA3_2
SATA3_3
