ASROCK B560 PRO4 - 2.10 M.2_SSD (NGFF) Module Installation Guide (M2_2)

31
English
B560 Pro4
2.10 M.2_SSD (NGFF) Module Installation Guide (M2_2)
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Ultra M.2
Socket (M2_2) supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3
x4 (32 Gb/s).

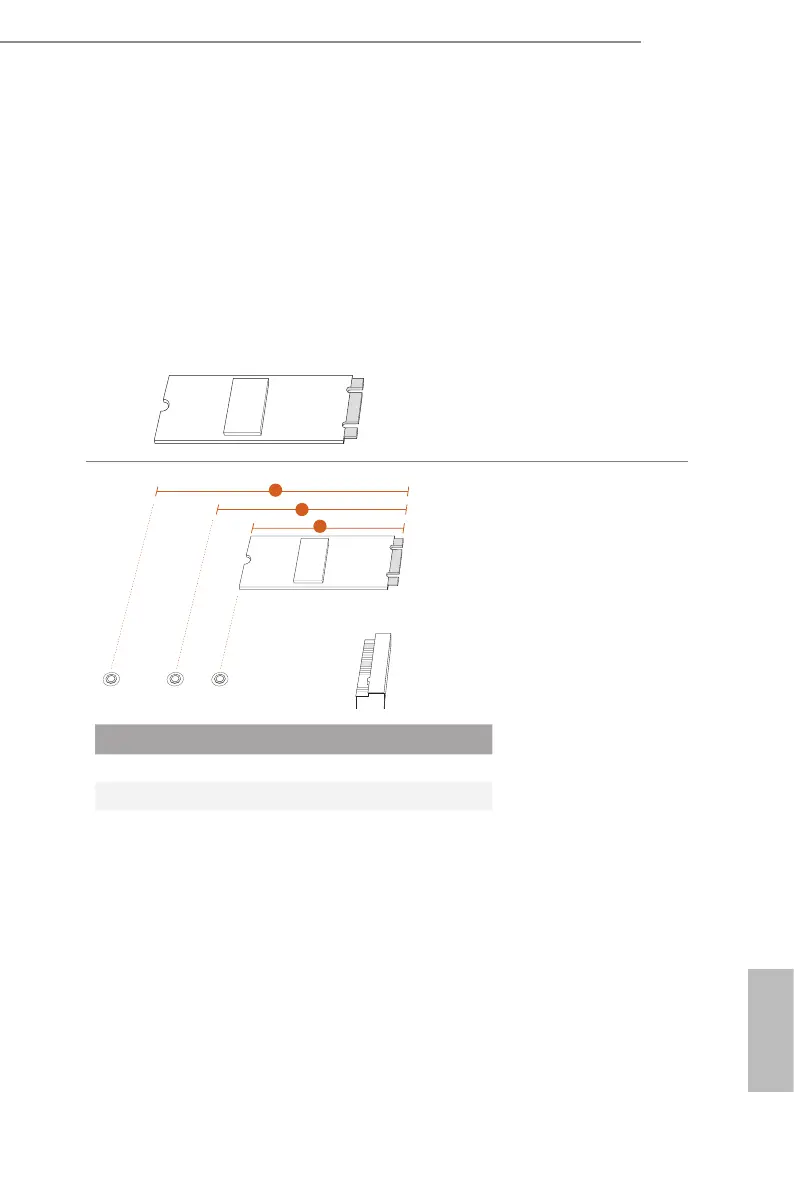

Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
1
2
3
ABC
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3
Nut Location A B C
PCB Length 4.2cm 6cm 8cm
Module Type Type2242 Type 2260 Type2280
