B650 PG Lightning WiFi
B650 PG Lightning

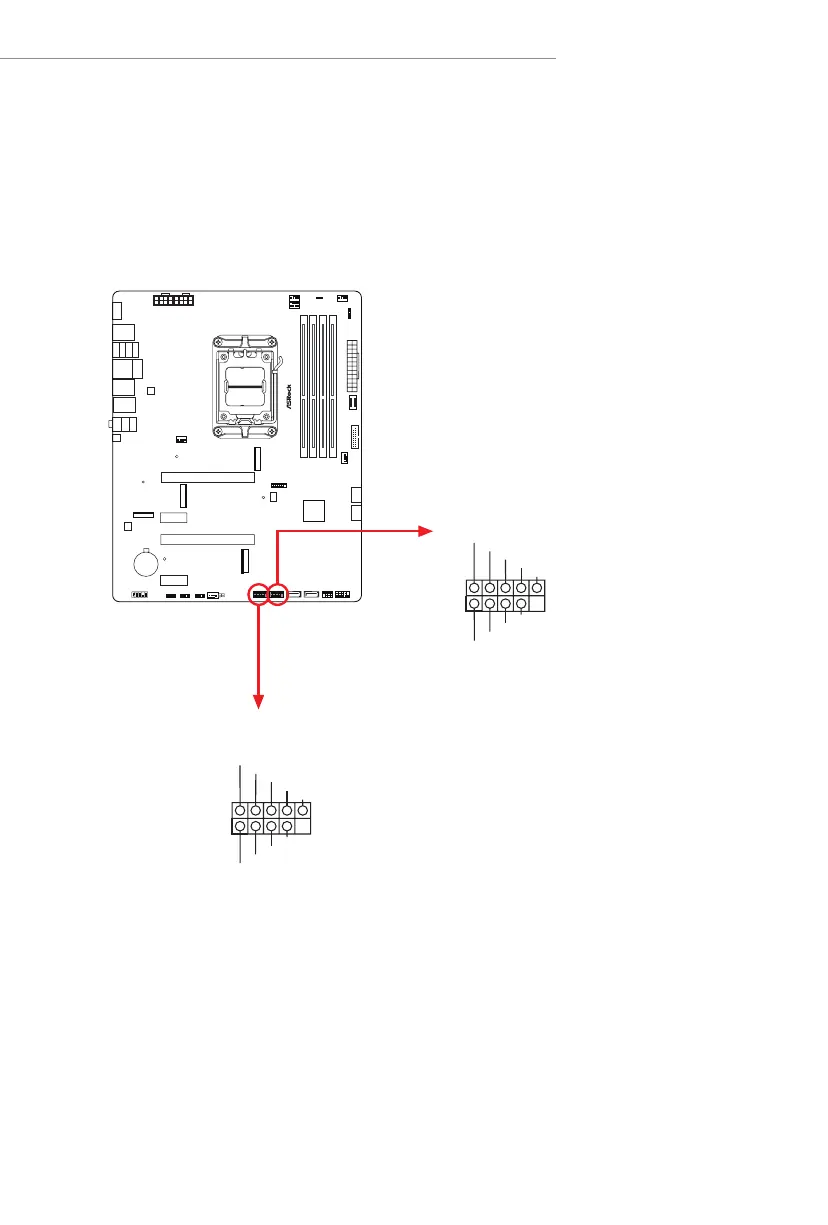

USB 2.0 Headers
(9-pin USB_5_6) (see p.6, 7, No. 22)
(9-pin USB_7_8) (see p.6, 7, No. 21)
ere are two headers on this motherboard. Each USB 2.0 header can support two
ports.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB_5_6
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB_7_8
