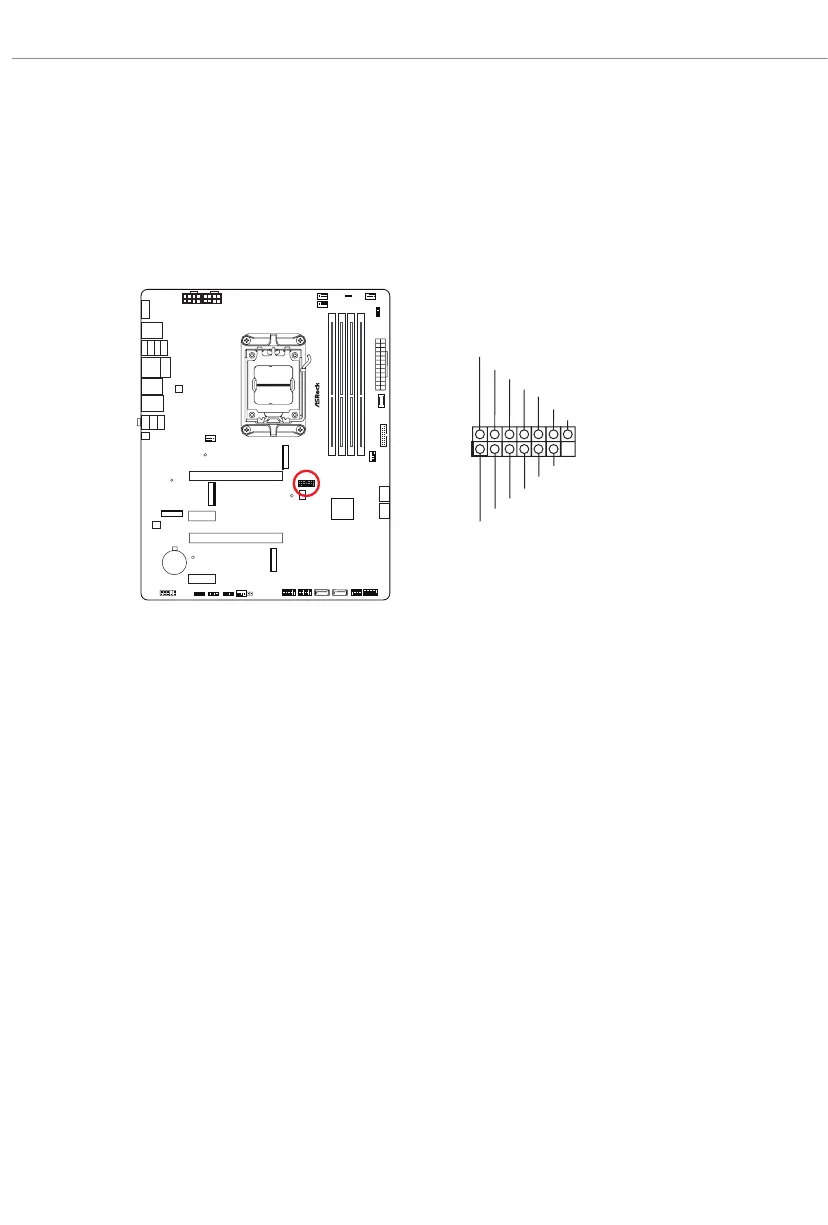

SPI TPM Header
(13-pin SPI_TPM_J1) (see p.6, 7, No. 14)
is connector supports SPI Trusted Platform Module (TPM) system, which can securely
store keys, digital certicates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
SPI_TPM_J1
1
SPI_DQ3
SPI_PWR
SPI_DQ2
SPI_CS0
Dummy
CLK
SPI_MISO
SPI_MOSI
GND
SPI_TPM_CS
#
RST#
RSMRST#
TPM_PIRQ
