54

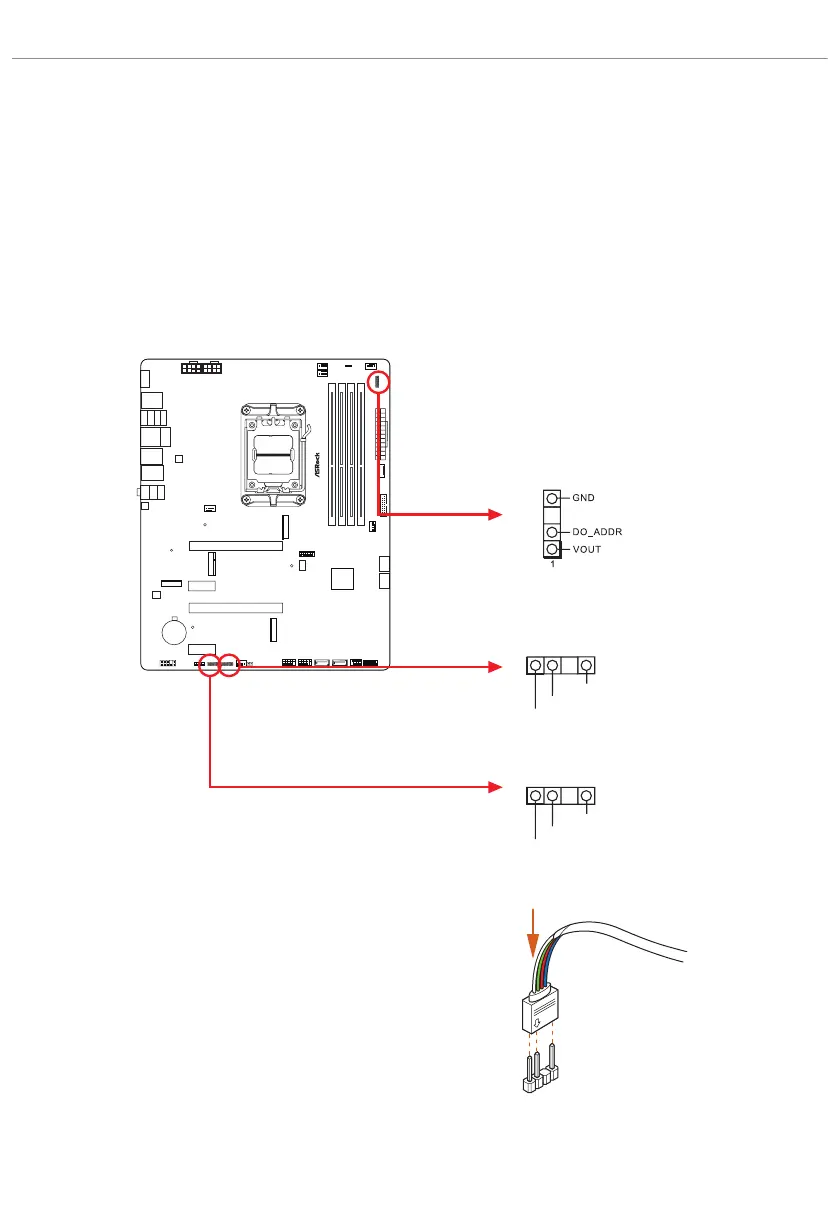

Addressable LED Headers
(3-pin ADDR _LED1) (see p.6, 7, No. 26)
(3-pin ADDR _LED2) (see p.6, 7, No. 9)
(3-pin ADDR _LED3) (see p.6, 7, No. 25)
ese headers are used to connect Addressable LED extension cables which allow users to
choose from various LED lighting eects.
Caution: Never install the Addressable LED cable in the wrong orientation; otherwise,
the cable may be damaged.
VOUT
DO_ADDR
GN
D
1
ADDR_LED1
VOUT
DO_ADDR
GN
D
1
ADDR_LED3
ADDR_LED2
1
Connect your Addressable RGB LED strips
to the Addressable LED Headers (ADDR_
LED1 / ADDR_LED2 / ADDR_LED3) on
the motherboard.
