Step 5
Before securing the M.2 heatsink,
make sure to align the notch on
the SSD to the stando on the
motherboard if you use a Type 2280
SSD module; otherwise, the SSD
module may be damaged.

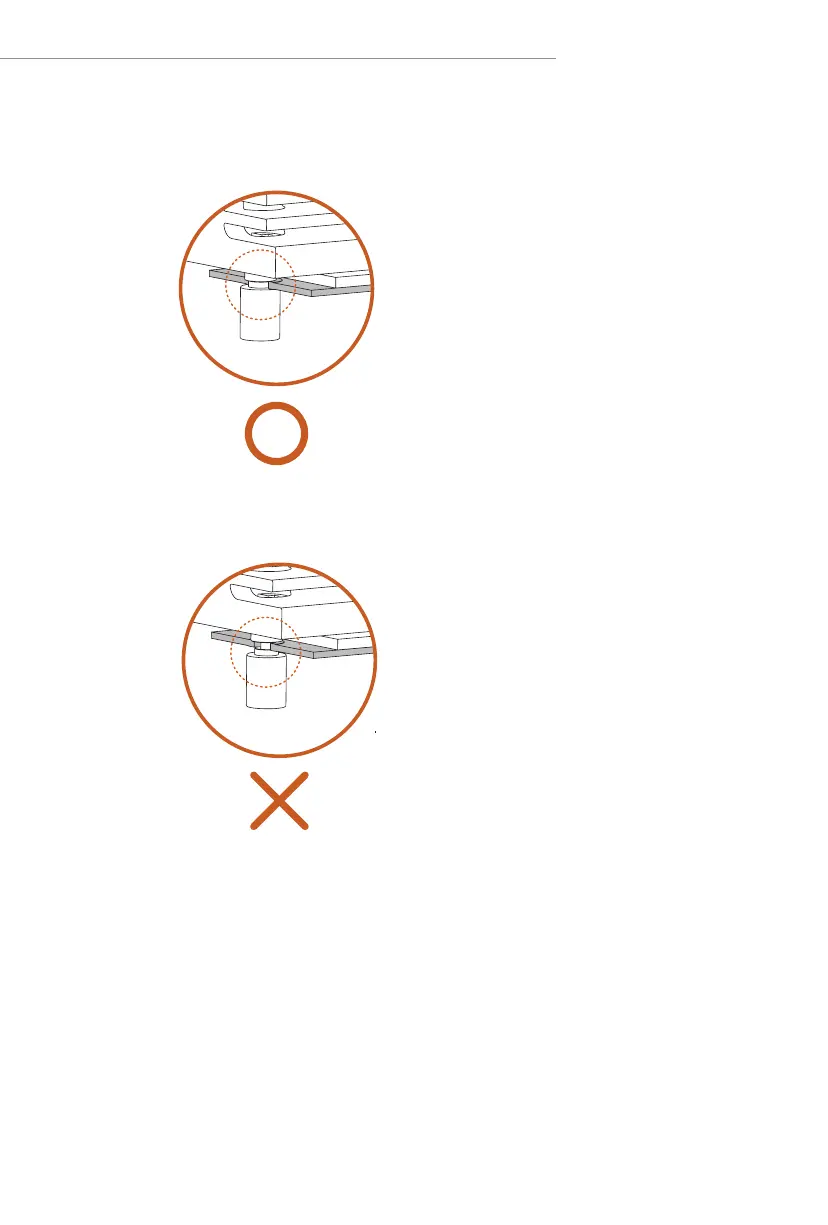

Correct Installation:
e SSD's PCB is in proper place, and
the M.2 heatsink can be screwed in.
Incorrect Installation:
e SSD's PCB sits between M.2 heatsink
and stando. Do not continue.
