2.18 M.2 SSD Module Installation Guide (M2_3)
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e M.2 Socket (M2_3, Key M) supports type 2260/2280 SATA3 6.0 Gb/s & PCIe
Gen3x2 (16 Gb/s) modes.
* M2_3 and SATA3_3_4 share lanes. If either one of them is in use, the other one will be
disabled.

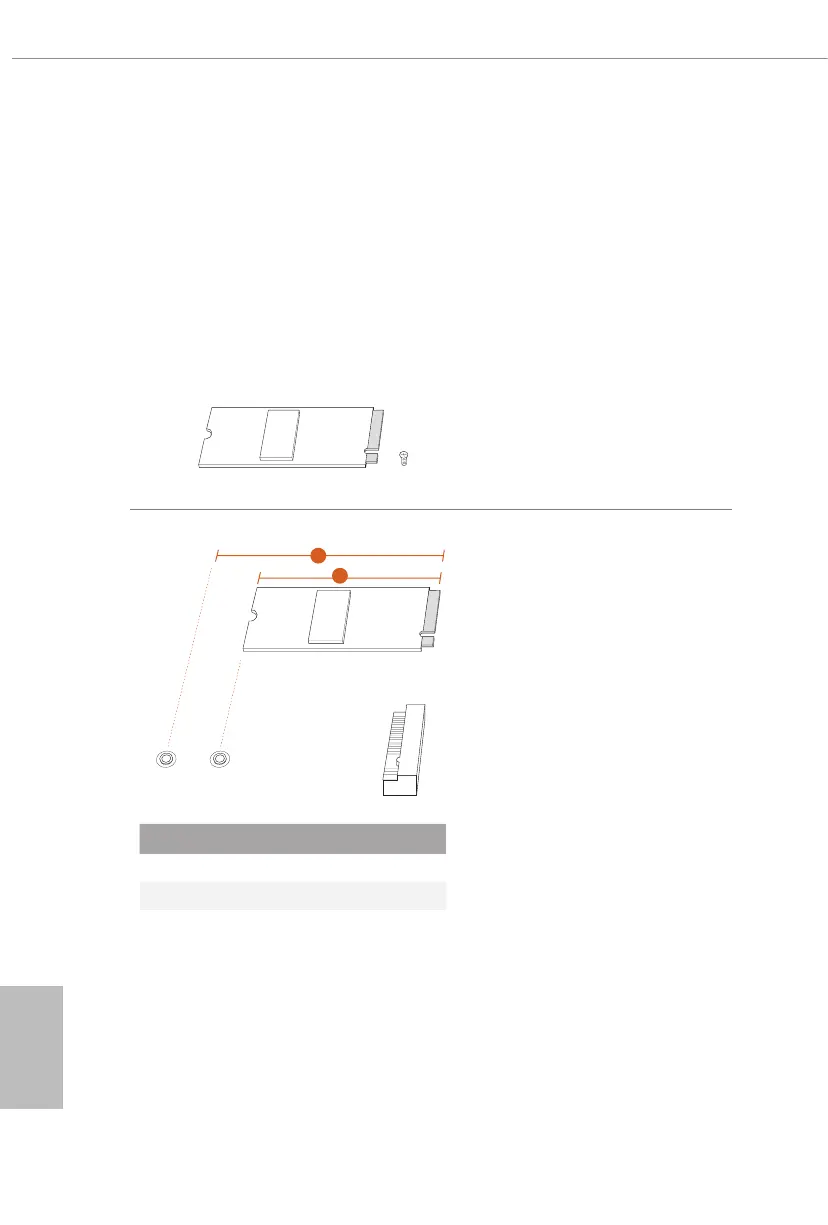

Installing the M.2 SSD Module
Step 1
Prepare a M.2 SSD module and the
screw.
1
2
AB
Step 2
Depending on the PCB type and
length of your M.2 SSD module, nd
the corresponding nut location to be
used.
No. 1 2
Nut Location A B
PCB Length 6cm 8cm
Module Type Type 2260 Type 2280
