ASROCK B650M-H/M.2+ - Page 40

English
35
B650M-H/M.2+

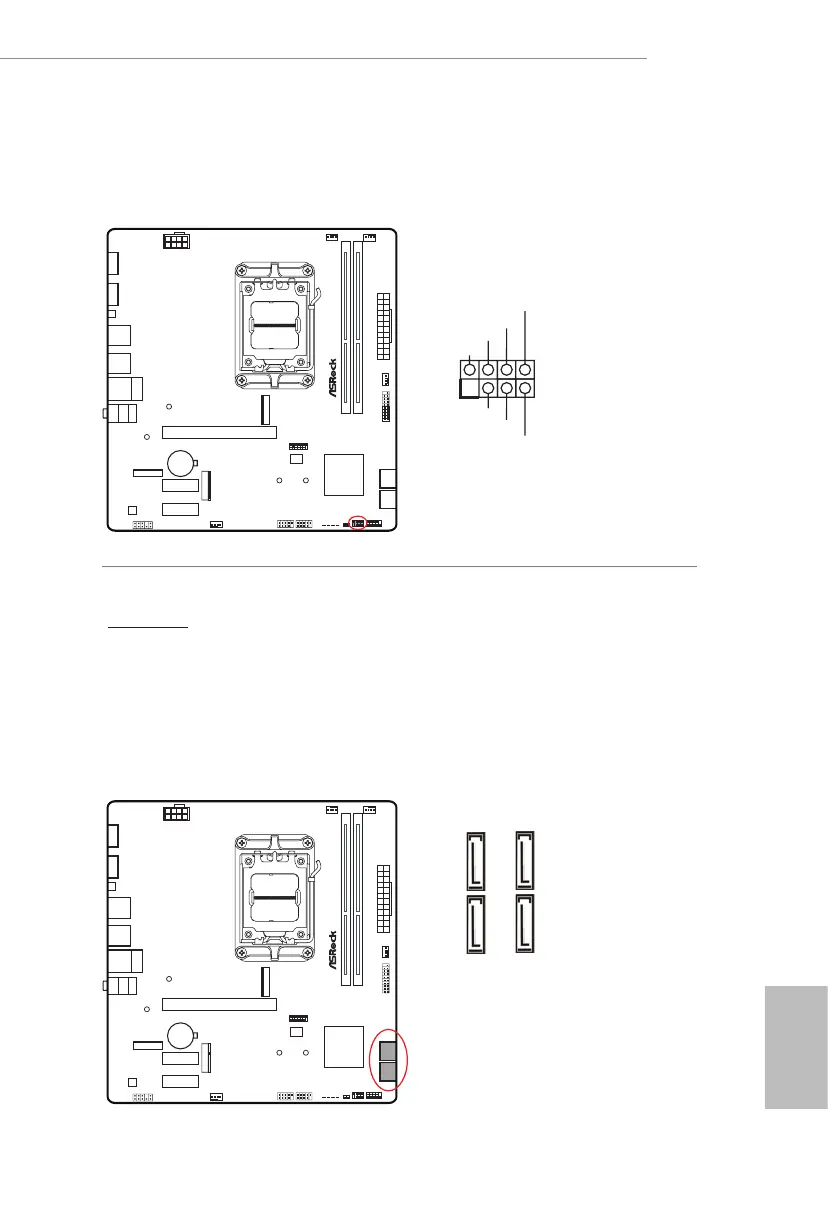

Power LED and Speaker Header
(7-pin SPK_PLED1) (see p.5, No. 12)
Please connect the chassis power LED and the chassis speaker to this header.
Serial ATA3 Connectors
Right Angle:
(SATA3_1) (see p.5, No. 9) (Lower)
(SATA3_2) (see p.5, No. 9) (Upper)
(SATA3_3) (see p.5, No. 10) (Lower)
(SATA3_4) (see p.5, No. 10) (Upper)
ese four SATA3 connectors support SATA data cables for internal storage
devices with up to 6.0 Gb/s data transfer rate.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
SPK_PLED1
SATA3_1
SATA3_2
SATA3_3
SATA3_4
