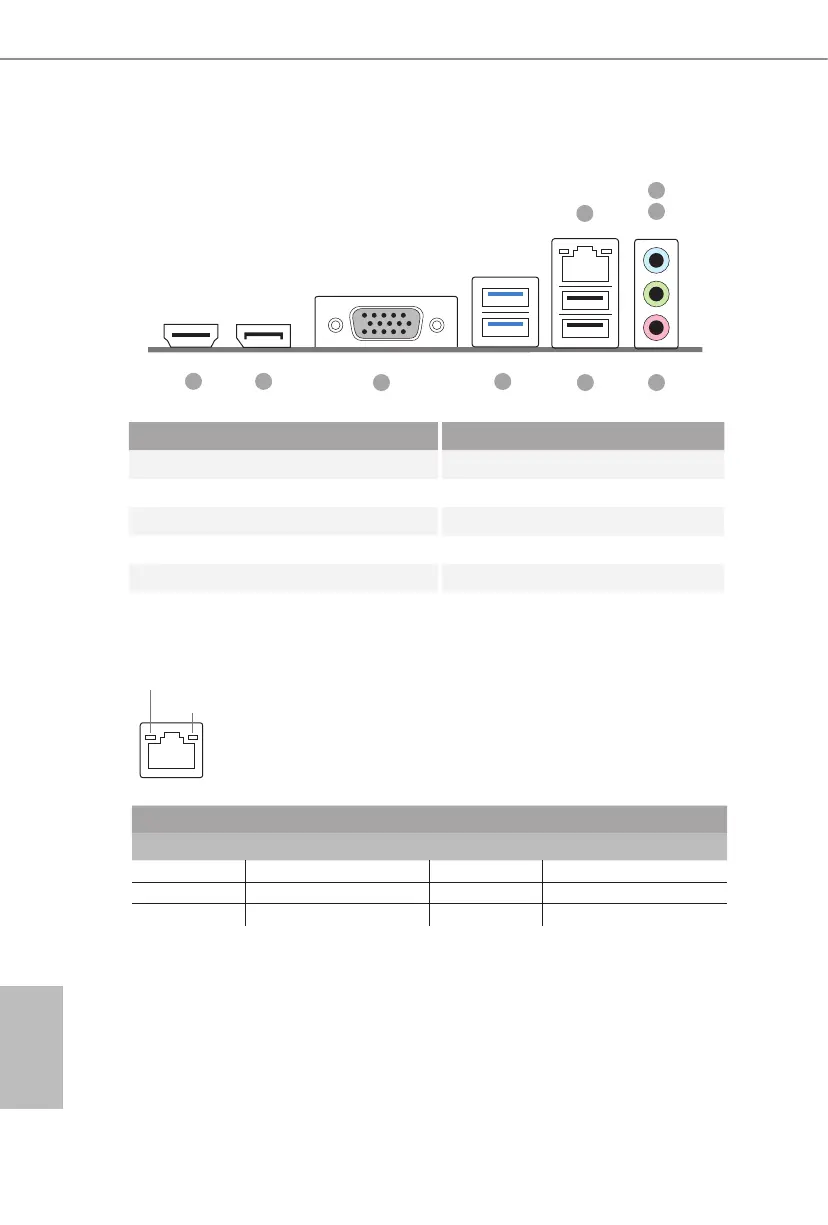

1.5 Rear Panel
No. Description No. Description
1 LAN RJ-45 Port* 6 USB 3.2 Gen1 Type-A Ports
2 Line In (Light Blue) (USB3_1_2)
3 Front Speaker (Lime) 7 D-Sub Port
4 Microphone (Pink) 8 DisplayPort 1.4
5 USB 2.0 Ports (USB12) 9 HDMI Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
89
7 5
1
6
4
3
2
