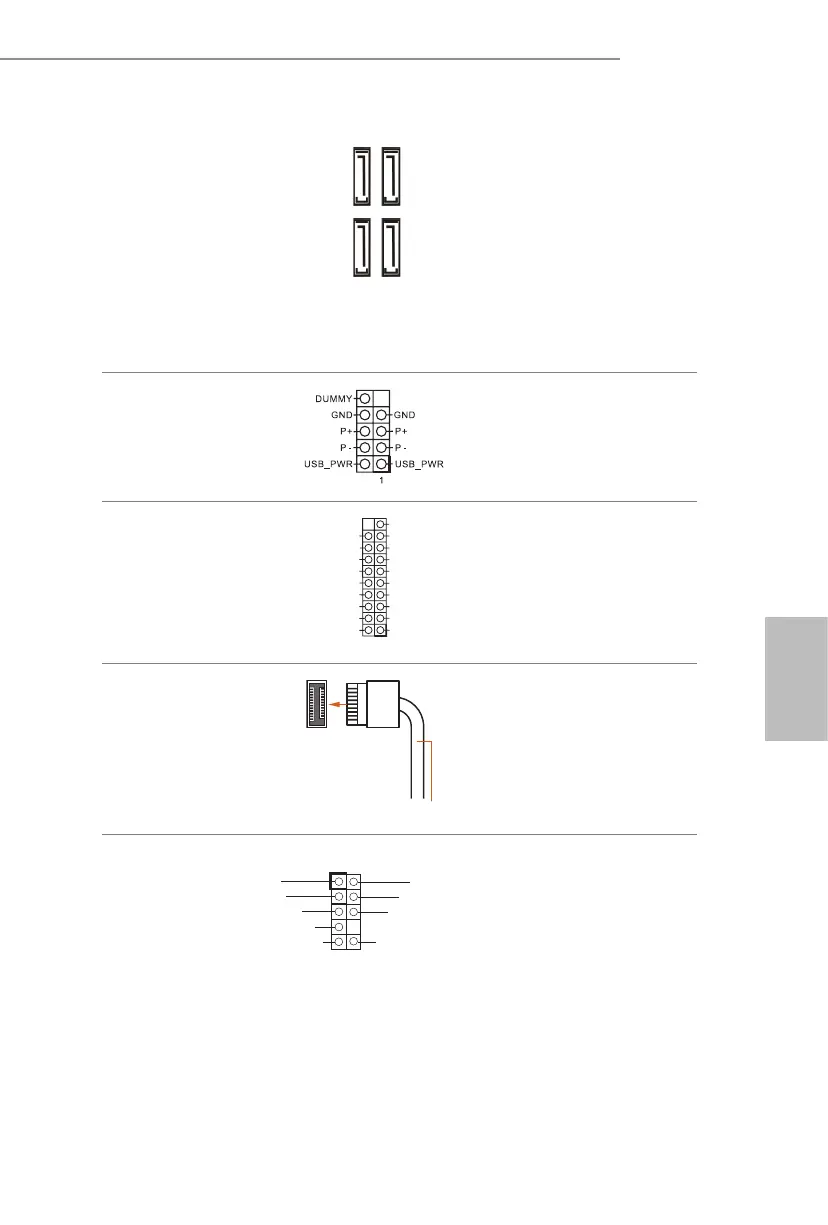

87
B660M-IT X/ac
Português
Conectores série ATA3
(SATA3_0:
ver p.1, N.º 11)
(SATA3_1:
ver p.1, N.º 10)
(SATA3_2:
ver p.1, N.º 13)
(SATA3_3:
ver p.1, N.º 12)
SATA3_3
SATA3_2
SATA3_1
SATA3_0
Estes quatro conectores SATA3
suportam cabos de dados
SATA para dispositivos de
armazenamento interno com uma
taxa de transferência de dados de
até 6,0 Gb/s.
* Se M2_1 é ocupado por um
dispositivo tipo M.2 SATA,
SATA3_0 será desativado.
Suporte USB 2.0
(USB_3_4 de 9 pinos)
(ver p.1, N.º 15)
Há um cabeçote USB2.0 nesta
placa-mãe. Cada suporte USB 2.0
pode ter duas portas.
Plataforma USB 3.2 Gen1
(USB3_3_4 de 19 pinos)
(ver p.1, N.º 9)
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
Há um cabeçote nesta placa-mãe.
Este suporte USB 3.2 Gen1 pode
suportar duas portas.
Painel Frontal Cabeçote
USB 3.2 Gen1 Tipo C
(F_USB31_TC_1 de
20 pinos)
(ver p.1, N.º 8)
USB Type-C Cable
Há um Painel Frontal Cabeçote
USB 3.2 Gen1 Tipo C nesta placa
mãe. Este cabeçote é utilizado
para conectar um módulo USB 3.2
Gen1 a portas adicionais USB 3.2
Gen1.
Suporte de áudio do
painel frontal
(HD_AUDIO1 de
9 pinos)
(ver p.1, N.º 18)
Este suporte destina-se à conexão
dos dispositivos de áudio no
painel de áudio frontal.
J_SENS
E
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
