ASROCK B75M-GL R2.0 Quick Installation Guide

3
ASRock B75M-GL R2.0 Motherboard
English

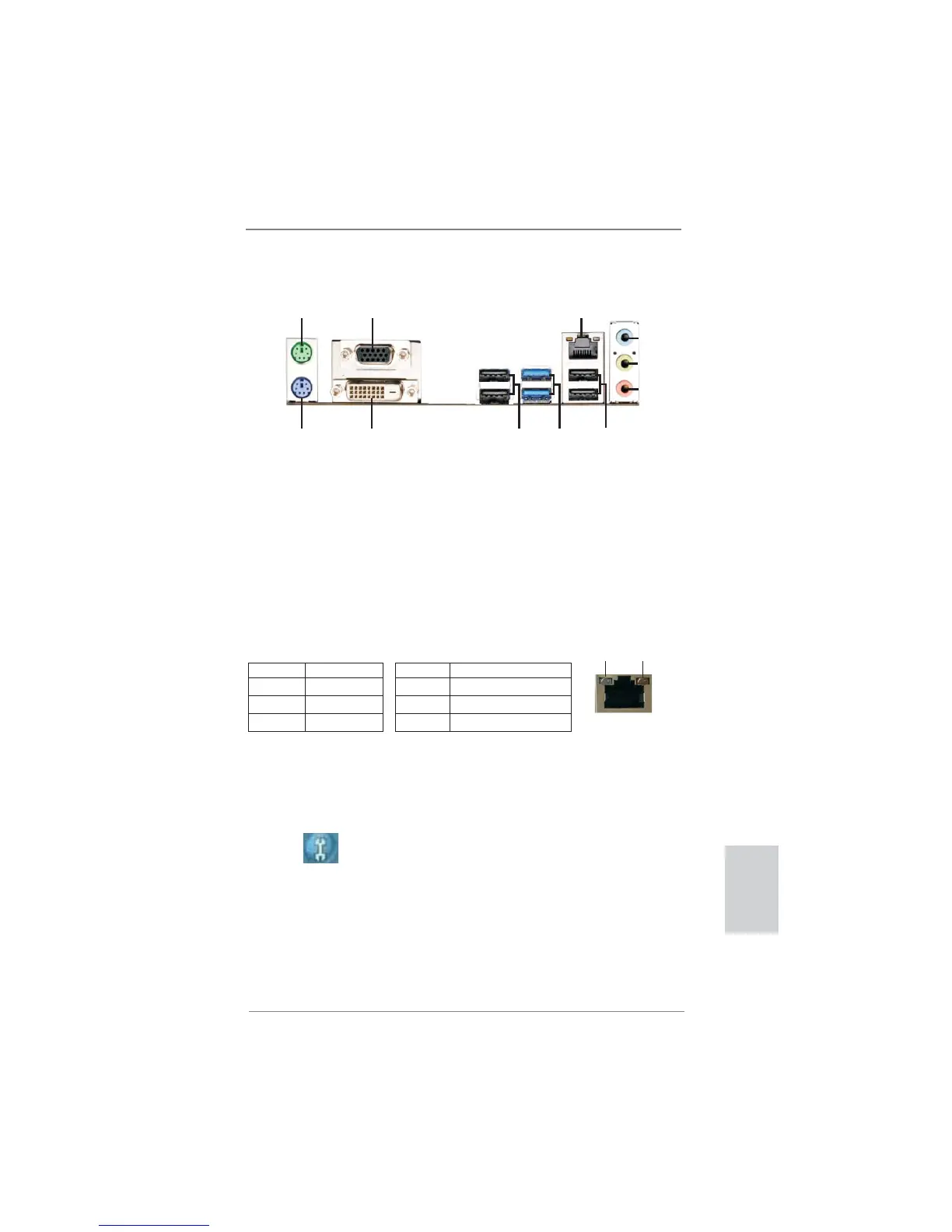

I/O Panel
* There is one LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 PS/2 Mouse Port (Green)
2 D-Sub Port (VGA1)
* 3 LAN RJ-45 Port
4 Line In (Light Blue)
** 5 Front Speaker (Lime)
6 Microphone (Pink)
7 USB 2.0 Ports (USB4_5)
8 USB 3.0 Ports (USB3_0_1)
9 USB 3.0 Ports (USB_2_3)
10 DVI-D Port (DVI1)
11 PS/2 Keyboard Port (Purple)
ACT/LINK
LED
SPEED
LED
LAN Port
1
2
3
4
5
6
7
10
11
89
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows
®
XP:
After restarting your computer, you will fi nd “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows
®
7 / Vista
TM
:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Confi guration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.

ASROCK B75M-GL R2.0 Specifications

General

Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
CPU fan connector	Yes
USB 2.0 connectors	-
Number of SATA II connectors	5
S/PDIF in connector	No
Internal memory type	DDR3
eSATA/USB 2.0 ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Certification	FCC, CE, WHQL ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Supported storage drive interfaces	SATA III
Maximum resolution	2048 x 1536 pixels
PCI Express slots version	2.0, 3.0
LAN controller	Realtek RTL8111E
Networking features	LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	213 mm
Width	244 mm
