ASROCK B75M-ITX Quick Installation Guide

2
ASRock B75M-ITX Motherboard
English

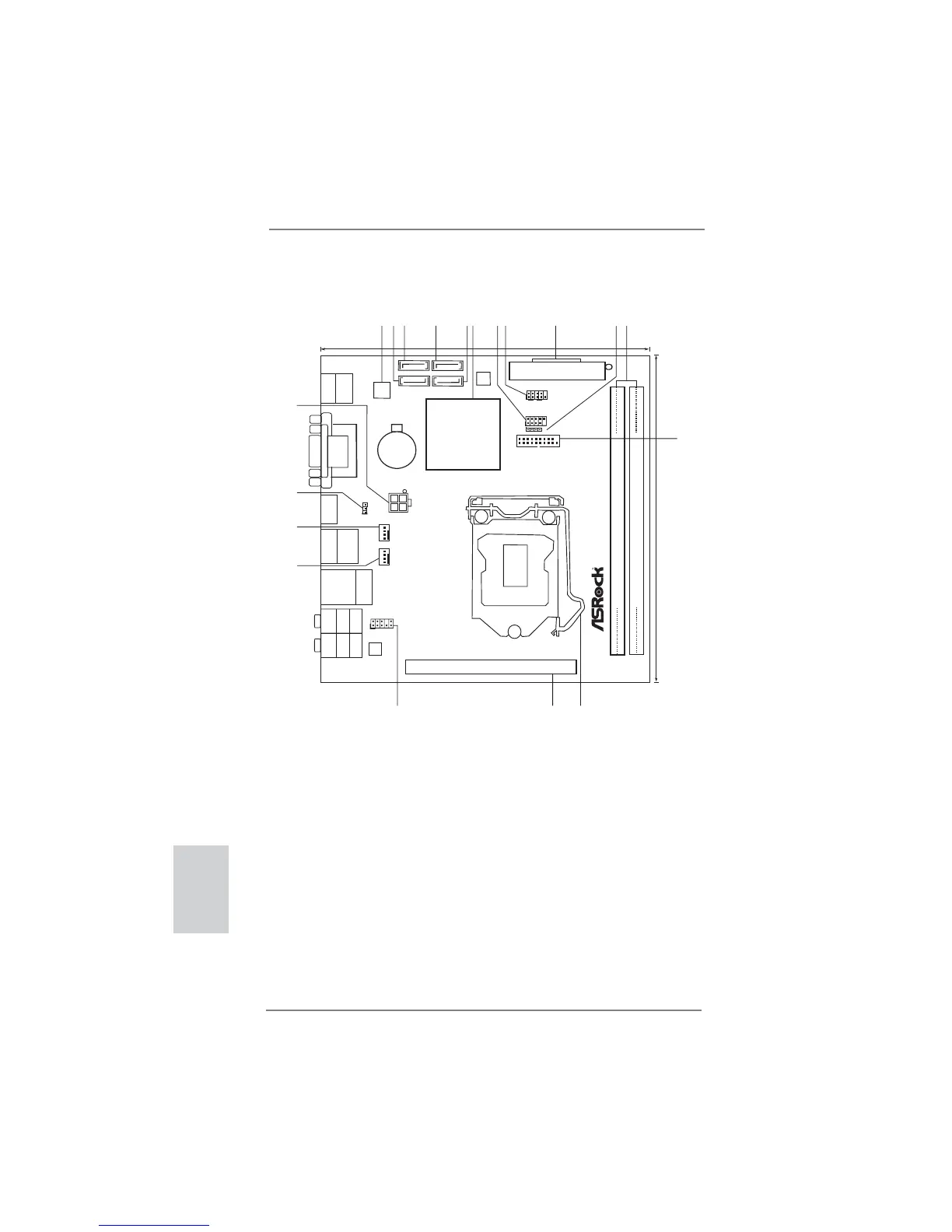

Motherboard Layout
Intel
B75
B75M-ITX
Front USB 3.0
64Mb
BIOS
CMOS
Battery
17.0cm (6.7 in)
17.0cm (6.7 in)
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
X
Fast RAM
PCI Express 3.0
PCIE1
Super
I/O
USB 2.0
T: US B0
B: USB1
PS2
Keyboard
VGA1
DVI1
HDMI1
USB 2.0
T: USB 2
B: USB3
ESATA1
Top:
RJ-45
USB 3.0
T: U S B 1
B: USB2
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
AUDIO
CODEC
1
HD_AUDIO1
RoHS
DDR3
USB4_5
1
CIR1
1
USB3_3_4
CHA_FAN1
CPU_FAN1
CLRCMOS1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
SATA_1
SATA_0
SATA_3
SATA_2
ATX12V1
1
2
3
45
6
11
12
13
14
10
7
8
9
15
16
17
18
19
1 SPI Flash Memory (64Mb)
2 SATA2 Connector (SATA_1, Black)
3 SATA3 Connector (SATA_0, Gray)
4 SATA2 Connector (SATA_2, Black)
5 SATA2 Connector (SATA_3, Black)
6 Intel B75 Chipset
7 USB 2.0 Header (USB4_5, Black)
8 System Panel Header (PANEL1, Black)
9 ATX Power Connector (ATXPWR1)
10 Consumer Infrared Module Header
(CIR1, Gray)
11 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
12 USB 3.0 Header (USB3_3_4, Black)
13 1155-Pin CPU Socket
14 PCI Express 3.0 x16 Slot (PCIE1, Black)
15 Front Panel Audio Header
(HD_AUDIO1, Black)
16 CPU Fan Connector (CPU_FAN1)
17 Chassis Fan Connector (CHA_FAN1)
18 Clear CMOS Jumper (CLRCMOS1)
19 ATX 12V Power Connector (ATX12V1)

ASROCK B75M-ITX Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	3
Number of Parallel ATA connectors	0
HDMI version	1.4a
Headphone outputs	5
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP Ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Compatible operating systems	Windows 7, Vista, XP 32/64-bit
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1760 MB
Parallel processing technology support	Not supported
PCI Express slots version	3.0
PCI Express configurations	1x16
LAN controller	Realtek RTL8111E
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
