B760M PG Lightning

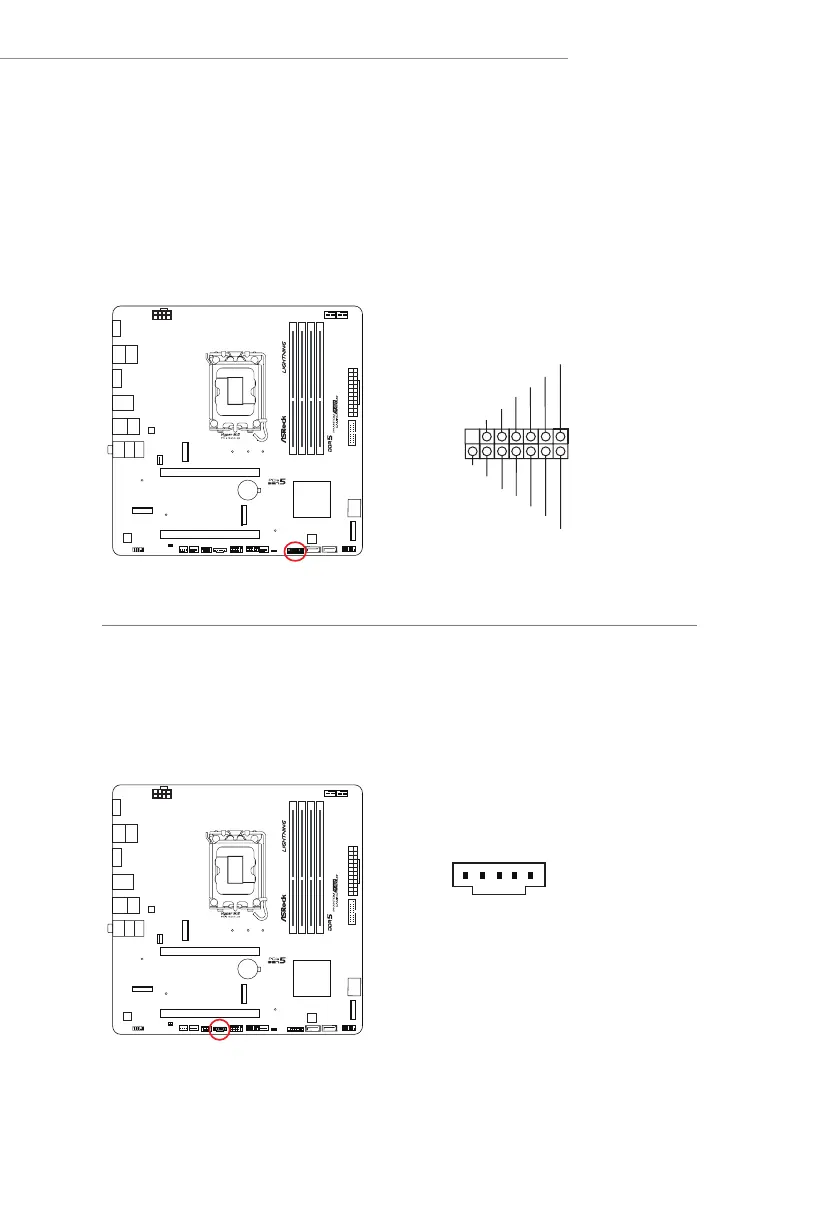

SPI TPM Header
(13-pin SPI_TPM_J1) (see p.6, No. 13)
is connector supports SPI Trusted Platform Module (TPM) system, which can securely
store keys, digital certicates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
B7 6 0M P G
underbolt AIC Connector
(5-pin TB1) (see p.6, No. 18)
Please connect a underbolt™ add-in card (AIC) to the underbolt AIC connector via
the GPIO cable.
*Please install the underbolt™ AIC card to PCIE2 (default slot).
B7 6 0M P G
1
SPI_DQ3
SPI_PWR
SPI_DQ2
SPI_CS0
Dummy
CLK
SPI_MISO
SPI_MOSI
GND
SPI_TPM_CS
#
RST#
RSMRST#
TPM_PIRQ
SPI_TPM_J1
1
TB1
