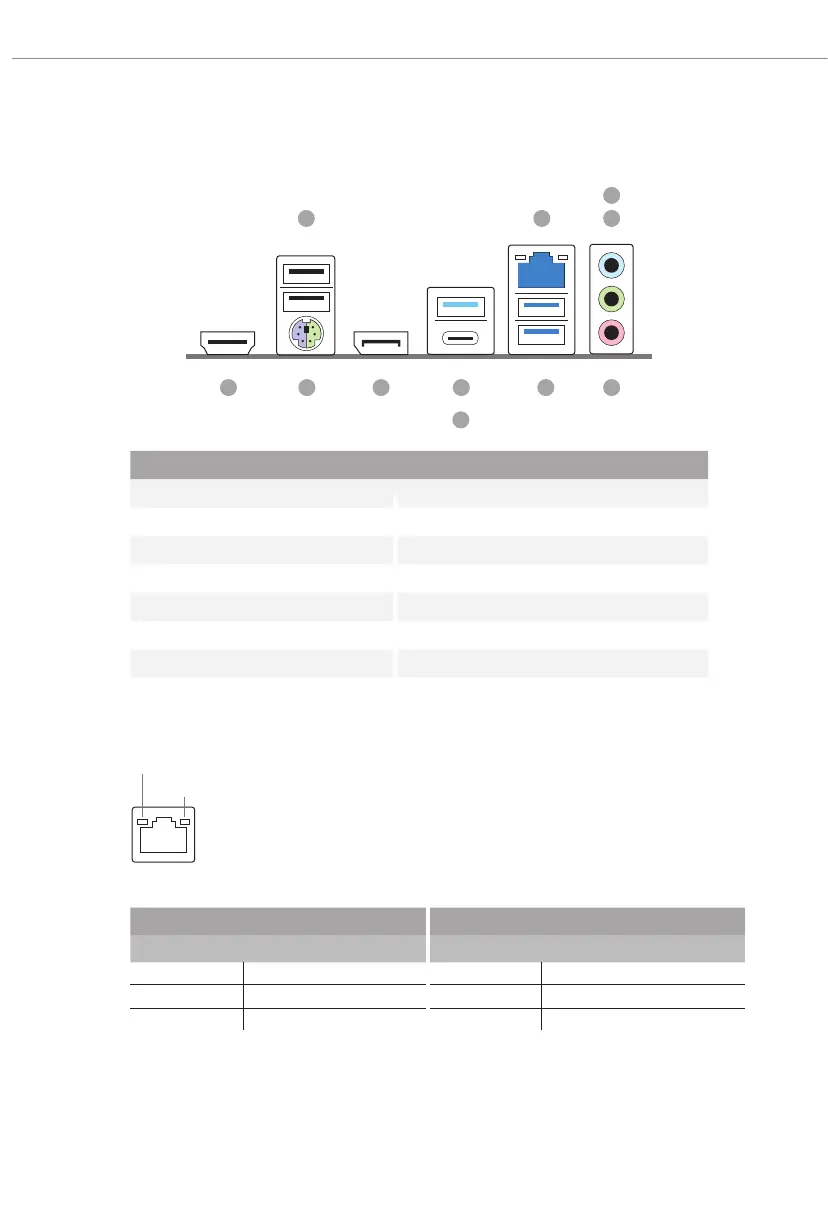

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB_12) 7 USB 3.2 Gen1 Type-A Port
2 2.5G LAN RJ-45 Port* (USB32_1)
3 Line In (Light Blue)** 8 USB 3.2 Gen1 Type-C Port
4 Front Speaker (Lime)** (USB32_TC1)
5 Microphone (Pink)** 9 DisplayPort 1.4
6 USB 3.2 Gen1 Type-A Ports 10 PS/2 Mouse/Keyboard Port
(USB32_23) 11 HDMI Port
569
11
42
3
10
1
8
7
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
