B760M PG Lightning
2.15 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated
WiFi/BT) Installation Guide
e M.2 is a small size and versatile card edge connector that aims to replace mPCIe and
mSATA. e M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and
Intel® CNVi (Integrated WiFi/BT).
* e M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module or Intel® CNVi (Integrated WiFi/BT)

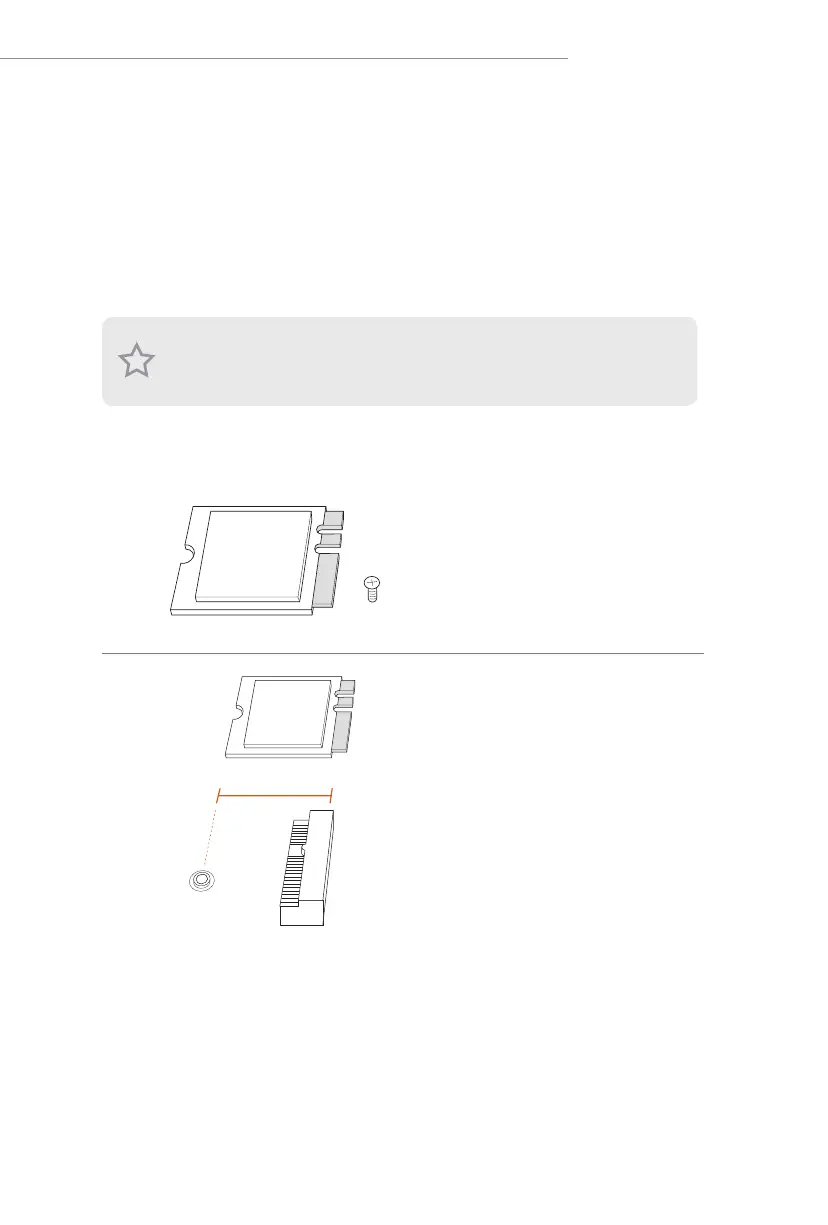

Step 1
Prepare a type 2230 WiFi/BT
PCIe WiFi module or Intel® CNVi
(Integrated WiFi/BT) and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
Before you install Intel® Integrated Connectivity (CNVi) module, be sure to turn o the AC
power.
