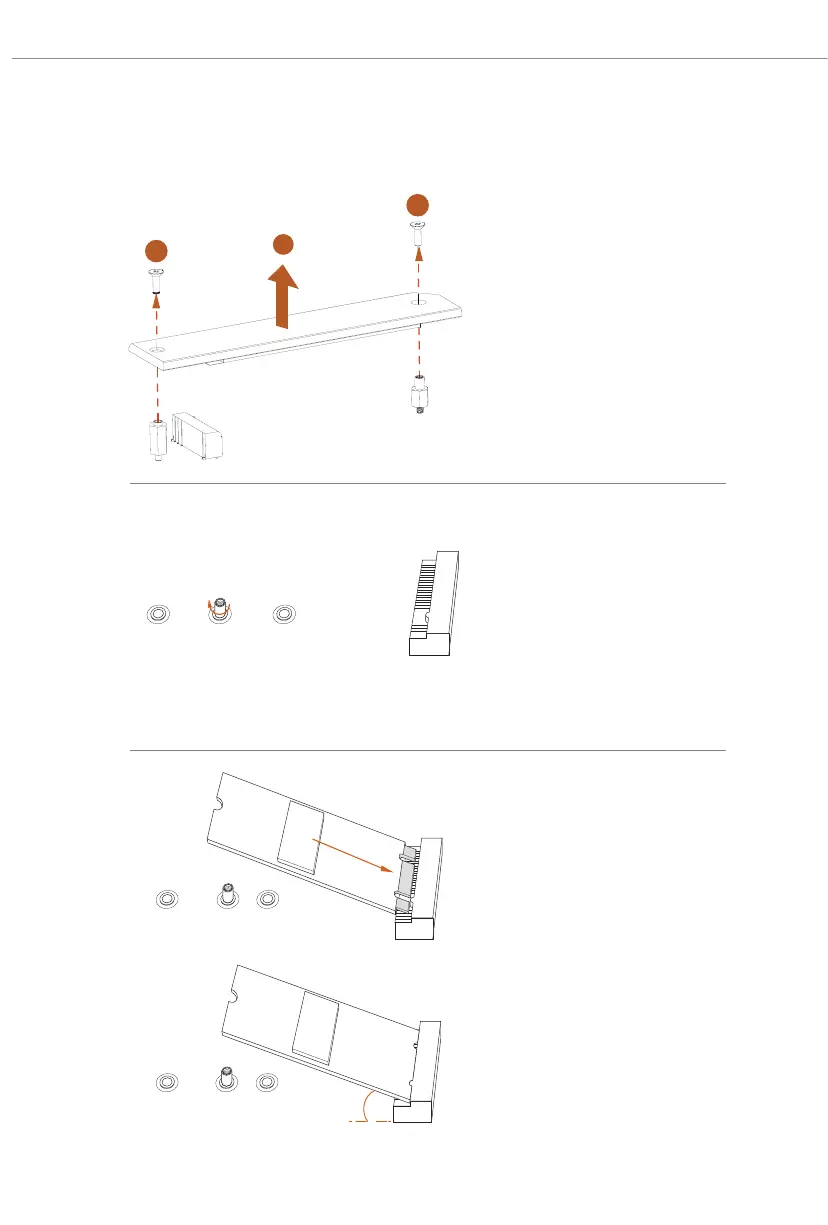

Step 3
Before installing a M.2 SSD module,
please loosen the screws to remove
the M.2 heatsink.
*Please remove the protective lms
on the bottom side of the M.2
heatsink before you install a M.2
SSD module.
Step 4
Peel o the yellow protective lm
on the nut to be used. Prepare the
M.2 stando that comes with the
package, and tighten the stando
into the desired nut location on the
motherboard. Skip
Step 4 if your M.2 SSD module is
Type 2280.
Step 5
Align and gently insert the M.2 SSD
module into the M.2 slot. Please
be aware that the M.2 SSD module
only ts in one orientation.
