ASROCK B760M PG RIPTIDE - Page 37

English
33
B760M PG Riptide

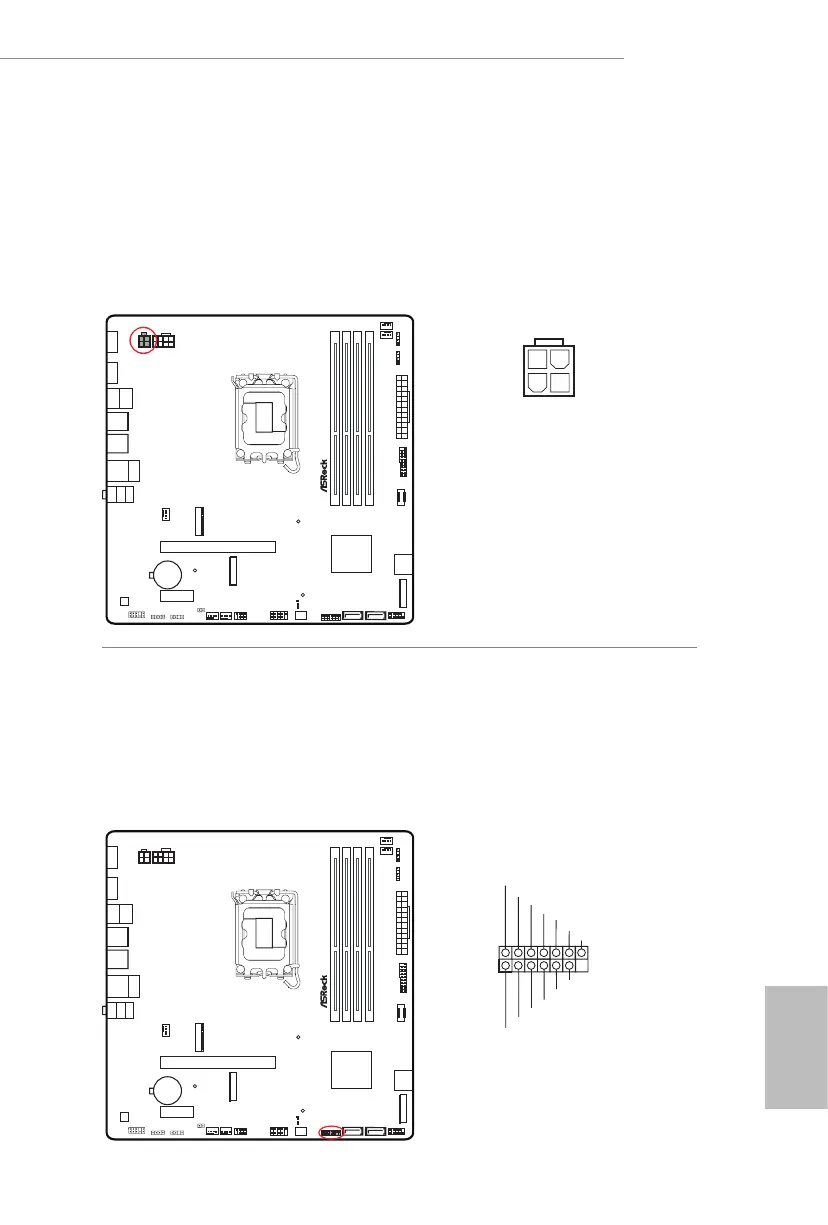

ATX 12V Power Connector
(4-pin ATX12V2) (see p.6, No. 1)
Please connect an ATX 12V power supply to this connector.
*e power supply plug ts into this connector in only one orientation.
*Connecting an ATX 12V 4-pin cable to ATX12V2 is optional.
*For advanced overclocking we suggest using this connector together with
ATX12V1.
SPI TPM Header
(13-pin SPI_TPM_J1) (see p.6, No. 16)
is connector supports SPI Trusted Platform Module (TPM) system, which can
securely store keys, digital certicates, passwords, and data. A TPM system also
helps enhance network security, protects digital identities, and ensures platform
integrity.
SPI_TPM_J1
1
SPI _ DQ3
SPI _ PWR
SPI _ DQ2
SPI _ CS0
Dum m y
CLK
SPI _ MISO
SPI _ MOSI
GND
SPI _ TPM_CS #
RST #
RSM R ST#
TPM _ PIRQ
ATX12V2
