26 27
English

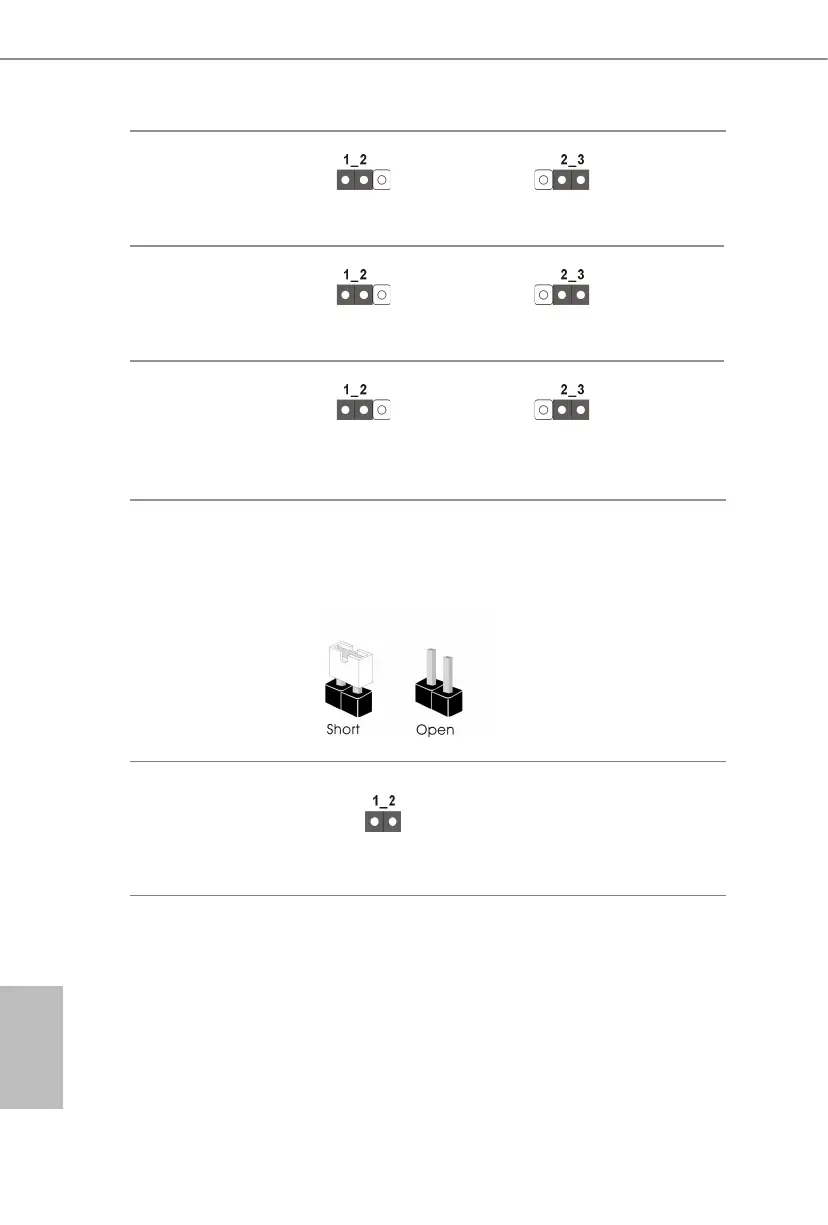

BIOS Recovery Jumper
(3-pin BIOS _ RECOVERY1)
(see p.6, No. 45)
Normal Mode (Default)
Recover BIOS
ESPI/LPC Selection Jumper
(3-pin ESPI_ LPC _ SEL1)
(see p.6, No. 54)
ESPI (Default)
LPC
ESPI Flash Sharing Jumper
(3-pin ESPI_SHARE)
(see p.6, No. 42)
Master ESPI Flash Sharing
(Default)
Slave ESPI Flash Sharing
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
BIOS Swap Override
Jumper
(ESPI_MODE1)
(see p.6, No. 52)
Open: Disable Override (Default)
Short: Enable Override
2-pin Jumper
