ASRock ConRoe1333-D667 Motherboard

EnglishEnglish

English

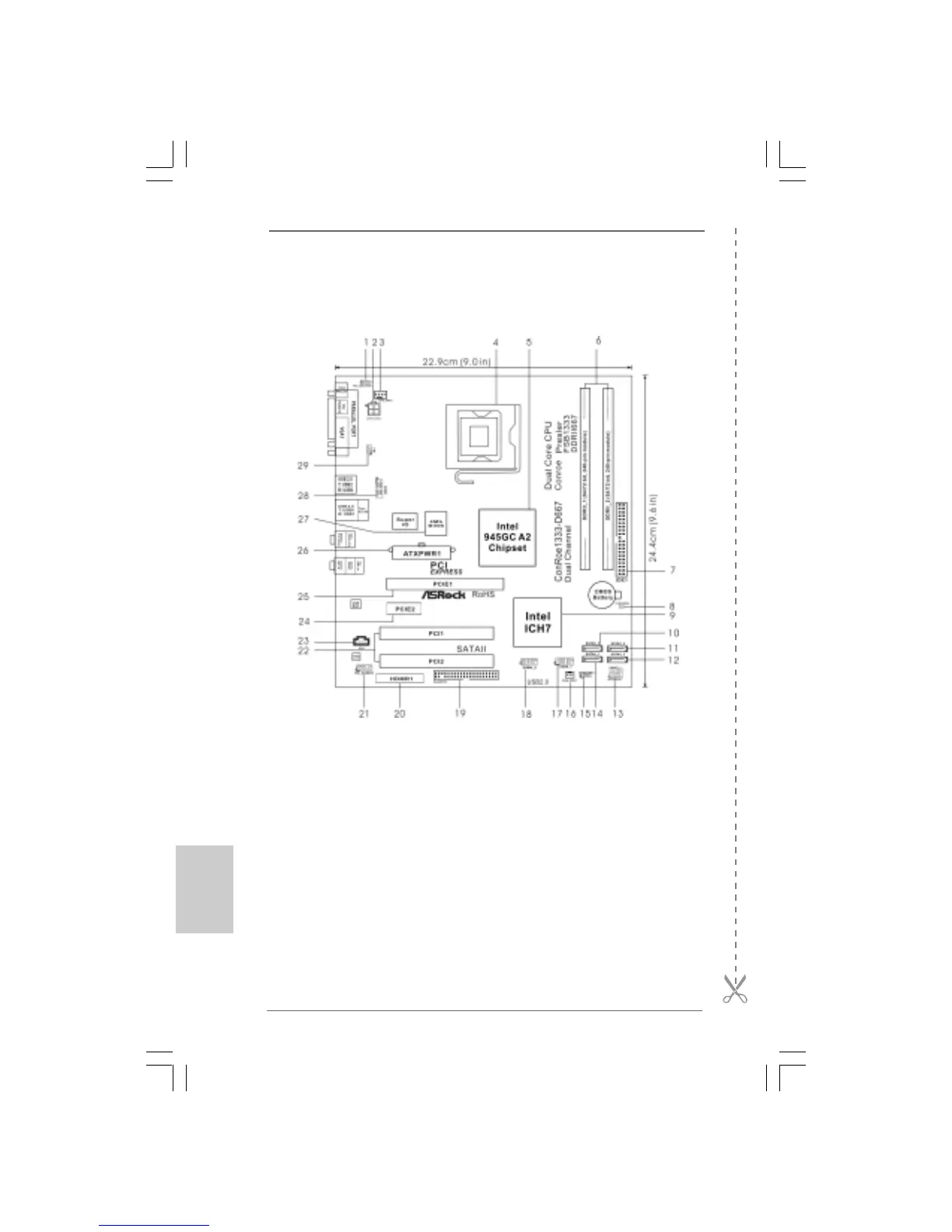

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 16 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 17 USB 2.0 Header (USB6_7, Blue)

3 CPU Fan Connector (CPU_FAN1) 18 USB 2.0 Header (USB4_5, Blue)

4 775-Pin CPU Socket 19 Floppy Connector (FLOPPY1)

5 North Bridge Controller 20 HDMR Slot (HDMR1)

6 2 x 240-pin DDR2 DIMM Slots 21 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 22 PCI Slots (PCI1- 2)

7 IDE1 Connector (IDE1, Blue) 23 Internal Audio Connector: CD1 (Black)

8 Clear CMOS Jumper (CLRCMOS1) 24 PCI Express x1 Slot (PCIE2)

9 South Bridge Controller 25 PCI Express x16 Slot (PCIE1)

10 Third SATAII Connector (SATAII_3; Orange) 26 ATX Power Connector (ATXPWR1)

11 Fourth SATAII Connector (SATAII_4; Orange) 27 BIOS FWH Chip

12 Secondary SATAII Connector (SATAII_2; Red) 28 Serial Port Connector (COM1)

13 System Panel Header (PANEL1) 29 DeskExpress Hot Plug Detection Header

14 Primary SATAII Connector (SATAII_1; Red) (IR1)

15 Chassis Speaker Header (SPEAKER 1)
